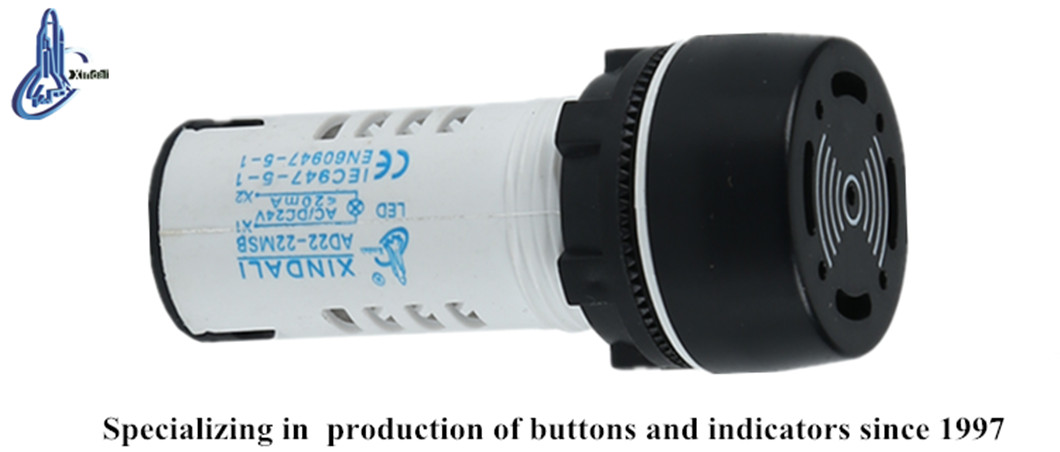

AD22-22MFB Small Electronic Yueqing Xindali Indicator Light with Buzzer
Inquire NowDescription
The AD22-22MFB Small Electronic Yueqing Xindali Indicator Light with Buzzer is a cutting-edge signaling solution designed for both reliability and aesthetic appeal. This innovative product utilizes LED shining chips, ensuring a long lifespan and low energy consumption, making it an ideal replacement for traditional incandescent and neon lamps. The AD22 series is renowned for its high brightness, excellent reliability, and thoughtfully crafted design, garnering praise from satisfied clients worldwide.
Engineered to meet various international standards, the AD22-22MFB features a robust polycarbonate lampshade with superior anti-surge performance. Moreover, its bolt-type connector design enhances safety and convenience during installations. Whether you require a double-color lamp, position indicator, or a mini short indicator, the AD22 series offers versatile options tailored to your specific needs.
Specifications
| Attribute | Details |
|---|---|
| Main Technical Target | |
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60 cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40, optional up to IP67 |
| Using Frequency |

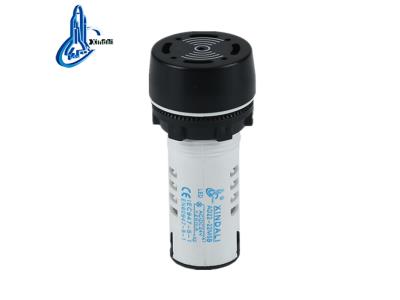

Product Show
