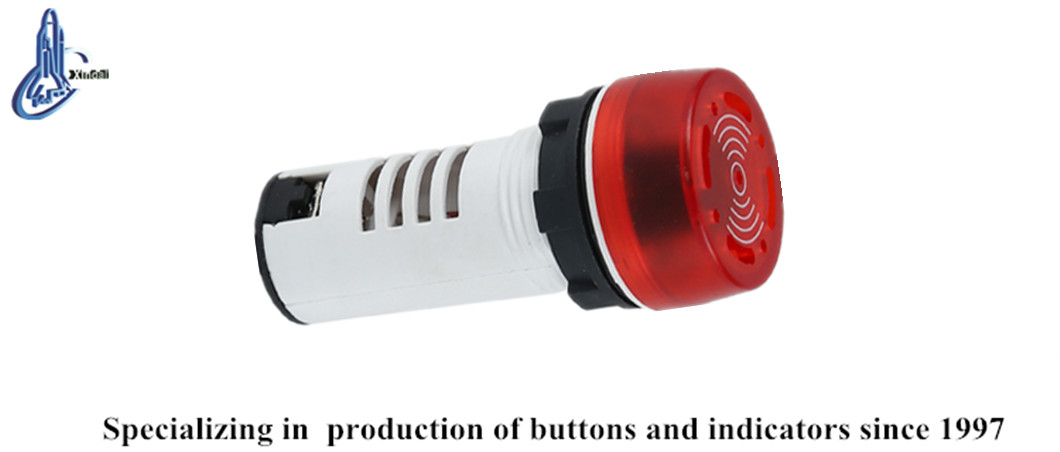

AD22-22MSB LED Indicator Lamp and Buzzer Indicator Light Signal Lamp
Inquire NowDescription
The AD22-22MSB LED Indicator Lamp and Buzzer Indicator Light Signal Lamp is a versatile and reliable signaling device designed to replace traditional incandescent and neon lamps. Utilizing advanced LED shining chip technology, this innovative product boasts a long lifespan, low energy consumption, compact design, and lightweight construction. The AD22 series is renowned for its high brightness, excellent reliability, and aesthetically pleasing design, making it a favored choice among clients. It includes features such as double-color lamps, position indicators, shining buzzers, and mini short indicators, ensuring it meets a variety of international standards. Constructed from high-intensity polycarbonate, it offers superior anti-surge performance, while the bolt-type connector enhances safety and convenience. The AD22-22MSB is crafted to align with the highest quality and aesthetic demands of users, providing a perfect solution for diverse signaling applications.
Specifications
Attribute | Details |
---|---|
Voltage of working frequency | 2.5kV (AC valid value), 1min |
Insulated resistance | ≥2MΩ |
Voltage wave allowed by AC indicator | ±20% |
Continual working life | ≥30,000h |
Brightness | ≥60cd/m² |
Index of leakage CT1 | ≥100 |
Protection grade | IP40, optional up to IP67 |
Using frequency | Not specified |
Additional Information
- High brightness and reliability for effective signaling.
- Compact size and lightweight design for versatile applications.
- Suitable for various international standards, enhancing user compatibility.

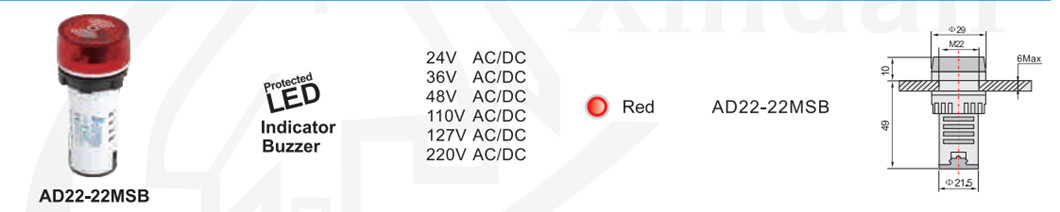

Product Show
