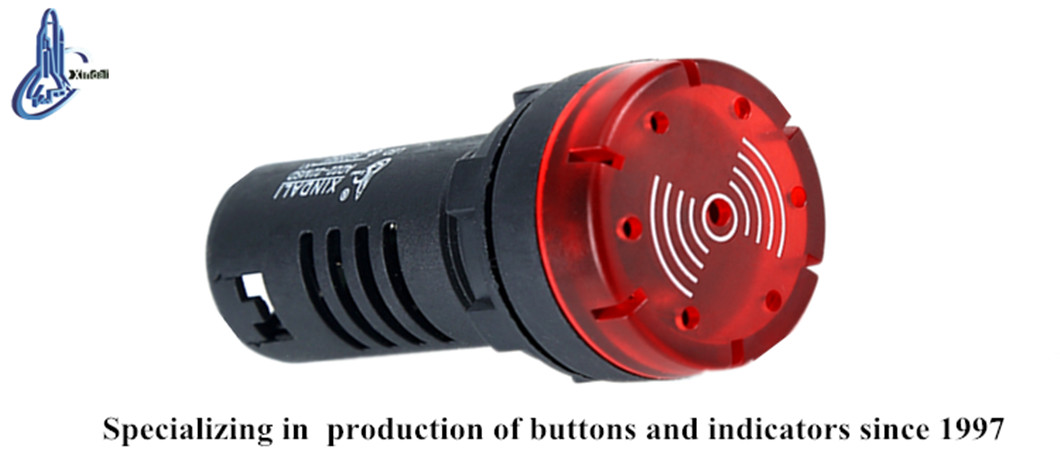

AD22-22MSD Flash Buzzer Beep 22mm LED Signal Indicating Lamp with Buzzer
Inquire NowDescription
The AD22-22MSD Flash Buzzer Beep is a compact 22mm LED signal indicating lamp designed for enhanced visibility and sound. Utilizing advanced LED technology, this indicator lamp offers a long lifespan and low energy consumption, making it an excellent replacement for traditional incandescent and neon indicators. Its durability and reliable performance have made it a favorite among clients across various industries.
With a variety of features, the AD22 series includes options for double-color lamps, position indicators, and mini short indicators, catering to diverse aesthetic and functional needs. Manufactured with high-intensity polycarbonate, the lamp is designed for superior anti-surge performance. The bolt-type connector enhances safety and convenience, ensuring that it meets international standards while delivering a blend of quality and design that is sure to impress.
Specifications
| Attribute | Details |
|---|---|
| Main technical target | |
| Voltage of working frequency | 2.5kV (AC valid value), 1min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40, customizable up to IP67 |
| Using frequency |
Additional Information
- Compact size for easy installation.
- Ideal for various signaling applications.
- Designed to meet rigorous safety standards.

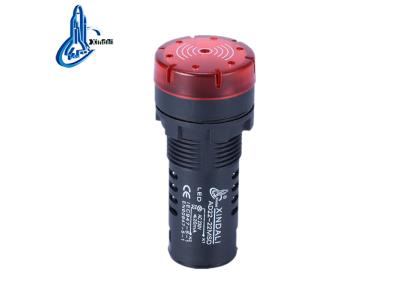

Product Show:
