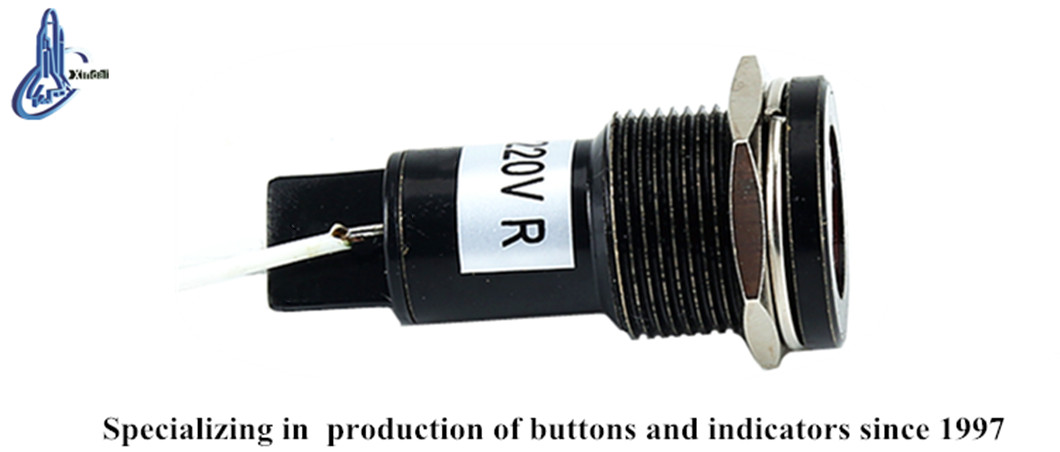

AD22C-10D/L 10mm black led signal lamp light indicator lamp with wire
Inquire NowDescription
The AD22C-10D/L is a 10mm black LED signal lamp designed for versatile usage as an indicator lamp. This innovative lighting solution utilizes an LED shining chip as its light source, providing remarkable longevity and low energy consumption. With a compact design, this lamp effectively replaces traditional incandescent and neon indicator lamps. The AD22 series is characterized by high brightness, outstanding reliability, and an aesthetically pleasing shape, ensuring it meets the demands of modern users.
Manufactured with high-intensity polycarbonate lampshades, the AD22C-10D/L boasts superior anti-surge performance and enhanced safety features, including a bolt-type connector for secure installation. This product is well-acknowledged for its durability and is a preferred choice among clients for various applications. The product line includes options such as double-color lamps and mini indicators, allowing for customization to suit a wide range of requirements.
Specifications
| Attribute | Detail |
|---|---|
| Main technical target | 2.5kV (AC valid value), 1min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40 (can be made up to IP67) |
| Using frequency | Not specified |
Additional Information
For optimal performance, ensure proper installation and adherence to specified operating conditions. This product is designed for durability, making it an excellent choice for both indoor and outdoor applications.
Product Show
