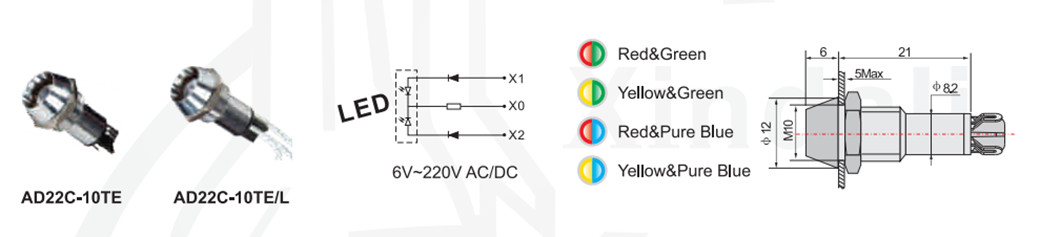

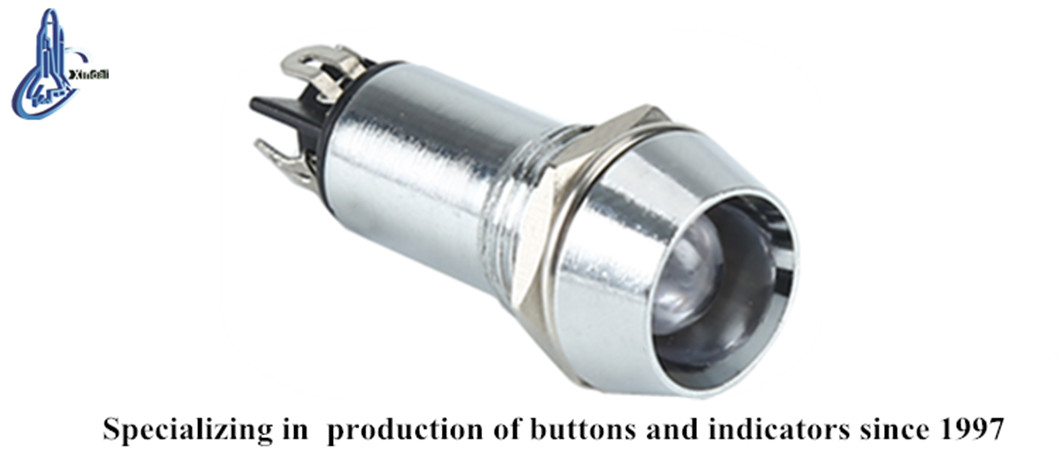

AD22C-10TE 10mm pilot led indicator double color led indicator lights
Inquire NowDescription
The AD22C-10TE is a cutting-edge 10mm pilot LED indicator light designed to enhance visibility and reliability in various applications. This double-color LED indicator utilizes high-quality LED shining chips, ensuring a long lifespan, low energy consumption, and a compact design. A perfect replacement for older incandescent and neon lamps, the AD22 series is known for its high brightness, excellent reliability, and aesthetically pleasing design. Manufactured with care, these indicators are favored by many clients for their robust performance. The product features an advanced polycarbonate lampshade that provides superior anti-surge performance and is constructed with a bolt-type connector, enhancing safety and convenience. Whether you require a position indicator or a shining buzzer, the AD22 series offers a versatile solution to meet diverse international standards.
Specifications
| Attribute | Specification |
|---|---|
| Main technical target | – |
| Voltage of working frequency | 2.5kV (AC valid value), 1min |
| Insulated resistance | ≥2MΩ |
| Voltage wave allowed by AC indicator | ±20% |
| Continual working life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of leakage CT1 | ≥100 |
| Protection grade | IP40 (can be made up to IP67) |
| Using frequency | – |
Additional Information
- High brightness for excellent visibility.
- Reliable and durable design suitable for various environments.
- Easy installation with bolt-type connectors for safety and convenience.
- Available in various double-color configurations to suit your needs.
Product Show:
