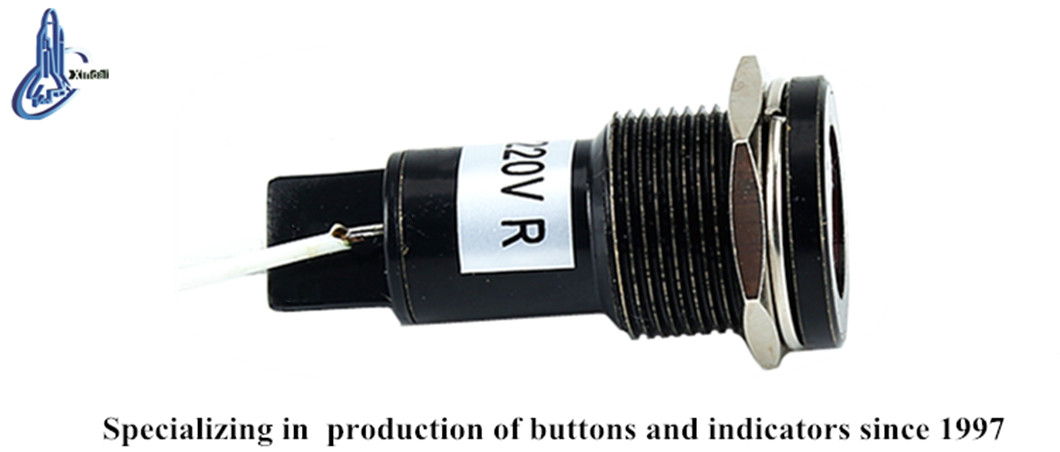

AD22C-12D/L indicator light signal lamp 12mm metal led work lamp
Inquire NowDescription
The AD22C-12D/L Indicator Light Signal Lamp is a cutting-edge 12mm metal LED work lamp designed to replace traditional incandescent and neon lamps with an innovative lighting solution. This series utilizes advanced LED shining chips as the light source, offering a product that boasts an impressive lifespan, low energy consumption, compact size, and lightweight design. Renowned for its high brightness, reliability, and aesthetic appeal, the AD22 indicators are produced with meticulous craftsmanship. With a variety of options including double-color lamps, position indicators, and mini short indicators, this product meets diverse international standards. The robust polycarbonate lampshade is engineered for superior anti-surge performance, while the bolt-type connector enhances safety and convenience. Elevate your lighting solutions with the AD22 series, where quality meets design.
Specifications
| Specification | Details |
|---|---|
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (can be made up to IP67) |
| Using Frequency |

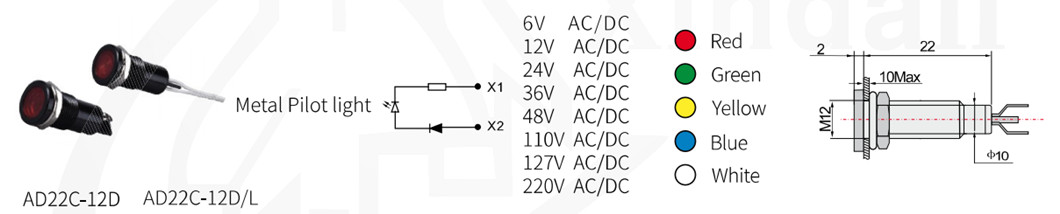

Product Show
