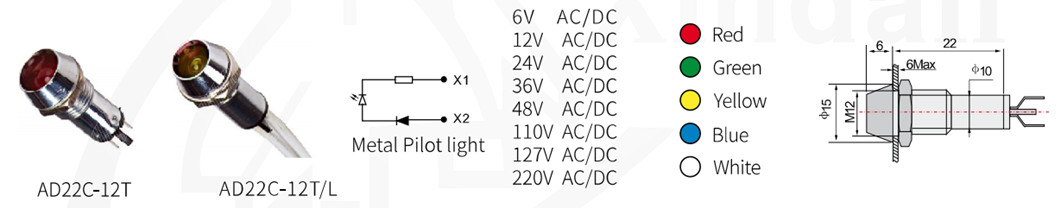

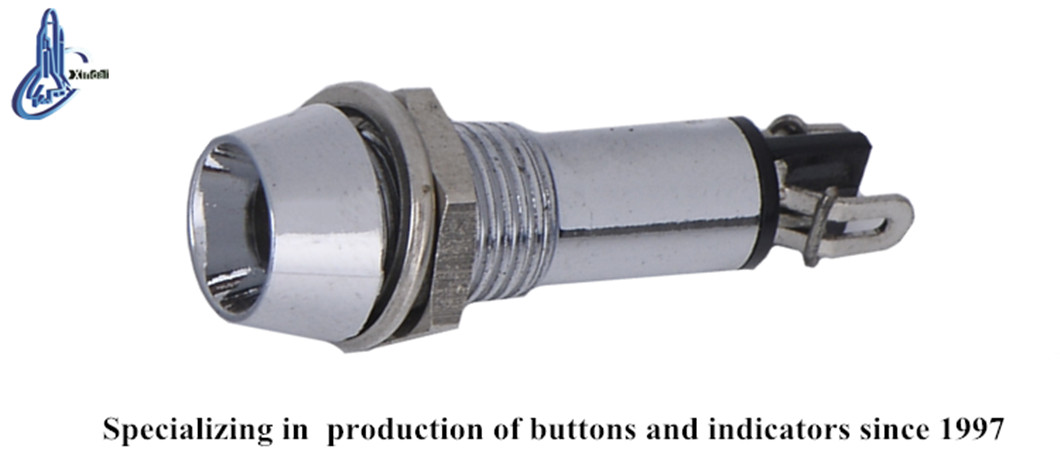

AD22C-12T 12mm indicator lights signal lamp led miniature lamps
Inquire NowDescription
The AD22C-12T is a sophisticated 12mm indicator light, designed to provide reliable signaling in various applications. Utilizing advanced LED technology, these miniature lamps offer exceptional brightness and longevity, making them a superior choice over traditional incandescent and neon lamps. The AD22 series combines aesthetic appeal with high functionality, featuring a robust polycarbonate lampshade that enhances durability and surge resistance. With a commitment to quality, these indicators are meticulously crafted to meet international standards, ensuring optimal performance and customer satisfaction.
Specifications
| Feature | Specification |
|---|---|
| Main Technical Target | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (up to IP67 available) |
| Using Frequency |
Additional Information
These indicator lights are designed not only for functionality but also for safety, featuring a bolt-type connector for secure installation. Their compact size and lightweight make them ideal for various electronic setups. The AD22 series is perfect for users looking for high-quality indicators that marry performance with design elegance.
