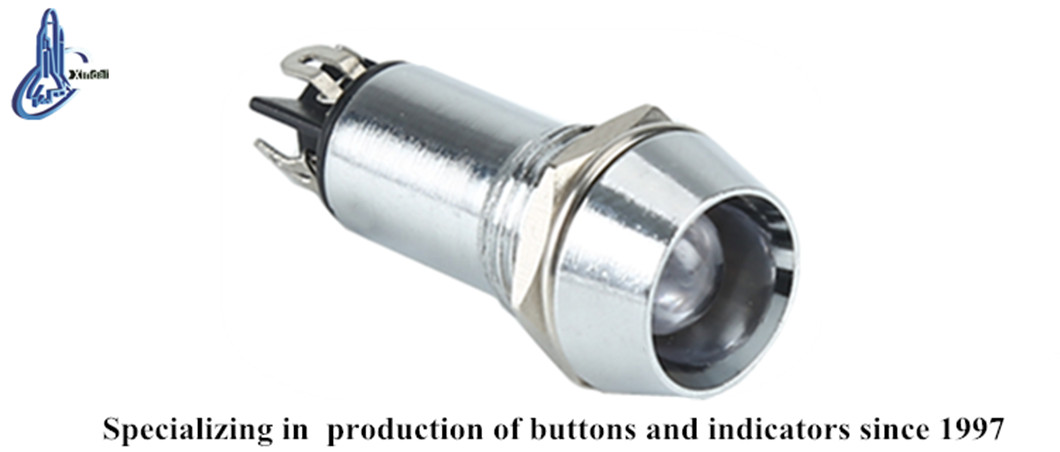

AD22C-12TE 12mm pilot lamp double color indicator light signal lamp
Inquire NowDescription

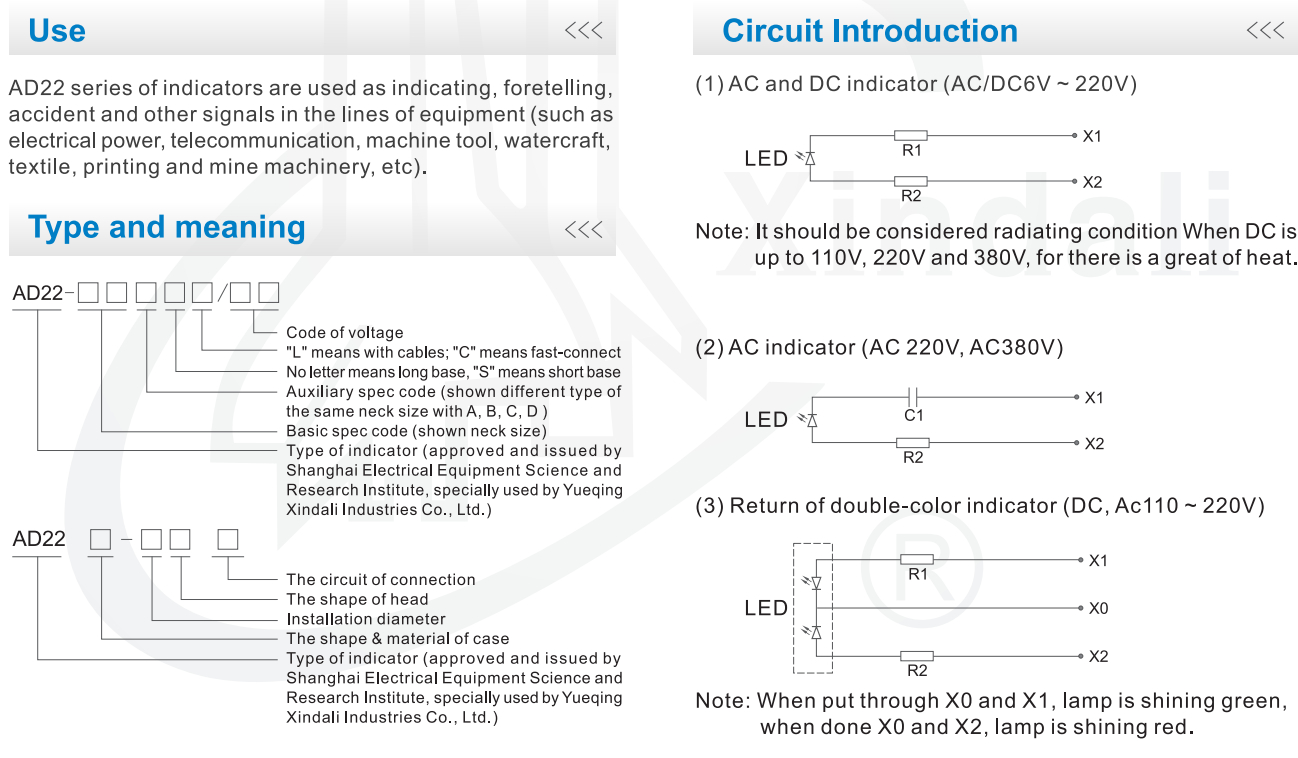

The AD22C-12TE is a 12mm pilot lamp designed as a double-color indicator light signal lamp, utilizing advanced LED technology to offer substantial benefits over traditional incandescent or neon indicators. This innovative product boasts a long lifespan, low energy consumption, and a compact, lightweight design. The AD22 series is renowned for its high brightness, reliability, and aesthetic appeal, making it a popular choice among various industries. It features double-color options, enhancing its versatility in signaling applications. The robust polycarbonate lampshade provides excellent anti-surge performance, ensuring both safety and durability. With a bolt-type connector for easy installation, this product meets high-quality standards and is well-regarded by users across the globe.
Specifications
| Specification | Details |
|---|---|
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m² |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (up to IP67 available) |
| Using Frequency | – |

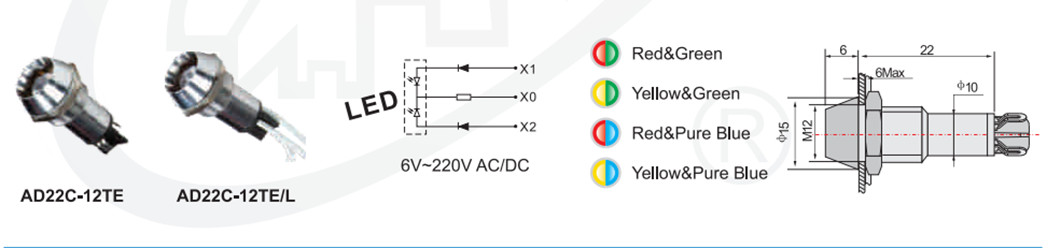

Product Show
