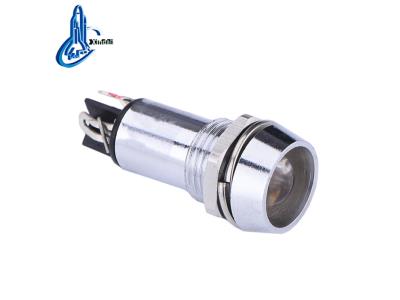

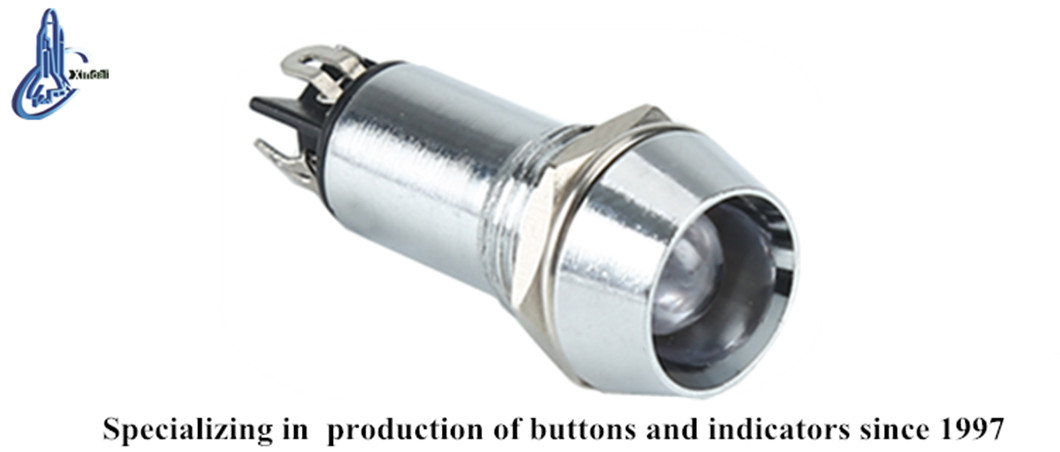

AD22C-14TE 14mm metal indicator light double color mini led lamp
Inquire NowDescription
The AD22C-14TE is a 14mm metal indicator light featuring a double color mini LED lamp. This innovative product utilizes the latest LED shining chip technology, offering a long lifespan, low energy consumption, compact size, and lightweight design. It serves as a modern replacement for older incandescent and neon lamps, combining high brightness with excellent reliability and aesthetic appeal. Crafted with precision, the AD22 indicators are highly praised by users for their durability and visual design. The polycarbonate lampshade enhances its anti-surge performance, and the bolt-type connector ensures safety and convenience. The AD22 series also includes various designs to meet international standards, making it an ideal choice for diverse applications.
Specifications
| Attribute | Specification |
|---|---|
| Voltage of Working Frequency | 2.5kV (AC valid value), 1 min |
| Insulated Resistance | ≥2MΩ |
| Voltage Wave Allowed by AC Indicator | ±20% |
| Continual Working Life | ≥30000h |
| Brightness | ≥60cd/m2 |
| Index of Leakage CT1 | ≥100 |
| Protection Grade | IP40 (can be made up to IP67) |
| Using Frequency | Not specified |
Additional Information
The product is designed for both aesthetic and functional needs, ensuring top quality and reliability for users. Its carefully manufactured components and high-intensity materials make it suitable for a variety of applications, enhancing overall design and safety.
