Adjustable Forks Style
Inquire NowDescription

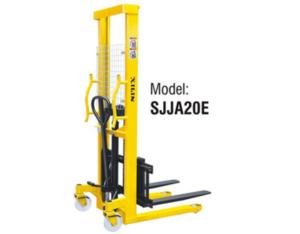

The Adjustable Forks Style model SJJA20E is an innovative solution designed for versatility and maximum efficiency in material handling. With an impressive load capacity of 2000 kg, it is built for strength and stability, making it ideal for various industrial applications.
This model features adjustable forks, allowing for optimal handling of a wide range of pallets and materials. Whether you’re lifting heavy loads or maneuvering in tight spaces, the SJJA20E model ensures smooth operation and reliability.
Specifications
| Attribute | Value 1 | Value 2 | Value 3 |
|---|---|---|---|
| MODEL | SJJA20E | SJJA20E-I | SJJA20E-II |
| Load capacity/rated load (Q) | 2000 kg | 2000 kg | 2000 kg |
| Load centre distance (c) | 400 mm | 400 mm | 400 mm |
| Fork height, lowered (h13) | 90 mm | 93 mm | 90 mm |
| Height, mast lowered (h1) | 2085 mm | 2085 mm | 2085 mm |
| Max. lift height (h3) | 1500 mm | 1500 mm | 1500 mm |
| Height, mast extended (H4) | 2085 mm | 2085 mm | 2085 mm |
| Overall length (L1) | 1386 mm | 1425 mm | 1482 mm |
| Overall width (b1) | 1000 mm | 830 mm | 830 mm |
| Fork dimensions (s/e/l) | 32/120/850 mm | 60/170/900 mm | 60/166/900 mm |
| Width overall forks (B5) | 250-950 mm | 580 mm | 350-710 mm |
| Ground clearance, laden, below mast (M1) | 25 mm | 20 mm | 20 mm |
Additional Information
- Adjustable fork design enhances versatility for handling different loads.
- Engineered for durability and performance in challenging environments.
