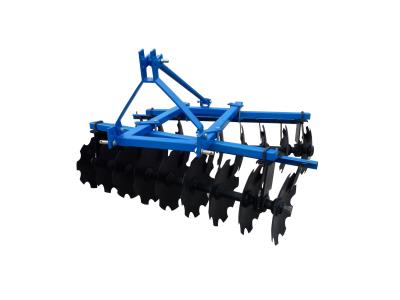

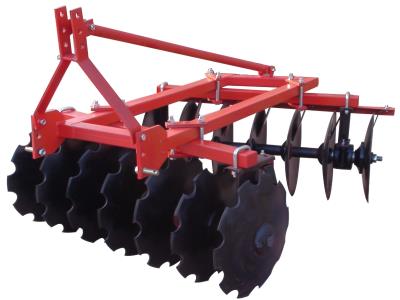

Agri disc harrow Small tractor disc harrow offset disk harrow
Inquire NowDescription
The Agri Disc Harrow is a highly efficient, tractor-mounted light disc harrow designed specifically for small tractors ranging from 15 to 60 horsepower. This offset disc harrow excels in preparing the soil for planting by effectively cleaning crop residues before tillage, breaking hardened soil, and integrating chopped straw back into the ground. It is particularly adept at leveling and crushing soil after tillage, ensuring a smooth and loose surface that is ideal for heavy clay soils, wastelands, and weedy fields.
With its remarkable productivity, optimal power utilization, and superior cutting capabilities, this disc harrow is engineered to provide a reliable and robust performance in various agricultural applications.
Specifications
| Attribute | Value |
|---|---|
| Model | 1BQX-1.1, 1BQX-1.3, 1BQX-1.5, 1BQX-1.7, 1BQX-1.9, 1BQX-2.3 |
| Working Width | 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2300 mm |
| Working Depth | 120 mm (adjustable) |
| Quantity of Disc | 12, 14, 16, 18, 20, 24 |
| Total Weight | 200 kg, 220 kg, 240 kg, 260 kg, 310 kg, 360 kg |
| Matched Power | 15 hp, 18 hp, 25 hp, 30 hp, 35 hp |
| Materials | 65Mn Spring Steel |
| Features |
|
Additional Information
This versatile small tractor disc harrow is designed to enhance soil management and promote healthy crop growth. Utilizing innovative designs and durable materials, the Agri Disc Harrow ensures long-lasting performance in demanding agricultural environments.
