Agricultural small tractor new PTO rotavator for sale
Inquire NowDescription

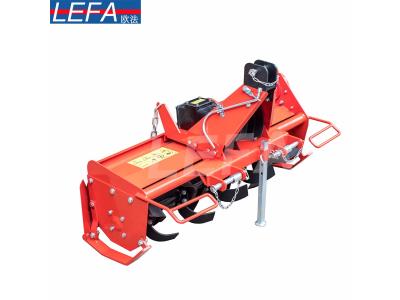

The Agricultural Small Tractor PTO Rotavator is an essential tool designed for efficient soil cultivation in small to medium-sized farms. With a robust three-point linkage system, it offers compatibility with tractors requiring 15-35 horsepower. The chain-driven transmission ensures smooth operation, while the graphite casting iron gearbox provides enhanced durability and resistance to wear. Equipped with a protective bar and adjustable tilling height, this rotavator guarantees effective soil preparation without compromising safety. The innovative design includes side protection plates to prevent soil from flying out, making it a reliable choice for farmers looking to optimize their tilling process.
Specifications
| Mode | RT-85 | RT-95 | RT-105 | RT-115 | RT-125 | RT-135 |
|---|---|---|---|---|---|---|
| Dimension (mm) | 950*550*560 | 1050*550*560 | 1150*550*560 | 1250*550*560 | 1350*550*560 | 1450*550*560 |
| Working width (cm) | 85 | 95 | 105 | 115 | 125 | 135 |
| PTO Input speed (rpm) | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Weight (Kg) | 110kg | 115kg | 125kg | 135kg | 145kg | 155kg |
| Number of blades | 16 | 16 | 20 | 24 | 28 | 32 |
| Tilling depth (cm) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Packing size (mm) | 1060*650*660 | 1160*650*660 | 1260*650*660 | 1360*650*660 | 1460*650*660 | 1560*650*660 |
| Power required | 15-25HP | 15-25HP | 15-25HP | 20-30HP | 20-30HP | 20-30HP |
Additional Information
The gravity gearbox constructed from casting iron ensures superior material performance, reducing the risk of breakage. The design of the suspension plate is robust, preventing deformation, while the chain device is hand adjustable for enhanced reliability. This rotavator is engineered for stability and efficiency, making it an excellent investment for modern agricultural practices.
