Agriculture 3 point linked potato harvest digger
Inquire NowDescription

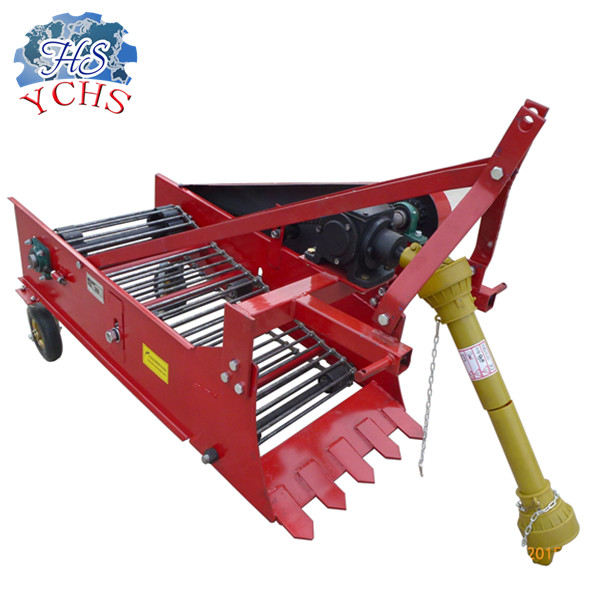

The Agriculture 3 Point Linked Potato Harvest Digger is a robust and efficient tractor-mounted solution designed for garlic harvesting, compatible with tractors ranging from 20 to 30 horsepower. This innovative digger ensures the safe extraction of garlic without cutting or damaging the individual potatoes, allowing for a seamless transition to the next crop’s growth cycle.
Utilizing a state-of-the-art digging shovel, the 4U series potato harvester operates effectively with tractors between 12 to 60 horsepower. The mechanism functions by using the tractor’s power to dig into the soil, separating crops from the soil through a vibration sieve. This design allows the soil to sift down while the harvested crops are gently deposited on the roadway behind the digger. This ensures an efficient and effective harvesting process, maximizing yield and minimizing damage to the produce.
Specifications
Model | Unit | 4U-1 | 4U-2 |
---|---|---|---|
Harvesting rows | 1 | 2 | |
Working width | mm | 600 | 900/1300/1500 |
Working depth | mm | 100-250 | |
PTO Rotation speed | r/min | 540-720 | |
PTO shaft spline | 6 spline | ||
Total weight | kg | 160 | 260/335/390 |
Matched power | hp | 20-30 | 40/50/70 |
Linkage | Three-point suspension I type | Three-point suspension II type |
Additional Information
For optimal performance, ensure that the tractor used matches the specified horsepower requirements. Regular maintenance of the digger will enhance its longevity and efficiency during the harvesting process.
