Description

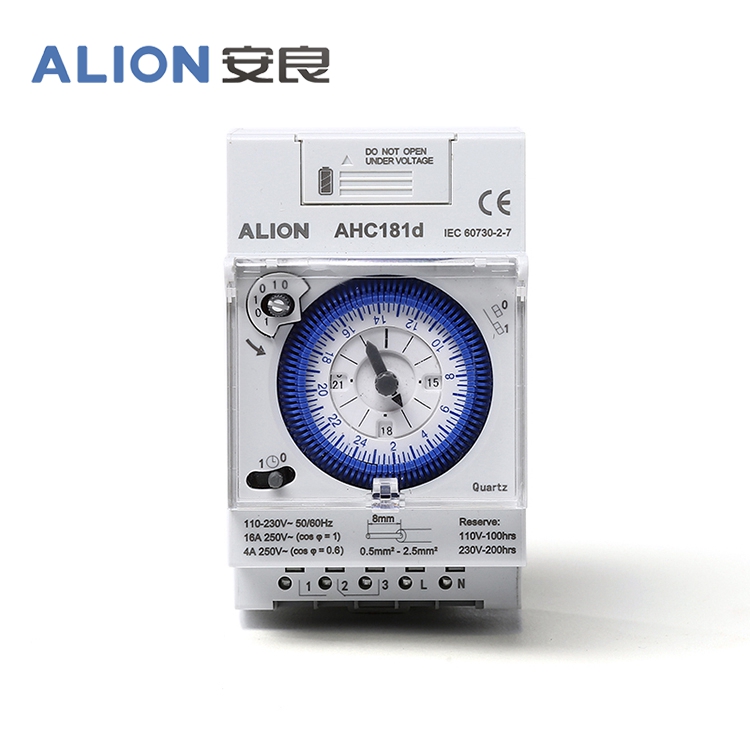

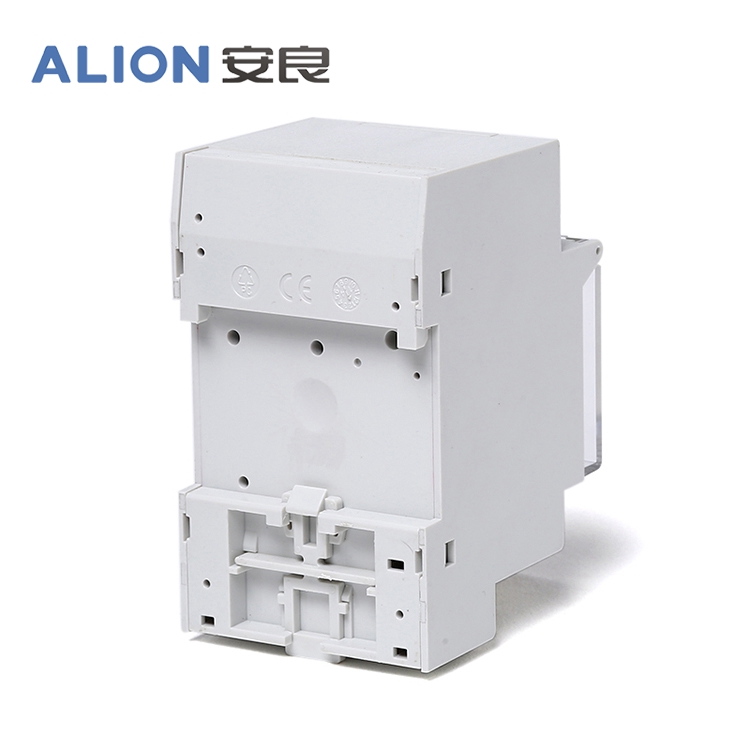

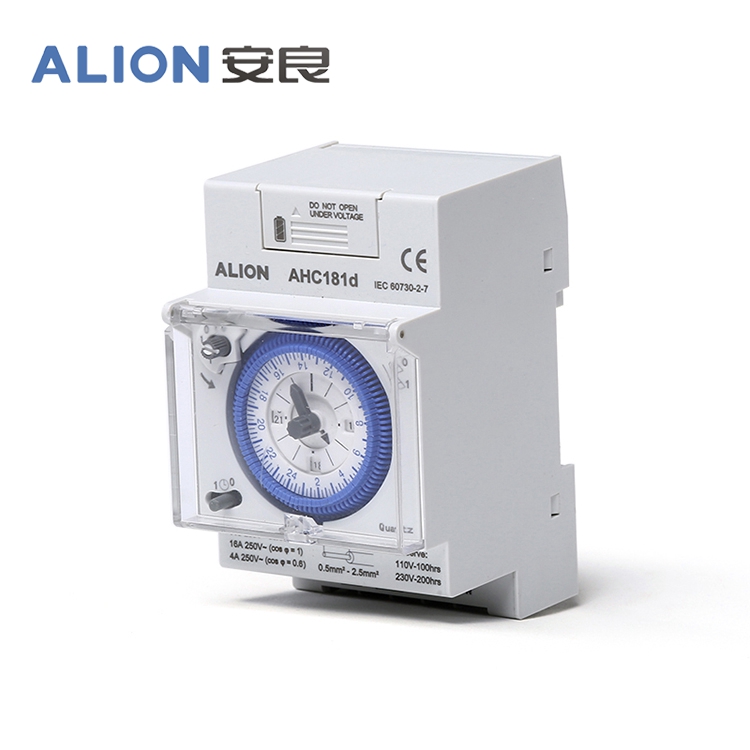

The AHC181d Rechargeable Battery Daily Analogue Time Switch is an essential device for automating your electrical appliances. Designed with user convenience in mind, this time switch employs switching segments for easy programming and battery replacement. The AHC181d features a versatile switching capability with options for continuous ON, AUTO, or OFF settings. With a minimum switching interval of just 15 minutes, it ensures precise control over your devices, making it perfect for both residential and commercial applications.
Specifications
| Attribute |
Details |
| Voltage |
230Vac, other voltages on request |
| Frequency |
50/60Hz |
| Switching Capacity |
16A |
Additional Information
- 1 channel
- 96 switching segments
- Fine adjustment for time setting accurate to the minute
- Simple summer/winter time correction
- Switching preselection
- Quartz controlled
- Manual switching with continuous ON/AUTO/OFF
- Switching status display
- Permanent ON/OFF switch
- With power reserve (NiMH replaceable & rechargeable battery)
Maximum Recommended Load (10,000 operations)
| Type of Load |
Maximum Load |
| Filament / Halogen lamp 230V |
1100 W |
| LED lamp 230V < 2 W |
20 W |
| LED lamp 230V > 2 W |
180 W |
Technical Data
| Attribute |
Details |
| Time accuracy at 25 °C |
≤± 2 Sec./day (quartz) |
| Type of contact |
changeover contact |
| Type of protection |
IP 20 |
| Class of protection |
II according to EN 60 730-1 |
| Power reserve |
SUL181d: 7 days |
| Permitted ambient temperature |
-10 ~ +50 °C (non-icing） |
| Test approval |
CE |
| Power consumption |
1.5 VA |
