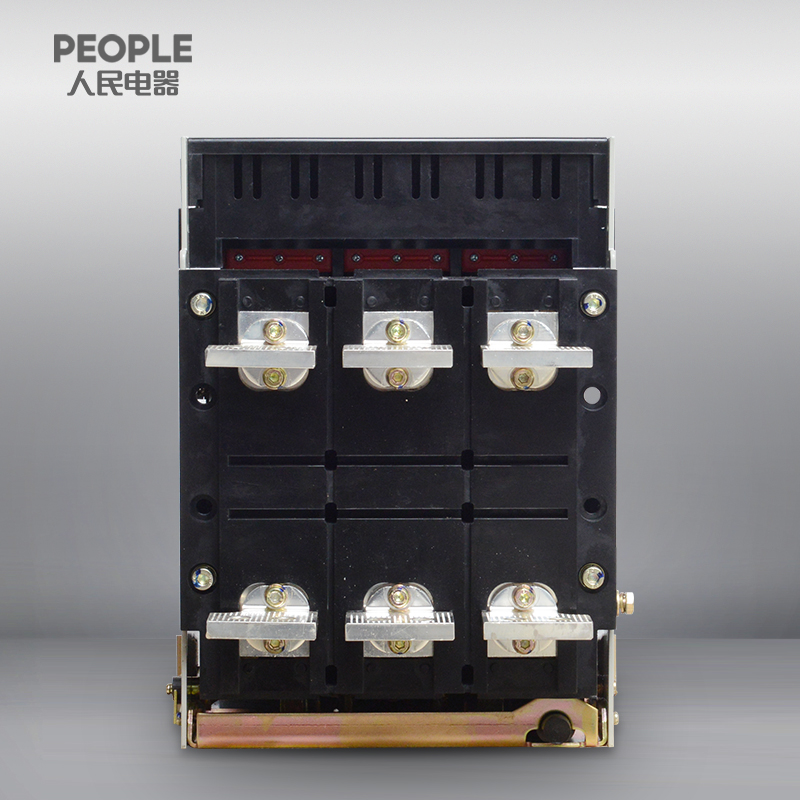

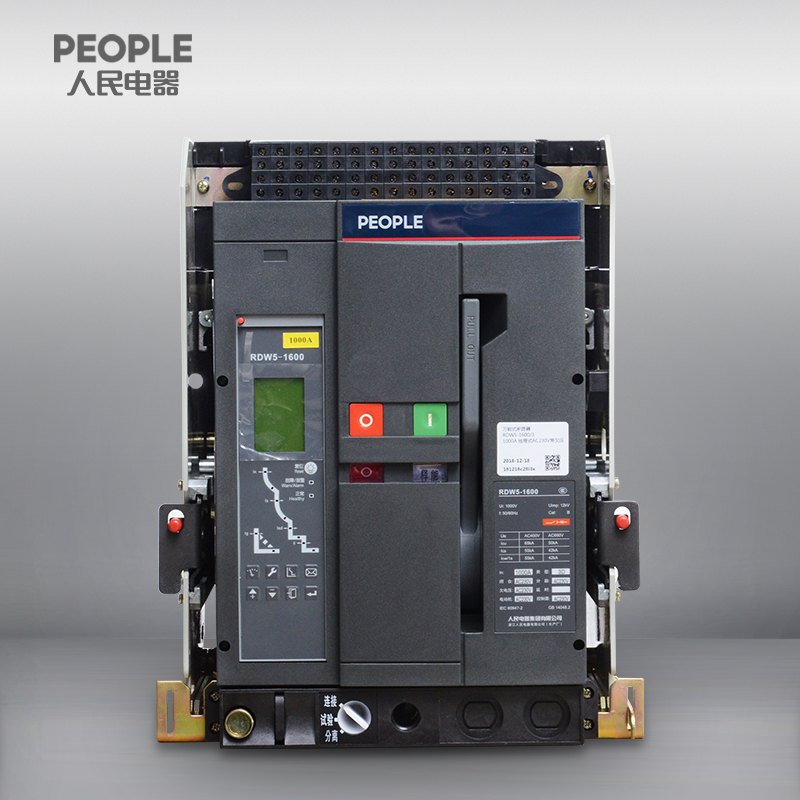

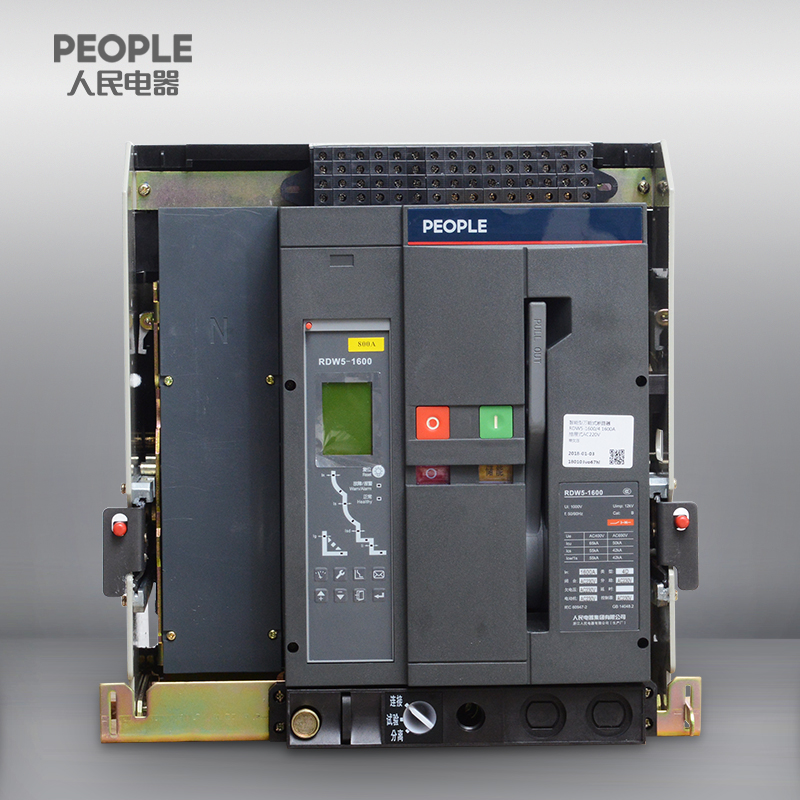

Air Circuit Breaker Universal Intelligent Air Circuit Breaker Rdw5 Acb
Inquire NowDescription
The RDW5 series Intelligent Air Circuit Breaker (ACB) is a state-of-the-art power distribution solution designed for AC networks operating at frequencies of 50/60Hz. Capable of handling rated operating voltages up to 400V or 690V and currents as high as 6300A, this circuit breaker is engineered to protect circuits and power-supply equipment from various fault conditions, including overloads, under-voltage, short circuits, and single-phase grounding. It not only provides insulation but also integrates intelligent protection functions that facilitate bidirectional communication between multiple breakers and a central control system. This capability ensures efficient remote control and meets the demands of modern automated system control. The RDW5 adheres to the IEC60947-2 standard, guaranteeing reliability and optimal performance.
Specifications
| Attribute | Details |
|---|---|
| Rated Operating Voltage | Up to 400V/690V |
| Rated Current | Up to 6300A |
| Frequency | 50/60Hz |
| Protection Functions | Overload, Under-voltage, Short-circuit, Single-phase grounding |
| Communication | Bidirectional communication with central control |
| Compliance | IEC60947-2 |
Additional Information
- Provides insulation function
- Suitable for automatic system control applications
