Air Conditioning HVAC Definite Purpose SA Brand magnetic 4 Poles Electronic AC Contactor 4
Inquire Now
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors (including
DP Contactors, LC1 series contactors , Founded in Mingguang City,
China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the
most innovative and highest quality products available to our customers.
Air Conditioning HVAC Definite Purpose SA Brand magnetic 4 Poles Electronic AC Contactor 40A Air Conditioner
About Us
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors (including
DP Contactors, LC1 series contactors , Founded in Mingguang City,
China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the
most innovative and highest quality products available to our customers.
Products Details
| FLA | 40 |
| Poles | 4 |
| Resistive Amps | 50 |
| Coil Voltage | 120 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 240/200/160 |
| Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. | |
| Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. | |
| Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc. | |
| Replaces: Siemens/42CF25AFBBZ,Cutler-Hammer/C25ENF440A,Hartland Controls/HCCY4XT04CJ303. | |
Products Application
SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.
Main Production Data
? Silver Cadmium Oxide Contacts
? Ranges: 20 – 90 FLA
? Poles: 1pole, 1.5pole , 2pole , 3pole, 4pole
? Coil Voltages: 24, 110/120, 208/ 240, 277 VAC
? Terminations: #10-32 screw – 20, 25 & 30 FLA Models,
Box Lug – 40, 50, 60, 75 & 90 FLA Models
? Temperature Range: – 40°F to + 150° F / – 40°C to + 65° C
? UL Listed
Certification

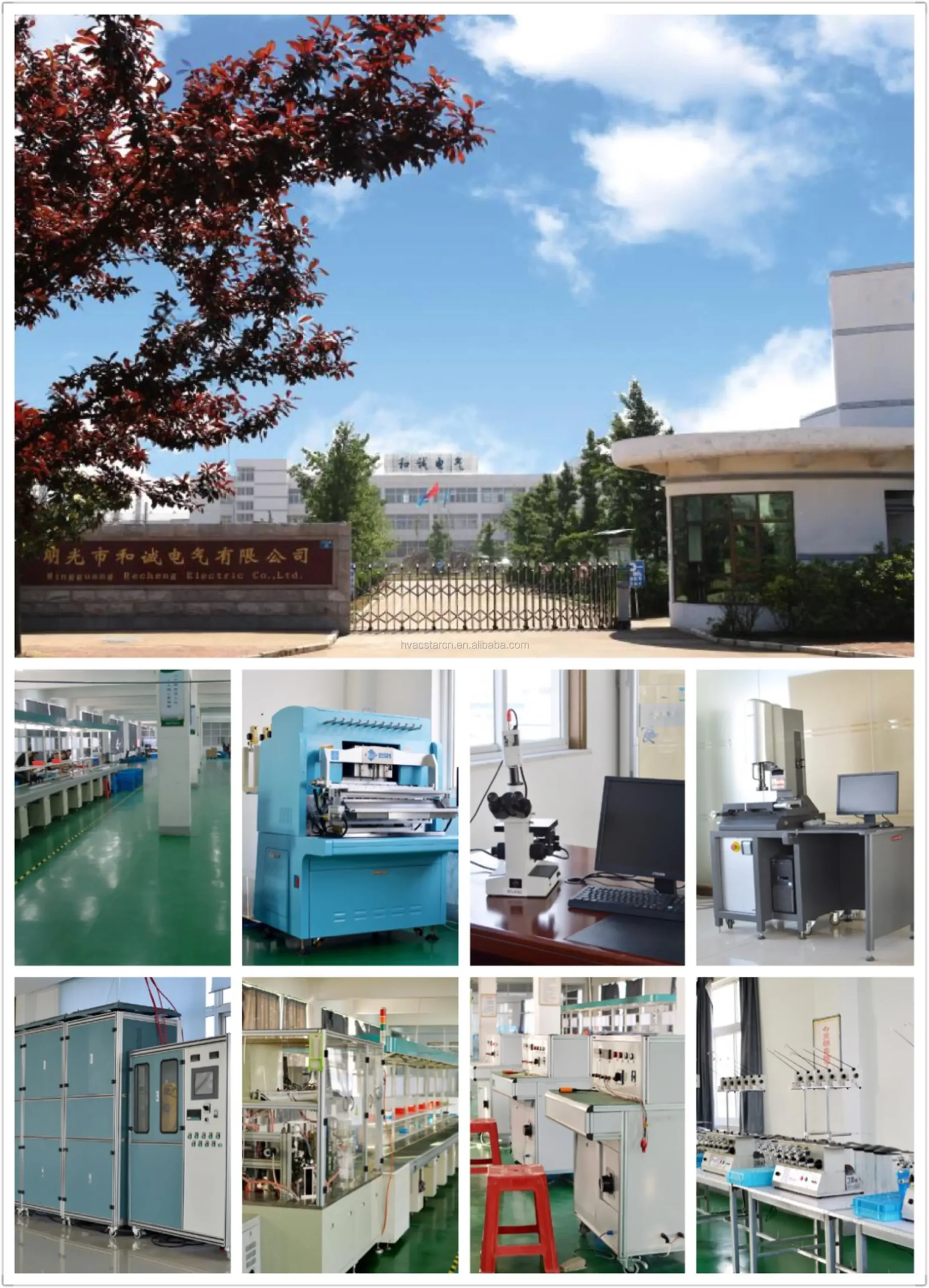

Our Factory:
FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers’ side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
