AIR DRIVEN GAS BOOSTER/ PNEUMATIC DRIVEN GAS BOOSTER
Inquire NowDescription
The AIR DRIVEN GAS BOOSTER is a versatile and efficient solution for compressing a variety of gases, including Air, Nitrogen (N2), Helium (He), Carbon Dioxide (CO2), Neon (Ne), Argon (Ar), Oxygen (O2), Hydrogen (H2), Methane (CH4), and Natural Gas. This state-of-the-art pneumatic-driven technology allows for the compression of industrial gases such as Argon, Helium, and Nitrogen to high operating pressures of up to 25,000 psig (1724 bar), while Oxygen can be compressed to 5,000 psig (345 bar) and Hydrogen to 15,000 psig (1034 bar).
The booster features single, double acting, and two-stage models, designed to be reliable, compact, and robust. With no risk of heat, flame, or spark, these boosters are ideal for explosion-proof areas. They offer infinitely variable cycling speeds and outputs, automatic control applications, and seamless operation without adverse effects during continuous stop/start applications.
The advanced seal systems ensure a long working life, and the absence of an airline lubricator guarantees high purity of the gas. The built-in cooling and the ability to stall at predetermined pressures without power consumption or heat generation make this gas booster an exceptional choice for various industrial applications.

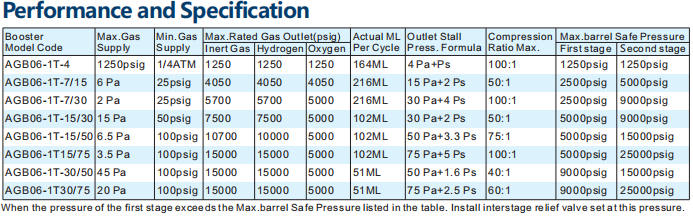

Specifications
| Feature | Detail |
|---|---|
| Gas Compatibility | Air, N2, He, CO2, Ne, Ar, O2, H2, CH4, Natural Gas |
| Max Pressure for Argon, Helium, Nitrogen | 25,000 psig (1724 bar) |
| Max Pressure for Oxygen | 5,000 psig (345 bar) |
| Max Pressure for Hydrogen | 15,000 psig (1034 bar) |
| Models | Single, double acting, two-stage |
| ATEX Approval | Yes |
| CE Certification | Yes |
| Lubrication Requirement | No airline lubricator required |
| Cooling | Built-in cooling |
Additional Information
The gas supply can be utilized from extremely low pressures, enhancing gas utilization efficiency. The design guarantees separation between the air and gas sections, ensuring no contamination of the gas, which is critical for maintaining high purity levels.
