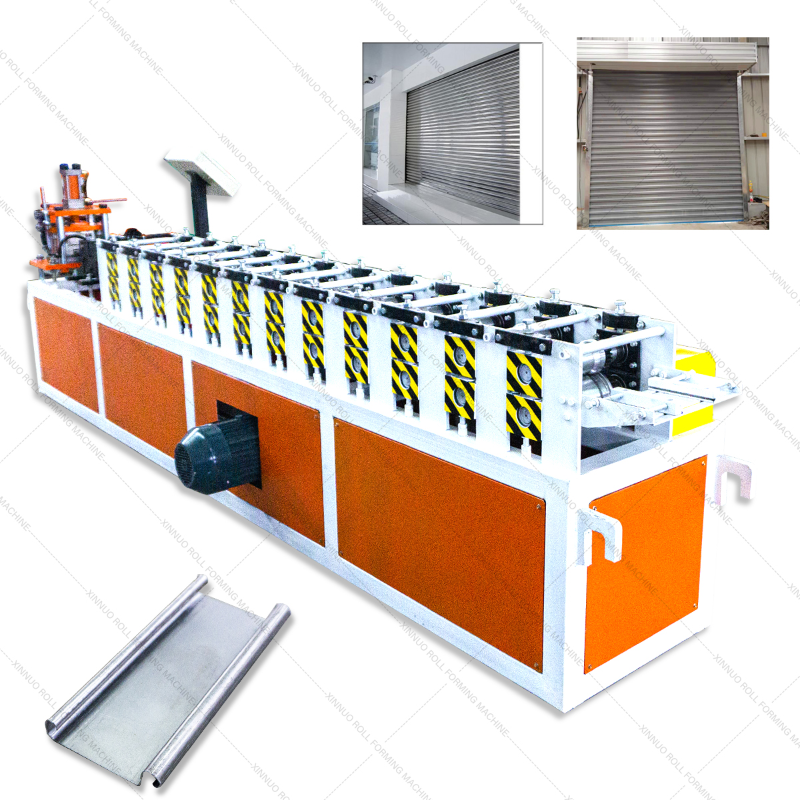

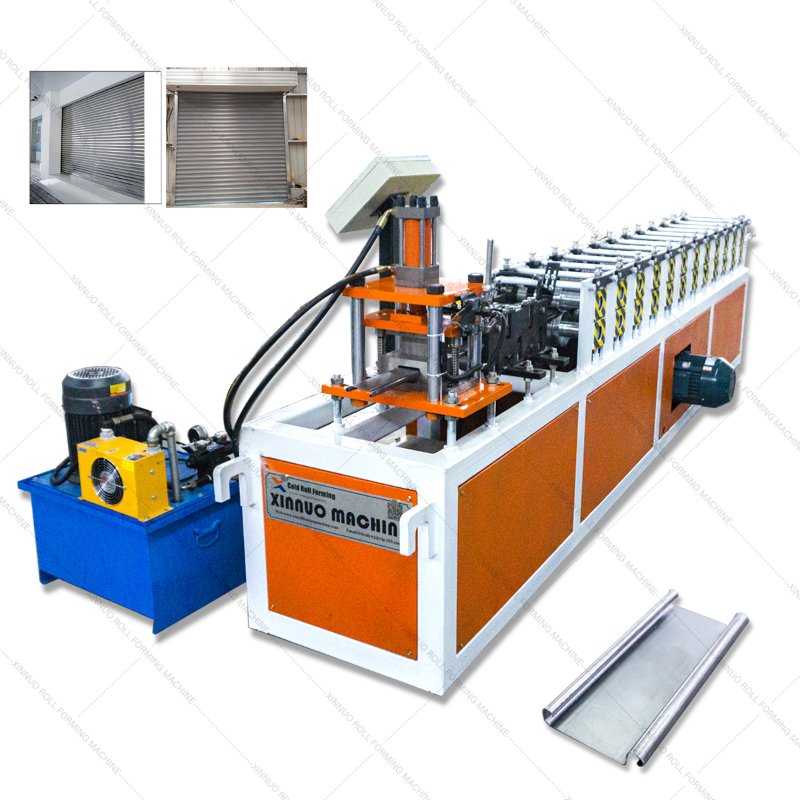

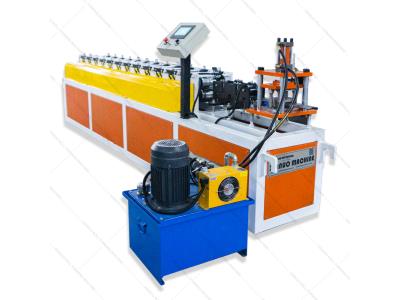

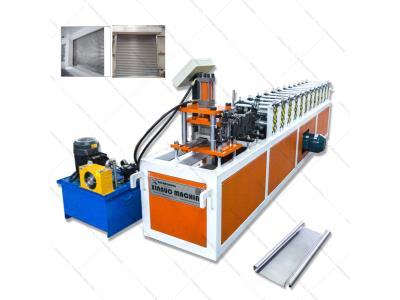

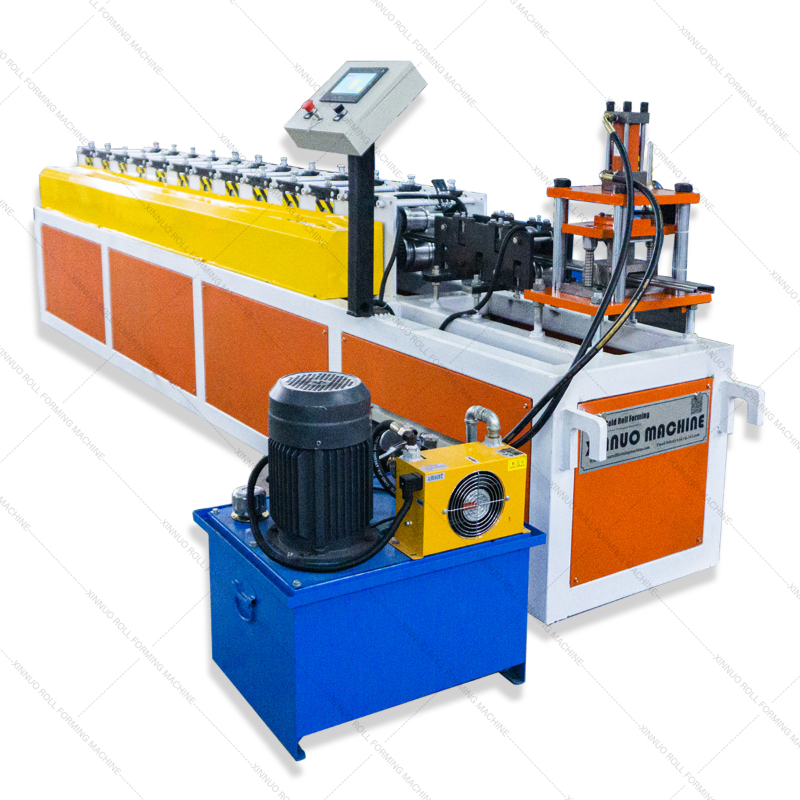

aluminium shutter door slat roll forming machinery alu zinc roofing steel making machine
Inquire NowDescription
The aluminium shutter door slat roll forming machinery is designed for efficient production of shutter door slats and aluminum zinc roofing steel. This advanced machine boasts a reasonable structure and an aesthetically pleasing appearance, making it ideal for operations with limited space. Its user-friendly design ensures ease of operation, making it a favorite among customers in various industries.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Shutter Door Bottom Forming Machine |
| Main Motor Power | 3 kW, 3 phases |
| Hydraulic Motor Power | 3 kW |
| Hydraulic Pressure | 18-20 Mpa |
| Voltage | 380V /3 phase / 50 HZ (or as required) |
| Control System | PLC Delta Inverter |
| Main Frame | 300MM H-Beam |
| Backboard Thickness | 14MM |
| Chain Size | 20MM |
| Feeding Material | 2.0MM |
| Feeding Thickness | 2.0MM |
| Overall Size | 4500×800×1300 mm |
| Total Weight | 2T |
| Roller Diameter | 50mm |
| Roller Material | 45# steel |
| Cutter Material | Cr12, quenched |
| Cr-Plating Size | 0.05mm |
| Productivity | 8-12m/min |
Additional Information
Hebei Xinnuo Roll Forming Machine Co., Ltd. specializes in producing a variety of professional roll forming machines, including intelligent automatic roll forming production lines, C&Z shape purline machines, and more. With a strong sales network across China and globally, our dedicated after-sales team provides exceptional support, including installation and operation training.
