API610 OH1 Pump, Reliable and cost effective.
SDPUMP is APIQ1 registered.

SZA type petrochemical pumps are centrifugal, horizontal, single stage, single suction and cantilever type. They are designed according to API 610 standard.

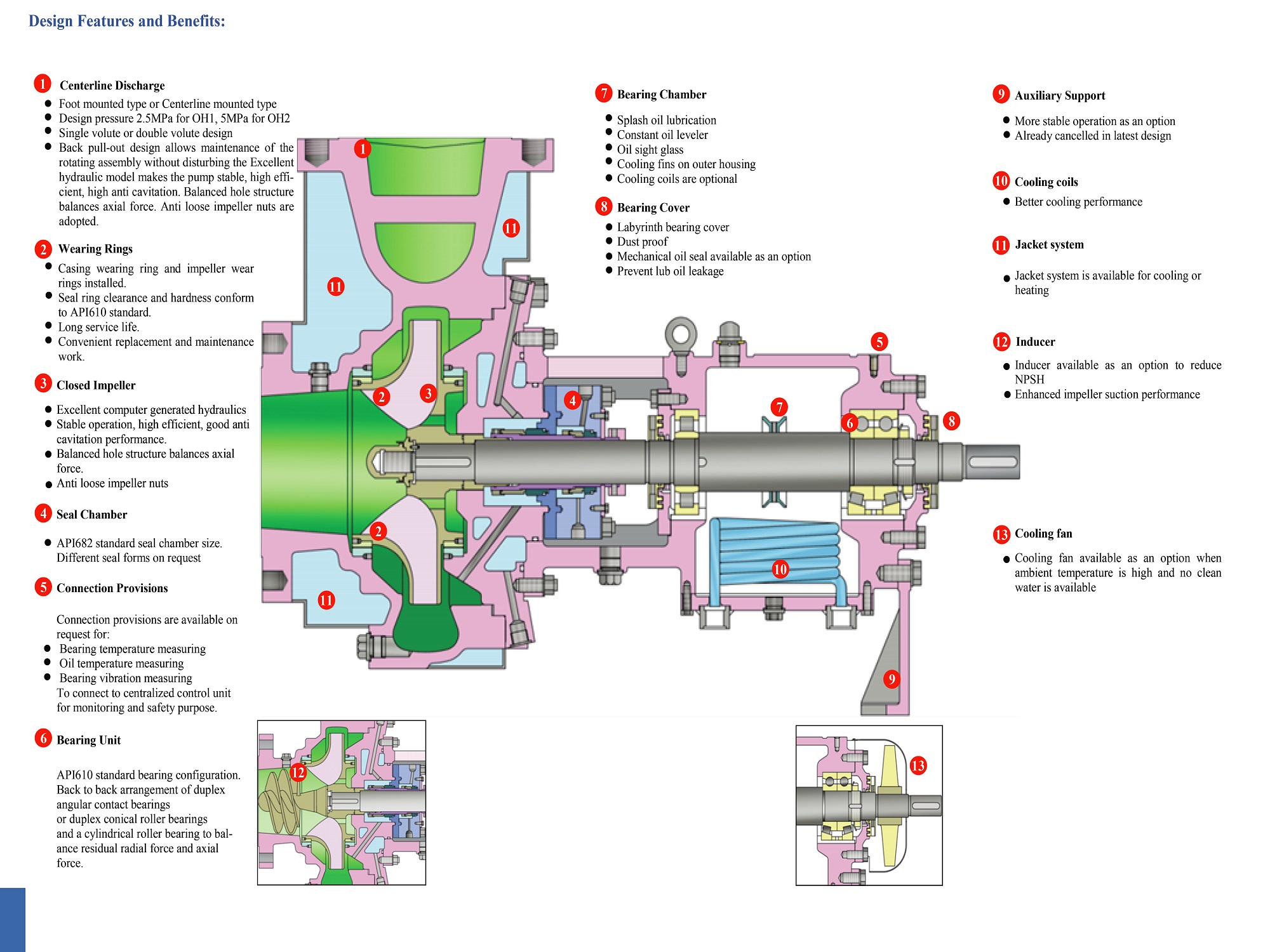

This series of pumps is designed strictly in accordance with the standard in terms of pump support, bearing arrangement, connection provisions, cooling and washing, cavity structure, etc. Plan reasonably, enhance the universality of components, reduce maintenance time and numbers or types of spare parts required. Connection provisions for temperature measurement, vibration test and pressure test. Enhance the intelligent monitor of the pump, improve the reliability of the pump.

This type of pump has good hydraulic performance, comprehensive spectrum, high efficiency and anti-cavitation performance. According to large number of test data combined with hydraulic analysis software, its hydraulic performance reaches updated international advanced level.

According to different working conditions, OH series pump has many configuration types in order to optimize mechanical design. Different sealing chambers all meet API standard, different seal forms also can be configured.

Operation Parameter

SZA Type-API610 OH1

Nozzle Diameter：25~400 mm

Flow Capacity ：~2600 m3/h

Disch. Head ：300 m

Pressure ：2.5 MPa

Temperature ：-40oC~+250oC Temperature
