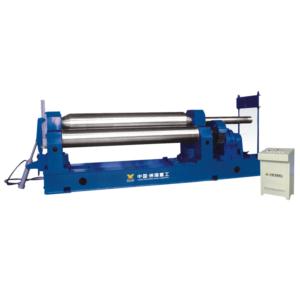

Arc down-adjusting 3-roller rolling machine
Inquire NowDescription
The W11HNC arc down lower roller adjustable 3-roller plate rolling machine is an advanced piece of equipment designed for efficiently rolling and forming metal plates. Ideal for various industries such as petroleum, chemical, boiler, shipping, machine vehicle, metal structure, and machinery manufacturing, this machine allows for single-pass feeding of plate materials without the need for end changing. It expertly pre-bends and rolls workpieces into diverse round and arc shapes, accommodating a wide range of sizes. Furthermore, it is capable of straightening formed workpieces and rolling cone-shaped components at specific conical angles, making it a versatile choice for any metalworking operation.
Specifications
| Specification | Details |
|---|---|
| Max rolling thickness | 8 mm |
| Max pre-bending thickness | 5 mm |
| Max rolling width | 3000 mm |
| Min rolling diameter when max size | ￠650 mm |
| Plate yield limit | 245 MPa |
| Upper roller diameter | ￠280 mm |
| Lower roller diameter | ￠260 mm |
| Rolling speed | 5 m/min |
| Main motor power | 11 kW |
| Machine weight | 9 tons |
Additional Information
- This machine is suitable for a variety of metal forming applications.
- Designed for efficient operation with minimal downtime.
- Perfect for industries requiring high precision and reliability in bending and rolling processes.
