Arch curving sheet roll forming machine
Inquire NowDescription
The Arch Curving Sheet Roll Forming Machine is a versatile and efficient tool designed for on-site production, significantly reducing costs while enhancing productivity. Ideal for mid-scale and small-scale constructions such as factories, warehouses, garages, gymnasiums, exhibition centers, cinemas, and theatres, this machine is engineered for durability and performance.
Featuring a robust trailer design equipped with high-quality axles similar to those found in automobiles, this machine’s structural integrity is superior to many competitors. The exceptional longevity and strength of its components ensure reliable operation over time.
Specifications
| Production Type | BH-914-610 |
|---|---|
| Dimension | 11690mm X 2230mm X 2300mm (Double Axles & 8 Tires) |
| Total Weight | About 10 Ton |
| Feeding Width | 914mm |

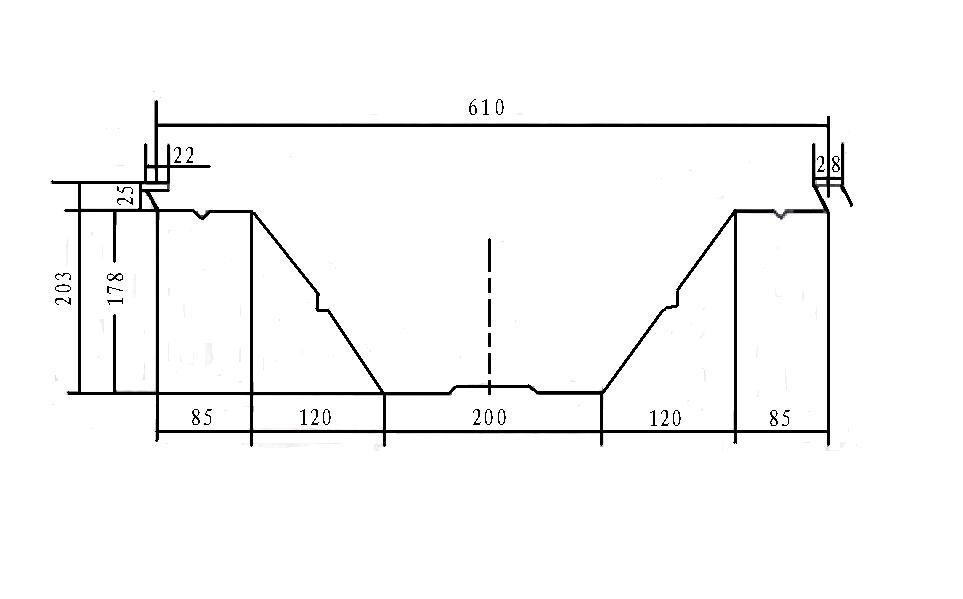

| Effective Width | 610mm |
| Using Rate | 66.7% |
| Thickness | 0.6-1.5mm |
| Groove Depth | 243mm |
| Bending Leaf | 10mm Thickness, Processed By CNC |
| Cutting Blade | 12CrMov Material, Heat Treatment |
| Cutting Type | Mechanical/Hydraulic Cutting |
| Forming Type | Roll-Formed and Length-Set Cutting |
| Controlling System | PLC |
| Power | Total Motor Power: 17.5KW Roll Forming Main Motor Power: 7.5KW Bending Power: 3.0KW+1.5KWx2 Cutting Power: 4.0KW |
| Seaming Power | 1.1KW+1.1KW |
| Roller Material | 45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating |
| Shaft Material | 45# High-Quality Steel, Galvanized |
| Stand of Molding | 13+1 Steps |
| Working Speed | Forming Part: 15m/min Bending Part: 13m/min Seaming Part: 6m/min |
| Suitable Project | 6~38m |
| De-Coiler | Inner-Diameter of Coil: 450mm ~ 650mm Max Width of Coil: 914mm ~ 934mm Load: 10Ton |
Additional Information
For optimal performance, ensure regular maintenance and adhere to safety guidelines during use. The Arch Curving Sheet Roll Forming Machine is designed to handle a variety of projects with efficiency and precision.
