Description
The ATL Bimetal Lug is designed for a seamless transition connection between aluminum cables or aluminum alloy cables and copper ends of electrical equipment in low voltage applications. This product ensures reliable performance while maintaining high conductivity, thanks to its superior material composition and innovative features.
Application: Ideal for use in various electrical systems requiring a robust connection between aluminum and copper components.
Material: Composed of aluminum with a purity of ≥ 99.5% and copper with a purity of ≥ 99.9%, ensuring optimal conductivity and durability.
Features:
- Clear markings on the barrel to indicate the correct crimping location, compatible with DIN standard crimping dies.
- Epoxy resin applied to the contact area of copper and aluminum for enhanced protection.
- Prefilled with jointing compound for easy application and improved performance.

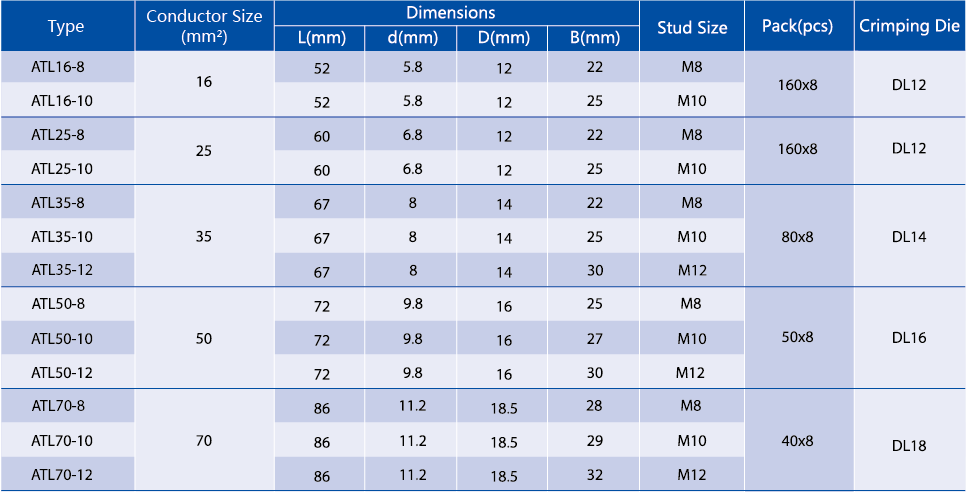

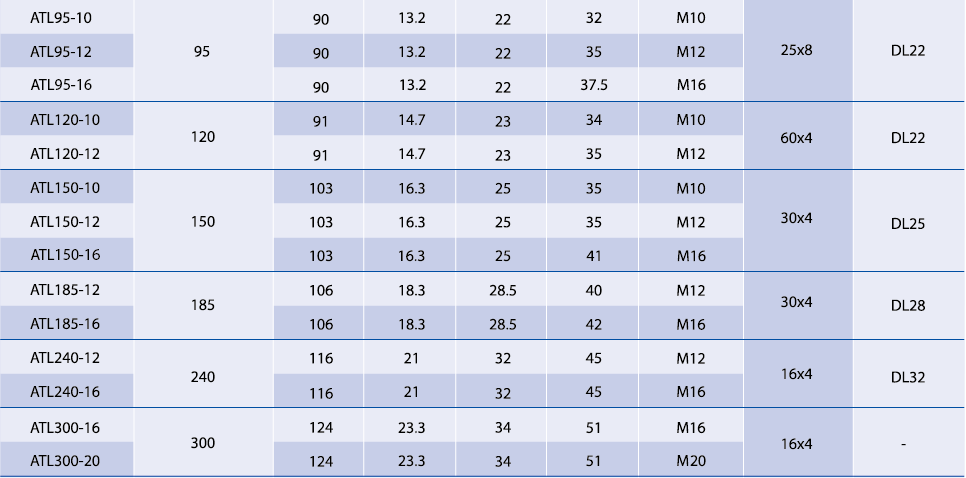

Specifications
| Attribute | Details |
|---|---|
| Material Composition | Al ≥ 99.5%, Cu ≥ 99.9% |
Additional Information
The ATL Bimetal Lug is an essential component for anyone working with electrical systems that require reliable connections between aluminum and copper conductors. Ensure that you follow proper installation guidelines to maximize performance and longevity.
