AUOTOMATIC sheet metal curving machine tile manufacturing plant tile making machinery
Inquire NowDescription
The manual sheet metal curving machine is an essential component for tile manufacturing plants, designed to efficiently create curved sheet metal structures. This robust machinery combines precision engineering with user-friendly operation, making it suitable for various steel plate types, including color steel plates. With customizable features to meet specific user requirements, this machine ensures high-quality production and operational efficiency.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.3-0.8 mm |
| Feeding Width | As users need |
| Processing Precision | Within 1.00 mm |
| Production Speed | 20-30 m/min |
| Roller Stand | 5 rows |
| Diameter | 70 mm |
| Main Power | 3 kW |
| Pump Power | 4 kW |
| Side Panel of Machine | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | Delta PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure of the Machine | 300 mm H-Beam |
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as a down payment, with the remaining 70% payable after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: A technician will be sent to your country for installation. The buyer is responsible for all costs, including visa, roundtrip tickets, accommodation, and a salary of $80/day.

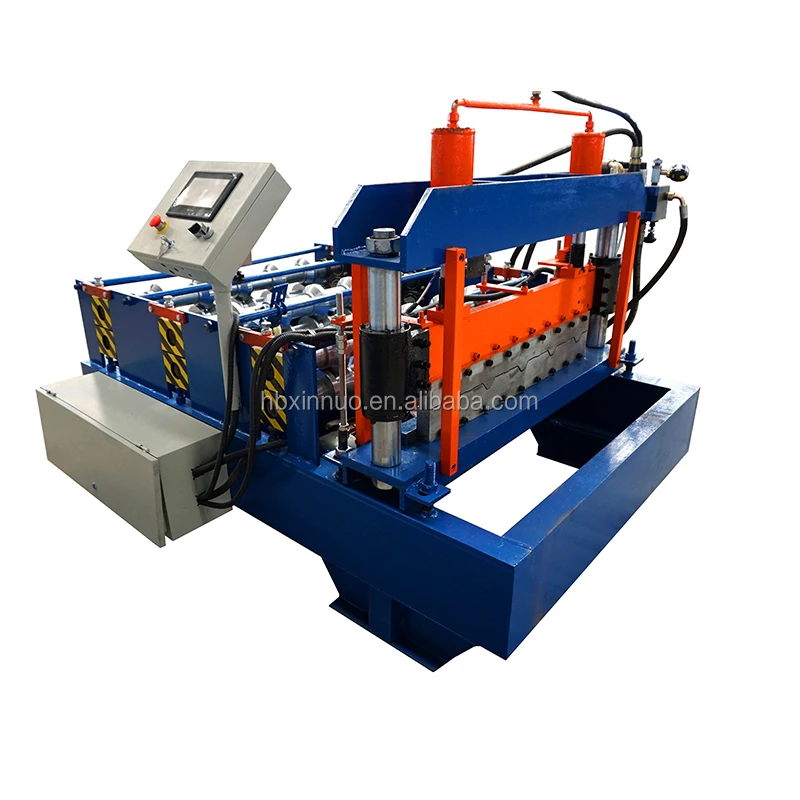

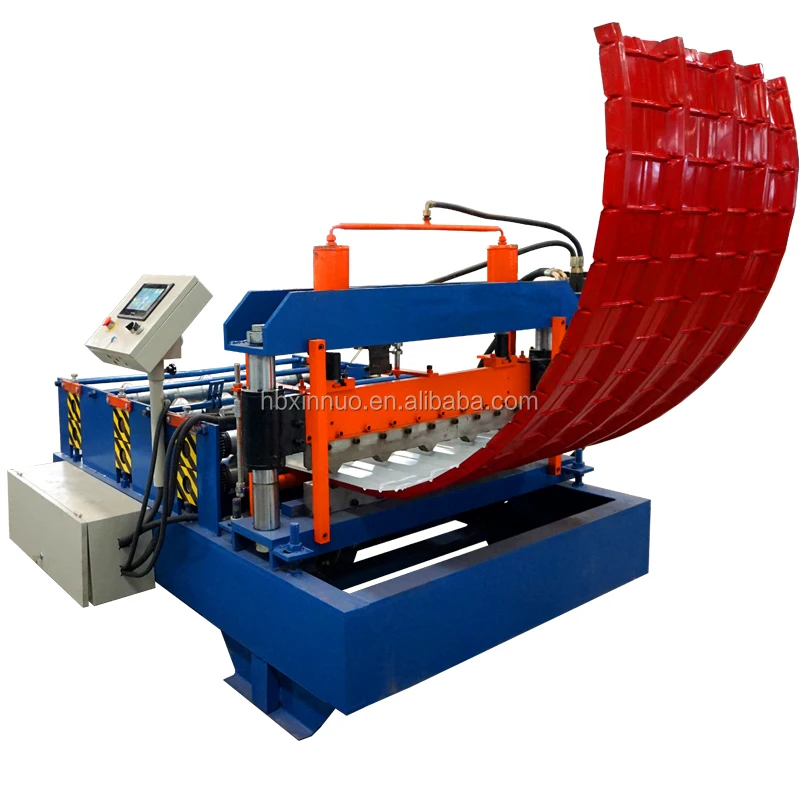

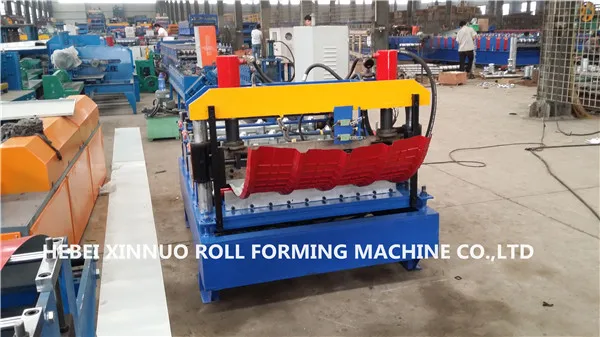

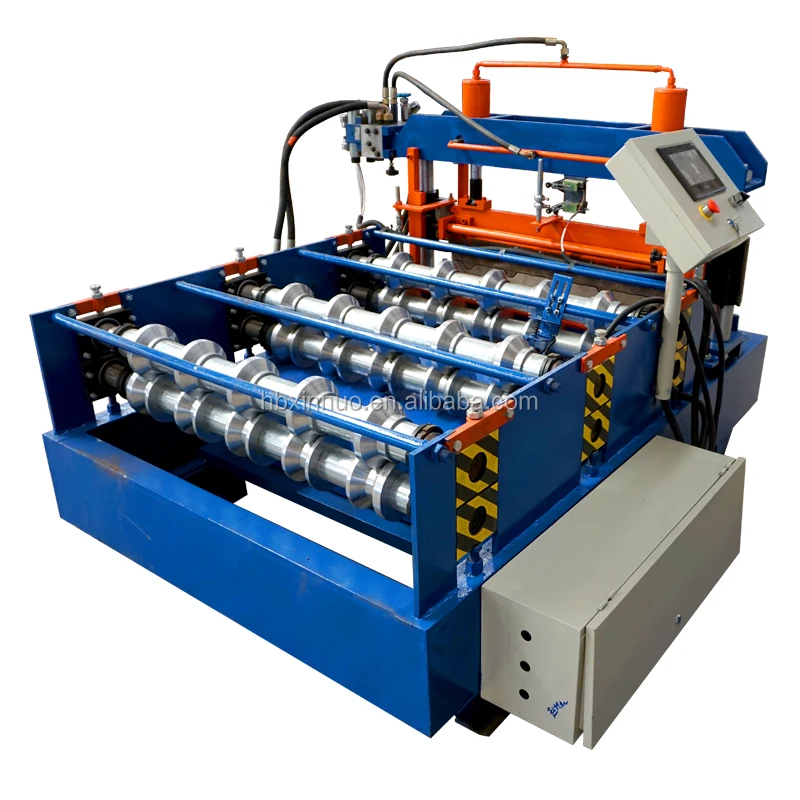

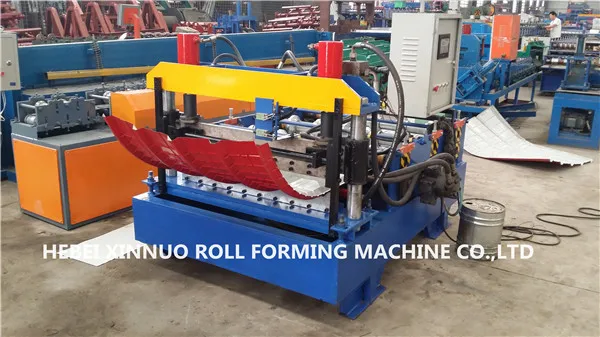

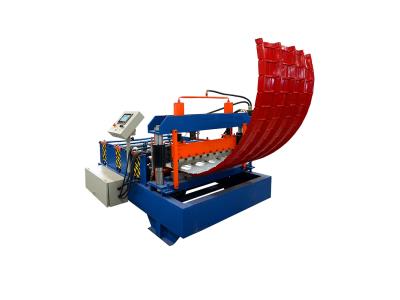

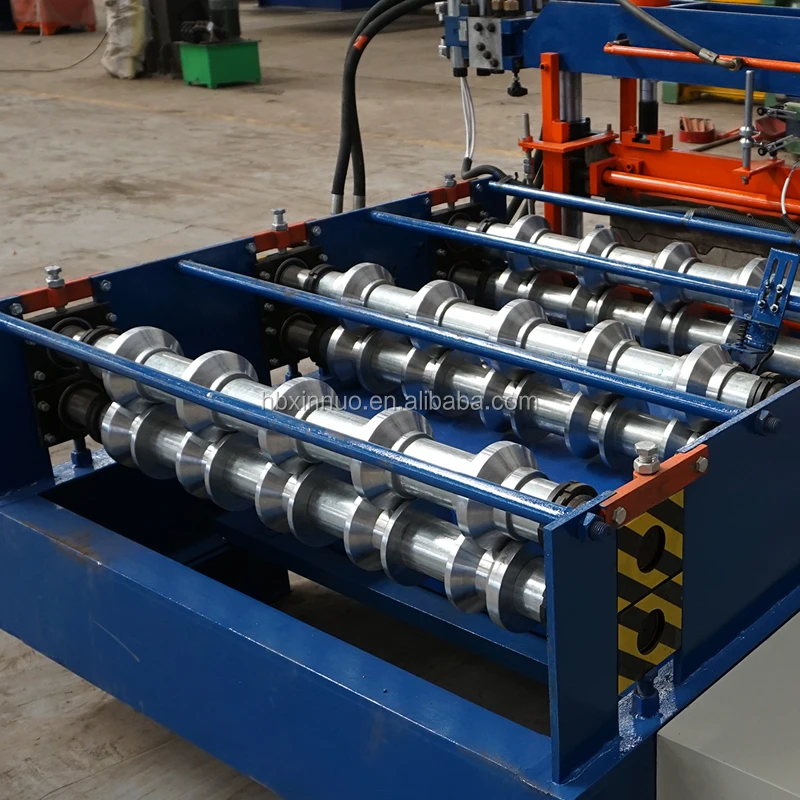

Product Images
