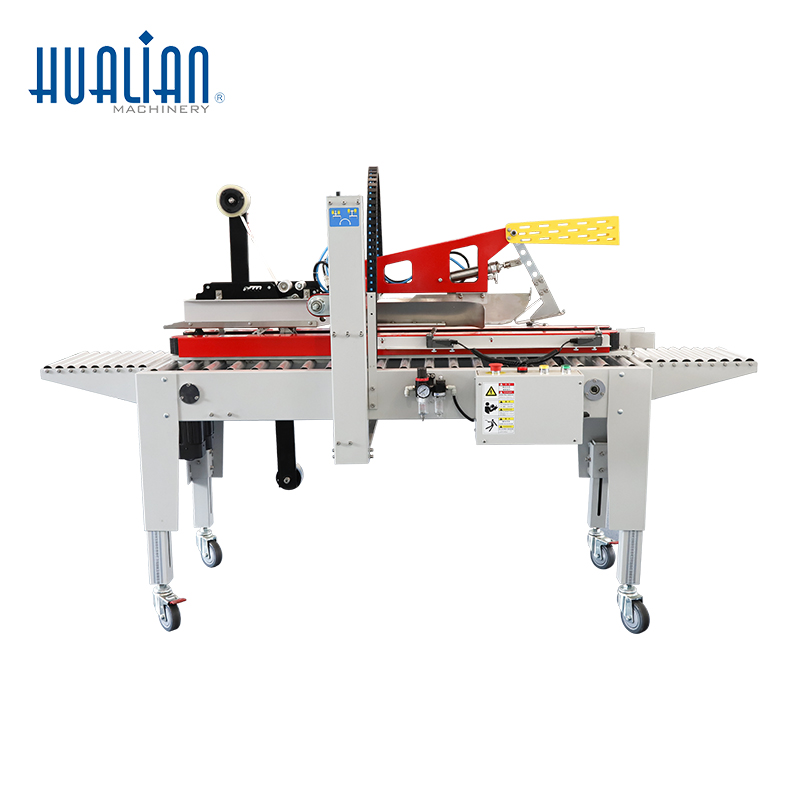

Auto Flap Carton Sealer
Inquire NowDescription
The Auto Flap Carton Sealer FXJ series is engineered for efficient carton sealing using adhesive tape. This machine stands out with its cost-effectiveness and high-speed operation, making it ideal for both integration into production lines or as a standalone unit. With adjustable conveyor belt and tape tension, it caters to a variety of carton types, whether soft or hard. The design allows for rapid folding of front, side, and rear flaps, ensuring a seamless sealing process. Features like interchangeable top and bottom tape heads, easy size changeovers, and automatic feeding streamline operations, while the model FXJ-Z offers convenient loading and unloading thanks to strategically placed brackets.
Specifications
| Parameter | Value |
|---|---|
| Model | FXJ-5050Z |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 260 |
| Air Compressor (Mpa) | 0.4-0.6 |
| Speed (m/min) | 22 m/min (25 cartons/min) |
| Max. Carton Size (L×W×H)(mm) | 600×500×500 |
| Min. Carton Size (L×W×H)(mm) | 180×160×180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 600-750 |
| Width of Adhesive Tape (mm) | 48, 60, 76 (optional) |
| External Dimensions (L×W×H)(mm) | 1830×920 (1450-1600) |
| Net Weight (kg) | 250 |
Additional Information
This Auto Flap Carton Sealer is designed for easy mobility with casters, enhancing its versatility in various production environments. The machine’s automatic features minimize the need for manual intervention, significantly improving productivity and efficiency in packaging operations.
