Automatic ceiling t-grids shaped steel bar frame metal stud and track t grid machine
Inquire NowAutomatic ceiling t-grids shaped steel bar frame metal stud and track t grid making machine
Automatic ceiling t-grids shaped steel bar frame metal stud and track t grid making machine
Product Description
|
Control System |
PLC Colored Touch Screen |
|
Main Frame |
18mm steel welding |
|
Main Power |
5.5 kw |
|
Pump Power |
3 kw |
|
Power Supply |
380V, 3-Phase,50Hz or any |
|
Forming Speed |
12m/min |
|
Roll Station |
14 stands |
|
Shaft Diameter |
42mm |
|
Feeding Thickness |
0.3-0.8mm |
|
All technical parameters can be changed, according to user’s need. |
|

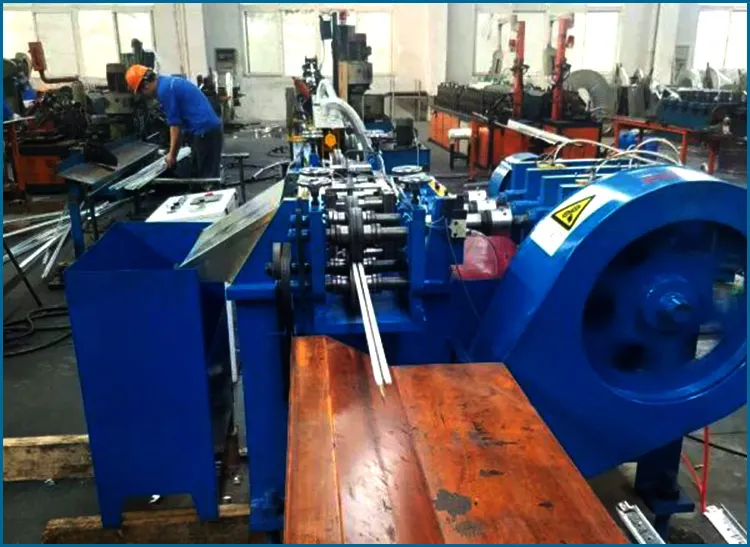

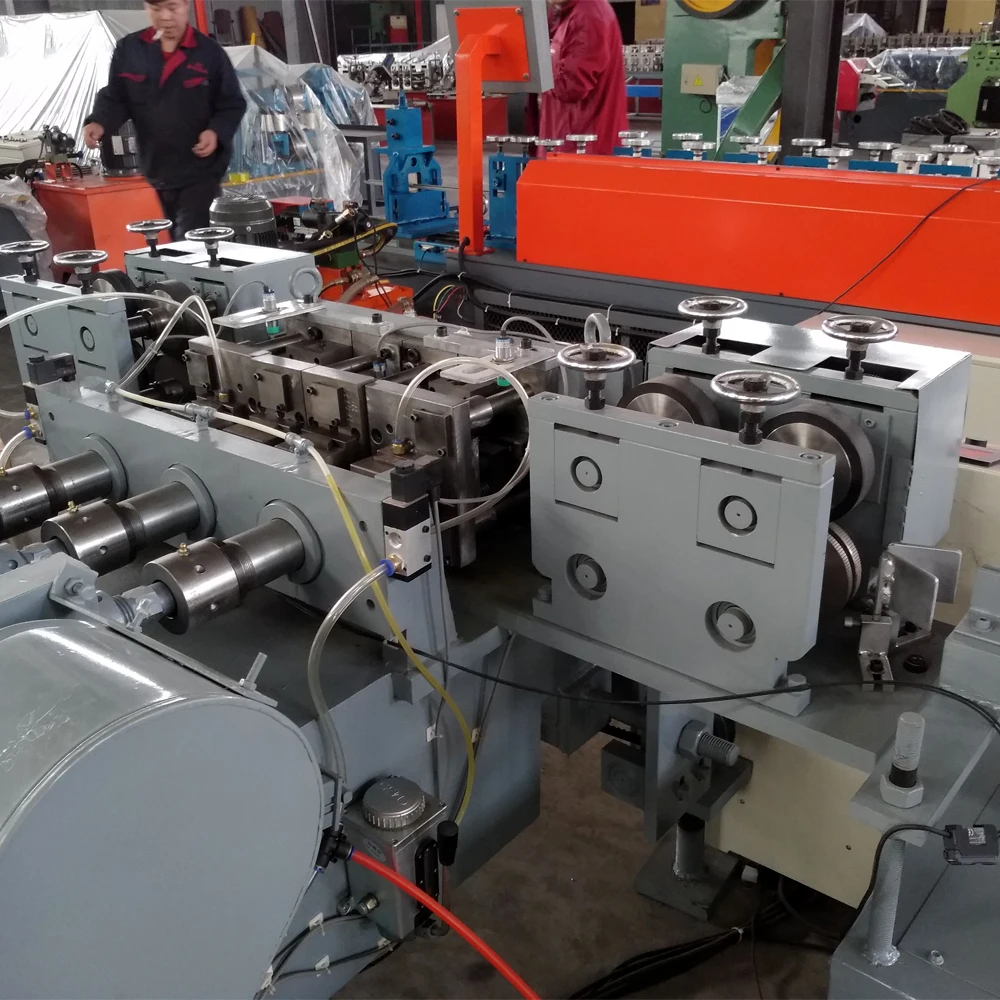

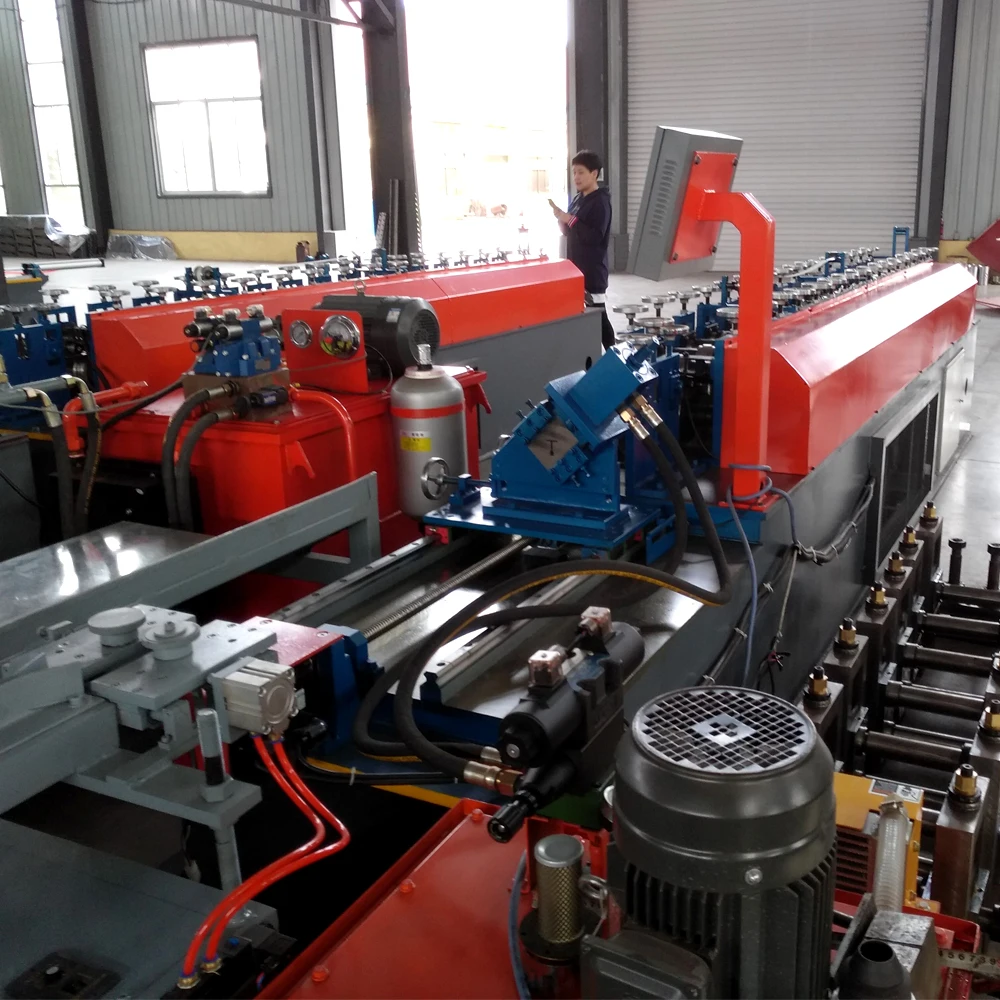

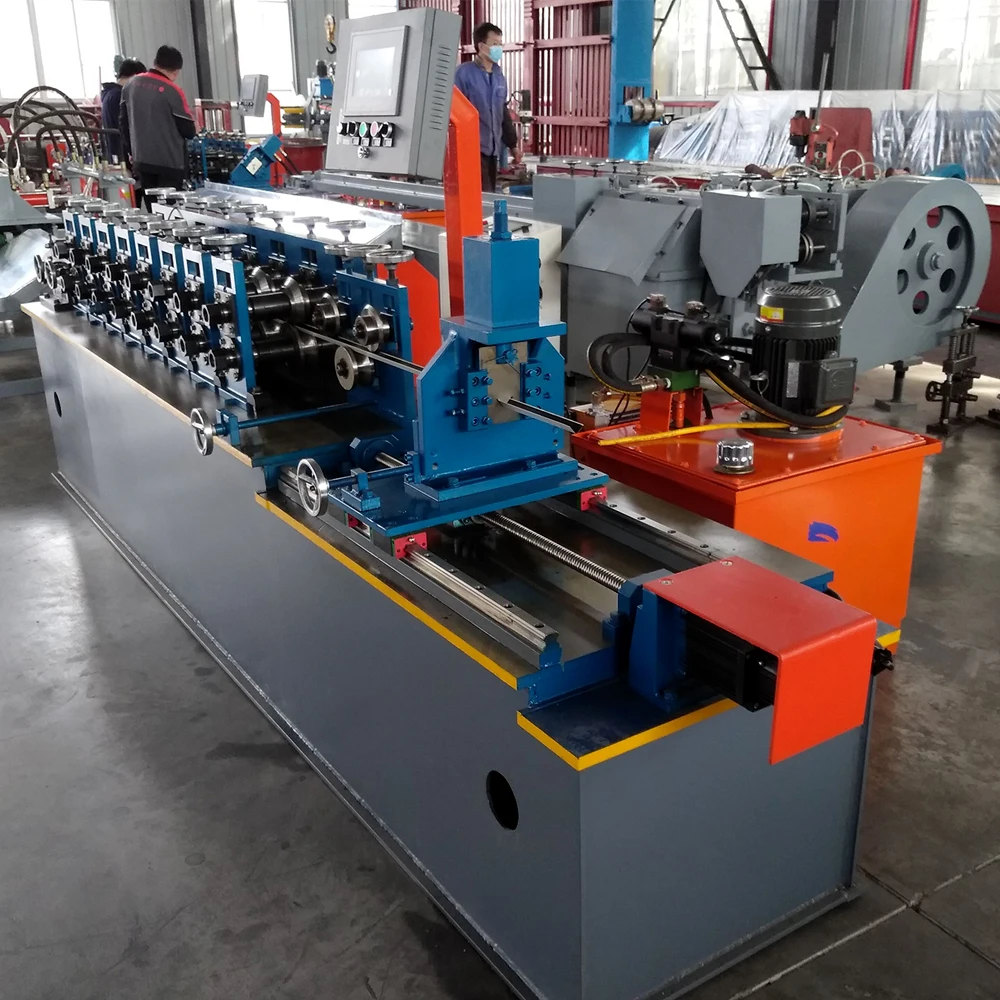

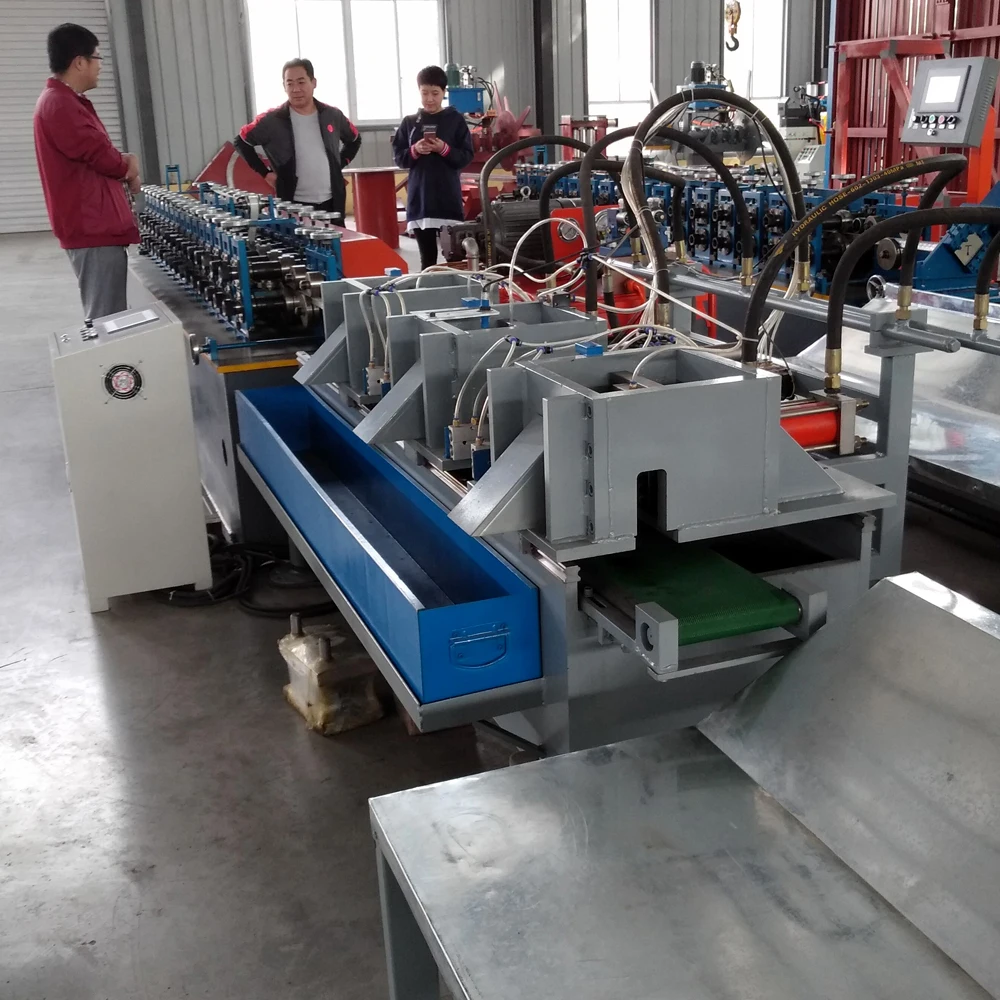

Product Pictures
Packaging & Shipping
|
Packaging Details: |
Main machine is nude, the computer control box is packed with wooden frame. |
|
Main machine is nude in the container, the computer control box is packed with wooden packaging. |
|
|
Delivery Detail: |
20 days |
Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
FAQ
