Automatic ceiling t-grids shaped steel bar frame metal stud and track t grid machine
Inquire NowDescription
Automatic ceiling t-grids shaped steel bar frame metal stud and track t grid making machine is an advanced solution for the efficient production of ceiling grids. This fully automated machine is designed to create high-quality steel bar frames and metal studs, ensuring precision and durability in every unit produced. It features a PLC colored touch screen control system that enhances user experience and operational efficiency. The main frame is constructed with 18mm steel welding, providing robust support for the production process. With adjustable parameters to meet specific user requirements, this machine is ideal for businesses looking to streamline their manufacturing process.
Specifications
| Attribute | Details |
|---|---|
| Control System | PLC Colored Touch Screen |
| Main Frame | 18mm steel welding |
| Main Power | 5.5 kw |
| Pump Power | 3 kw |
| Power Supply | 380V, 3-Phase, 50Hz or any |
| Forming Speed | 12m/min |
| Roll Station | 14 stands |
| Shaft Diameter | 42mm |
| Feeding Thickness | 0.3-0.8mm |
| All technical parameters can be changed, according to user’s need. | |

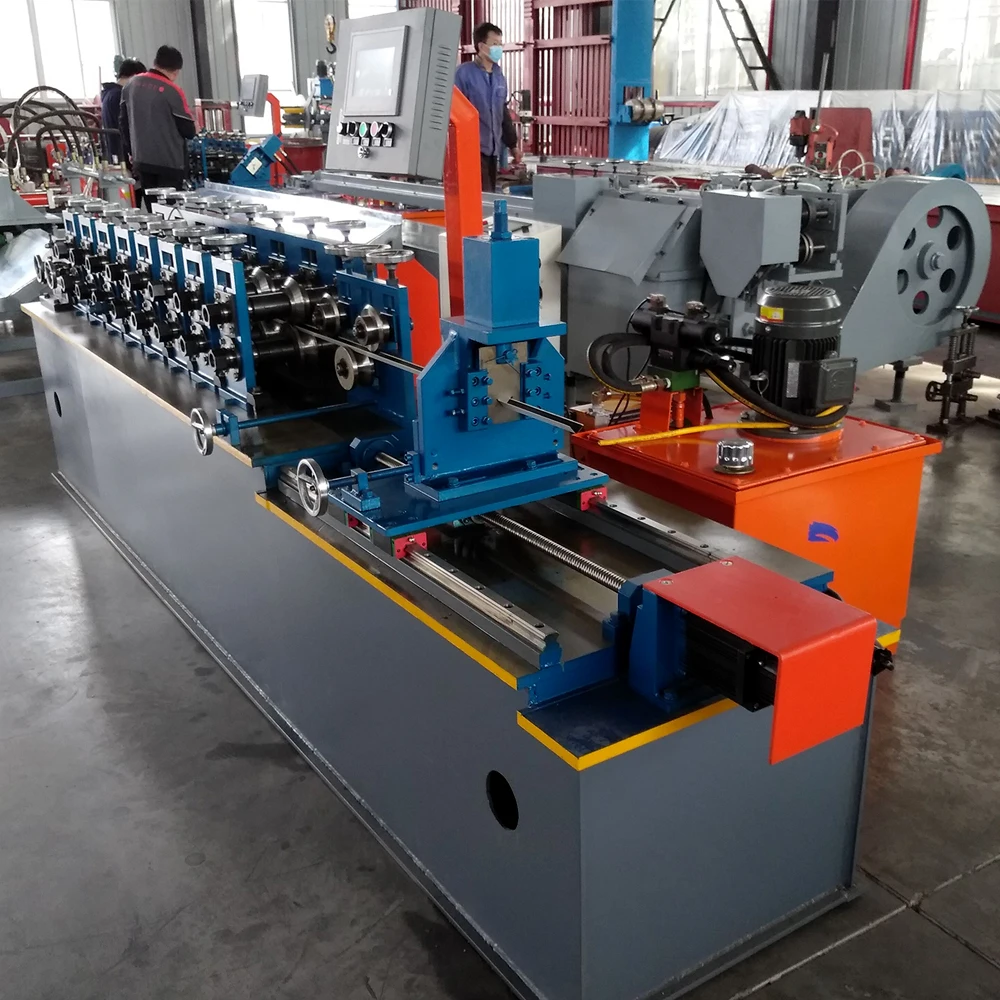

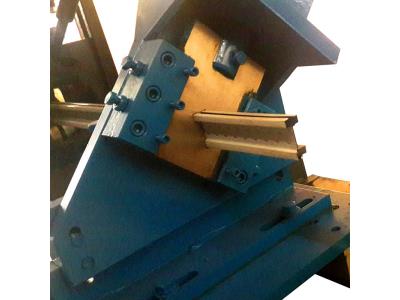

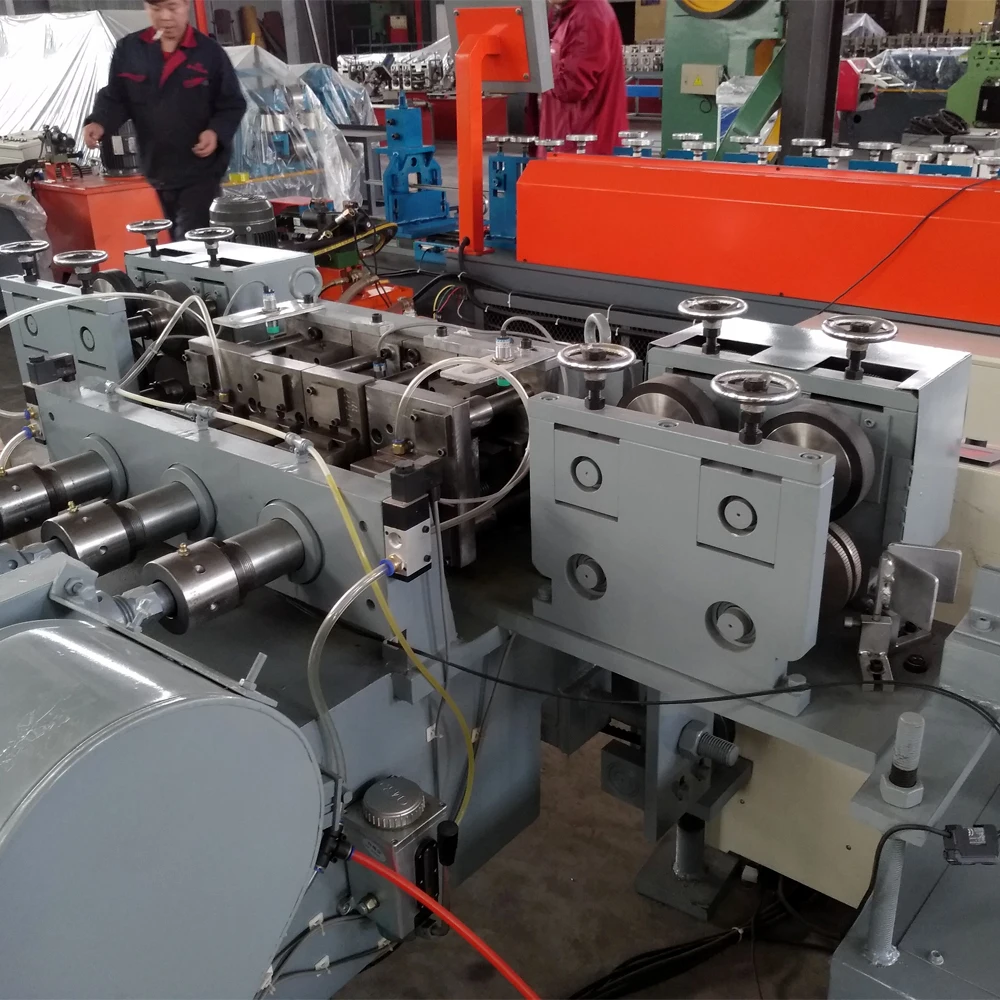

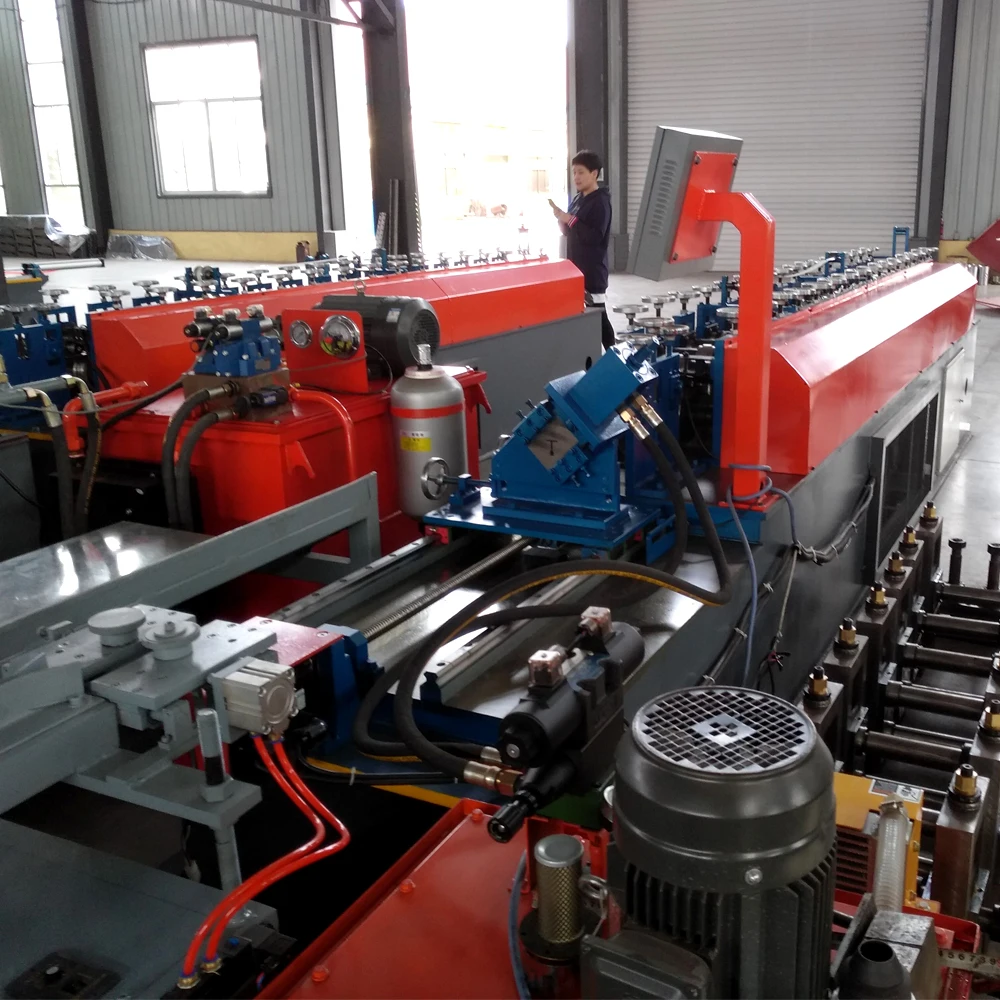

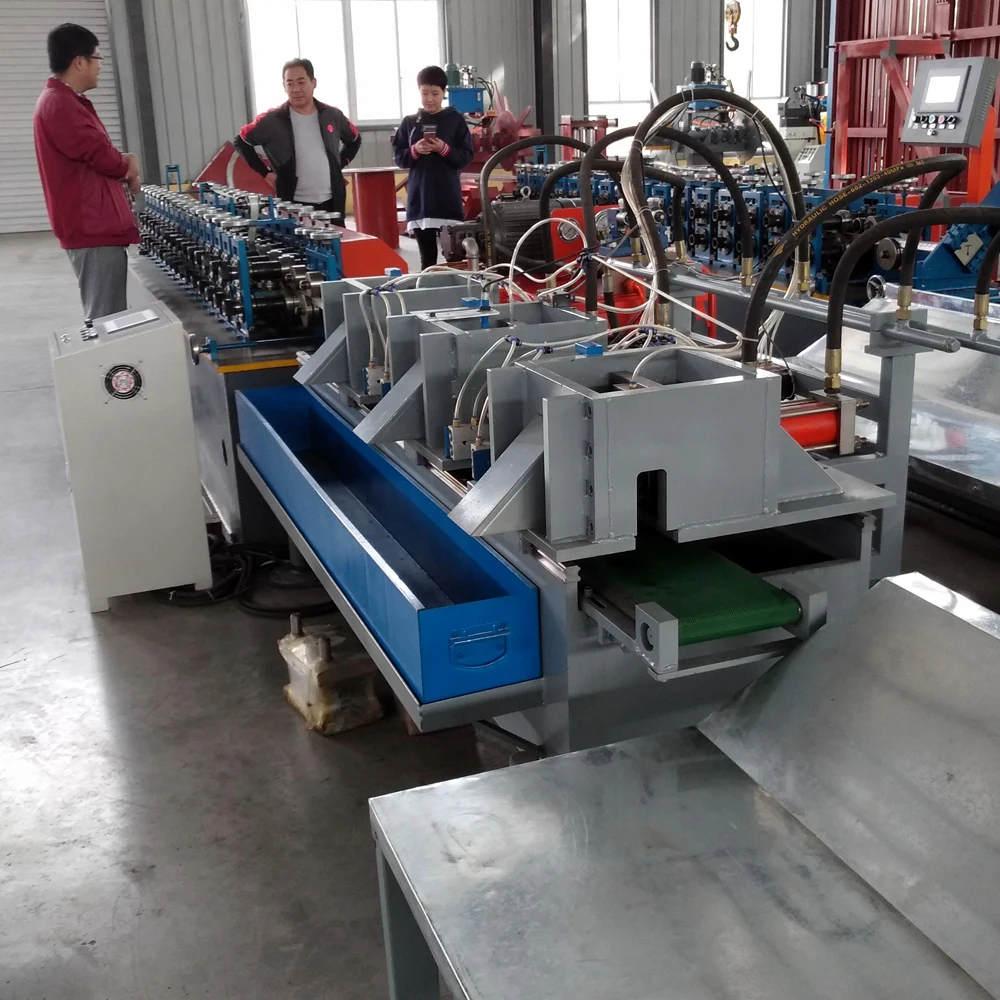

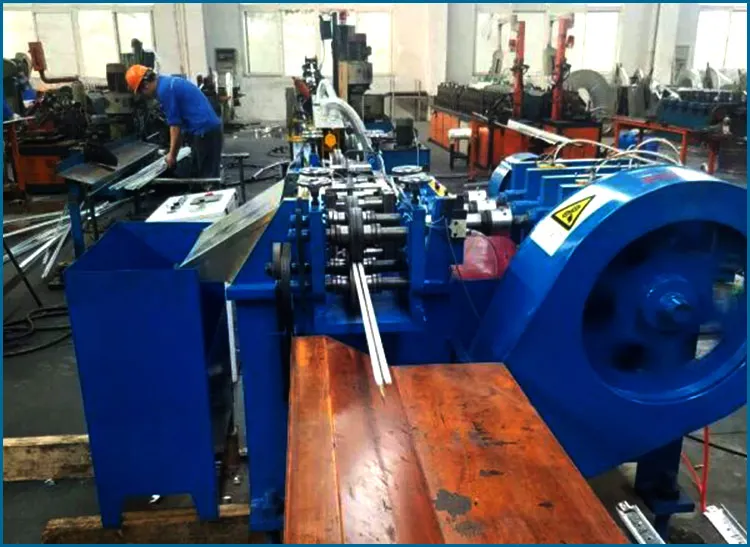

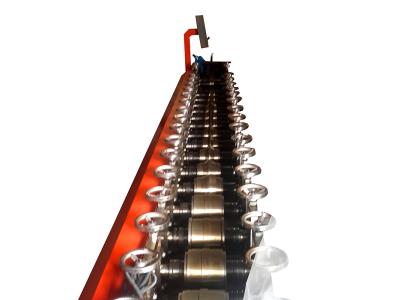

Product Pictures
