Description
The Automatic Change Width Light Keel Roll Forming Machine is a highly efficient and versatile equipment designed for producing light keels with ease. This machine is capable of processing various profiles including angle, omega, stud, and track, as well as 38 main and 50 furring. Its automatic width change feature ensures seamless transitions between different product specifications, thereby enhancing productivity and minimizing downtime.
Final Products for Reference:
- Angle
- Omega
- Stud
- Track
- 38 Main Furring
- 50 Furring
Specifications
| Feature | Details |
|---|---|
| Material | Galvanized strip |
| Thickness | 0.2-1 mm |
| Roller Stations | 10-14 rollers |
| Speed | 25 m/min |
| Shaft Material and Diameter | 45# steel with chromed, 50 mm |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Main Power | 5.5 KW |
| Driven | Chain |
| Width Change | Automatic |
Additional Information
Machine Technical Process:

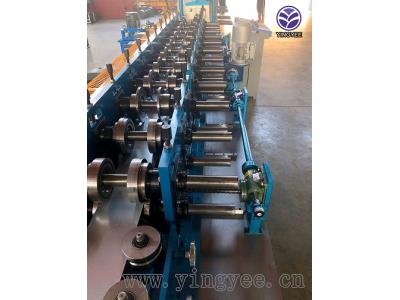

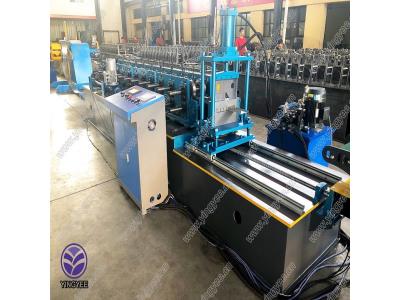

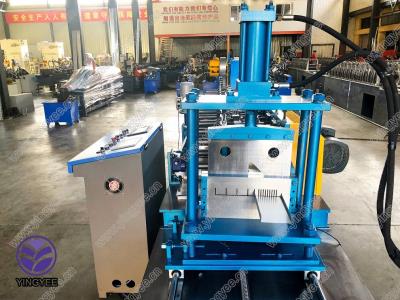

Images
