Automatic Cold Steel Profile C Z Purlin Roll Forming Machine/U Structrial Purlin Making
Inquire NowDescription

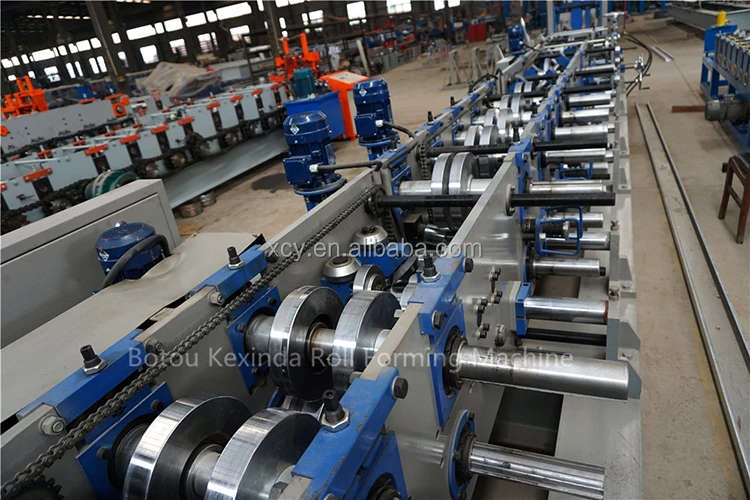

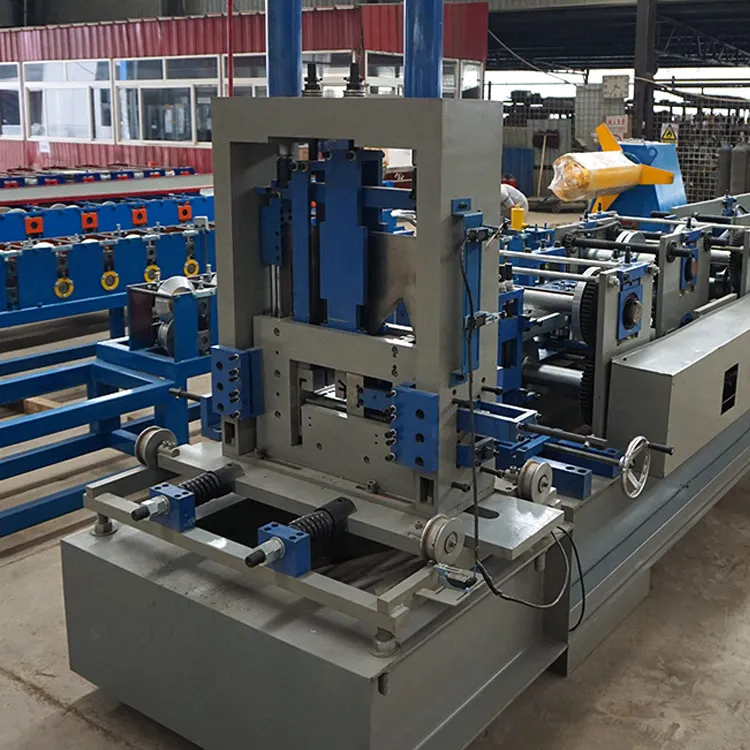

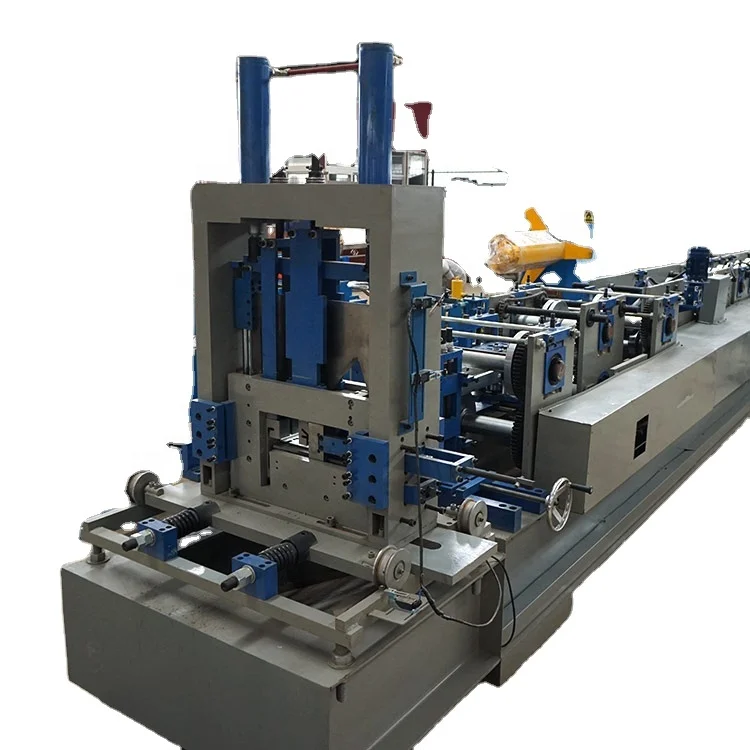

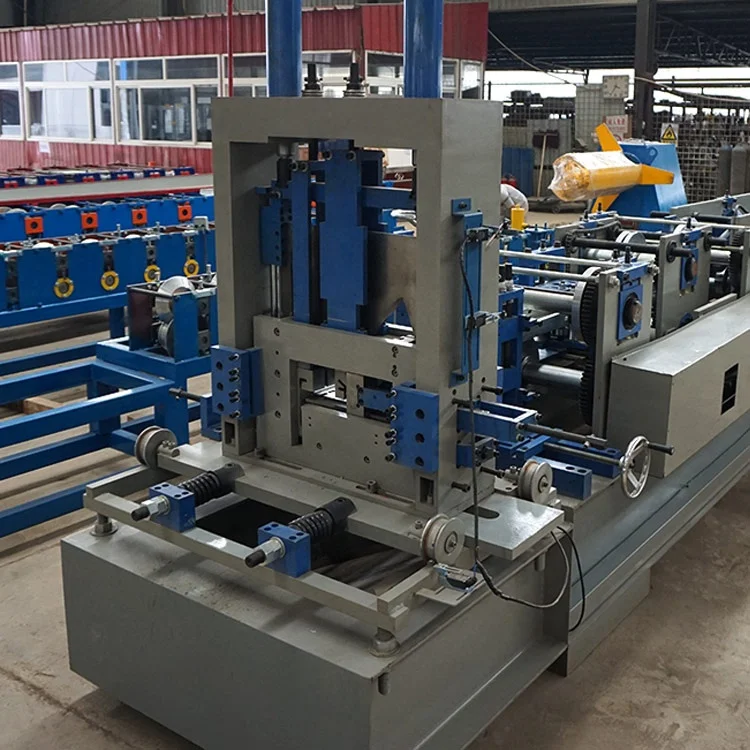

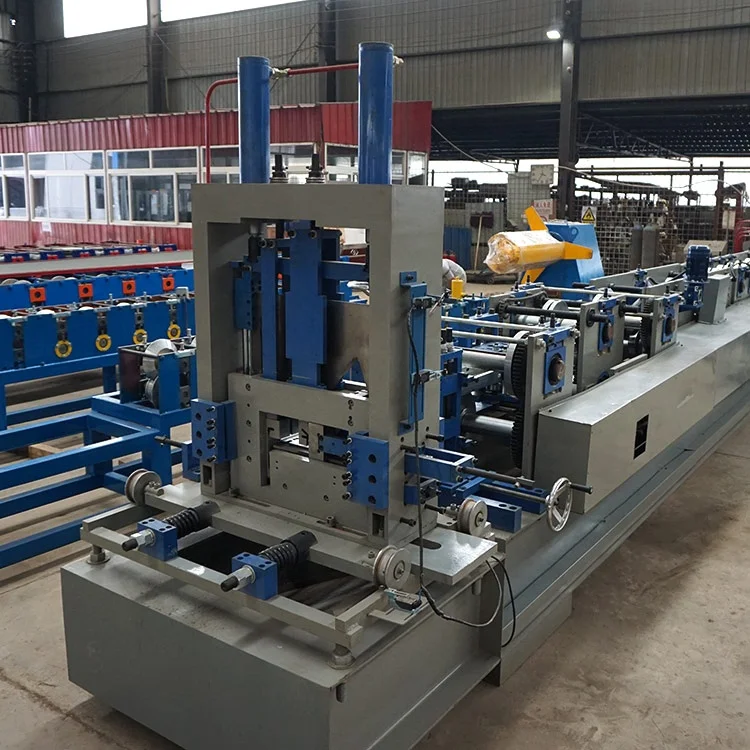

The Automatic Cold Steel Profile C Z Purlin Roll Forming Machine is designed for efficient production of U structural purlins. This advanced machinery features a robust rolling forming system, utilizing a phase asynchronous motor with a power of 15KW. It operates at a speed range of 10-14.8m/min, making it perfect for high-demand manufacturing environments. The machine is constructed with high-quality materials, including GCr15 for the rollers and 40Cr for the main shaft, which undergoes high-frequency grinding and heat treatment for enhanced durability. With 18 roller groups, it ensures precision and reliability in forming processes.
Additionally, this machine is equipped with hydraulic punching and cutting systems, allowing for seamless operation before the roll forming stage. The hydraulic power for these functions is 5.5KW, providing efficiency and effectiveness for various applications.
Specifications
| Attribute | Details |
|---|---|
| Main Motor Type | Phase Asynchronous Motor |
| Motor Power | 15KW |
| Speed of Forming | 10-14.8m/min |
| Material of Roller | GCr15 |
| Number of Roller Groups | 18 |
| Material of Main Shaft | 40Cr (with high frequency grinding & heat treatment) |
| Diameter of Main Shaft | 70mm |
| Punching Type | Hydraulic Punching |
| Cutting Type | Hydraulic Cutting |
| Cutting Material | Cr12 |
| Hydraulic Power | 5.5KW |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, the best replacement parts will be supplied. However, if the damage is due to operational errors, the buyer will be responsible for the shipping fees.
After-sale Service: A technician can be sent to your country to fix the machine. The buyer is responsible for all costs, including visa, round-trip ticket, suitable accommodation, and a salary of $100/day.
