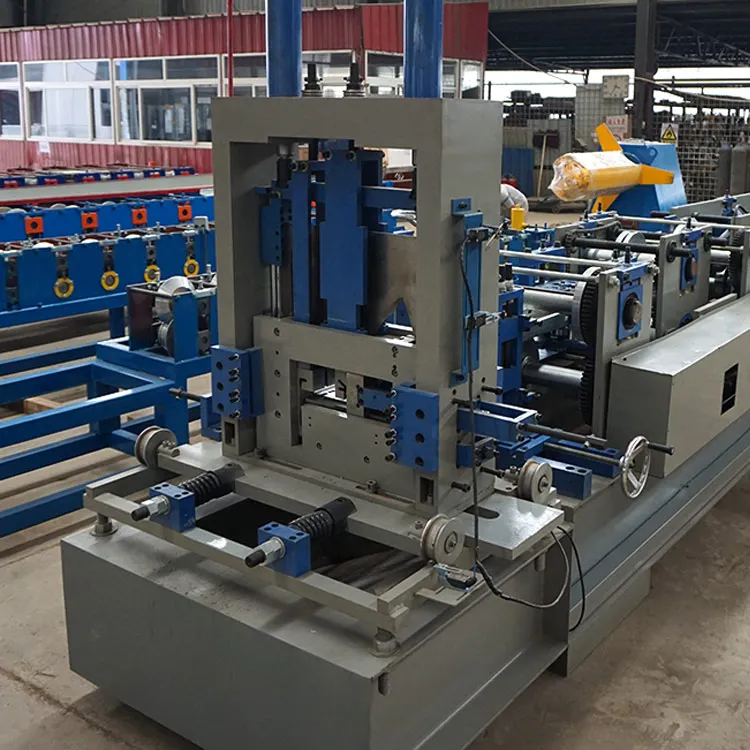

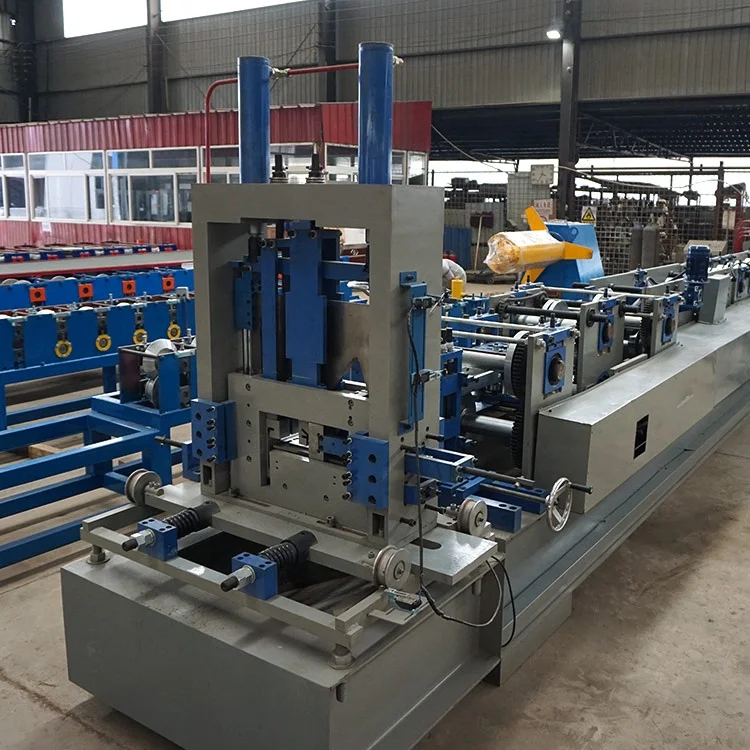

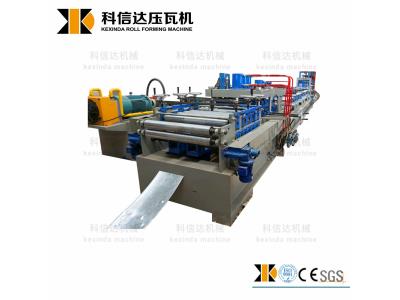

Automatic Cold Steel Profile C Z Purlin Roll Forming Machine/U Structrial Purlin Making
Inquire NowDescription

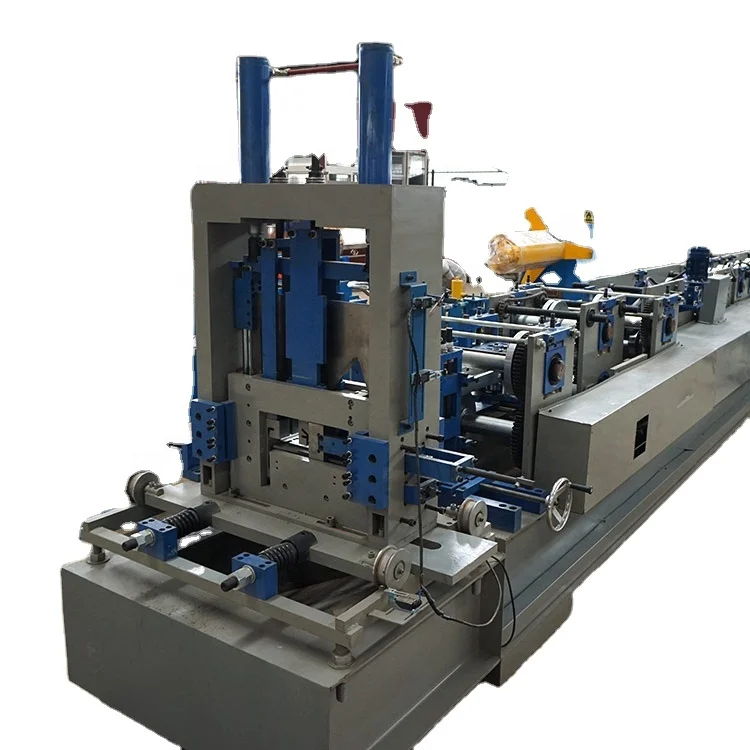

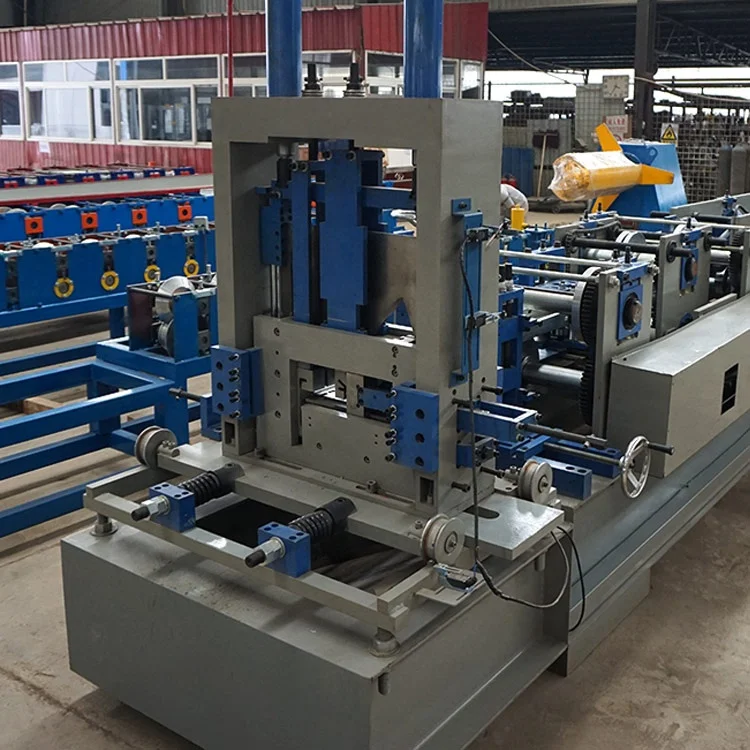

The Automatic Cold Steel Profile C Z Purlin Roll Forming Machine is designed for efficient production of U-structural purlins and C-shaped profiles. This advanced machine features a robust rolling forming system powered by a 15KW phase asynchronous motor, capable of achieving a forming speed of 10-14.8m/min. Crafted with high-quality materials, including GCr15 rollers and a 40Cr main shaft treated for durability, it ensures precision and longevity in operation. The machine also integrates hydraulic punching and cutting systems, allowing for pre-roll forming processing that enhances productivity.
Specifications
| Attribute | Details |
|---|---|
| Main Motor Type | Phase Asynchronous Motor |
| Motor Power | 15KW |
| Speed of Forming | 10-14.8 m/min |
| Material of Roller | GCr15 |
| Number of Rollers | 18 Groups |
| Material of Main Shaft | 40Cr (High Frequency Grinding & Heat Treatment) |
| Diameter of Main Shaft | 70mm |
| Punching Type | Hydraulic Punching |
| Cutting Type | Hydraulic Cutting |
| Cutting Material | Cr12 |
| Hydraulic Power | 5.5KW |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, replacement parts will be provided. However, if the damage is due to operational error, the buyer is responsible for shipping fees.
After-sale Service: Technicians can be sent to your location for repairs, with the buyer covering all costs including visa, round-trip tickets, accommodation, and a daily salary of $100.
