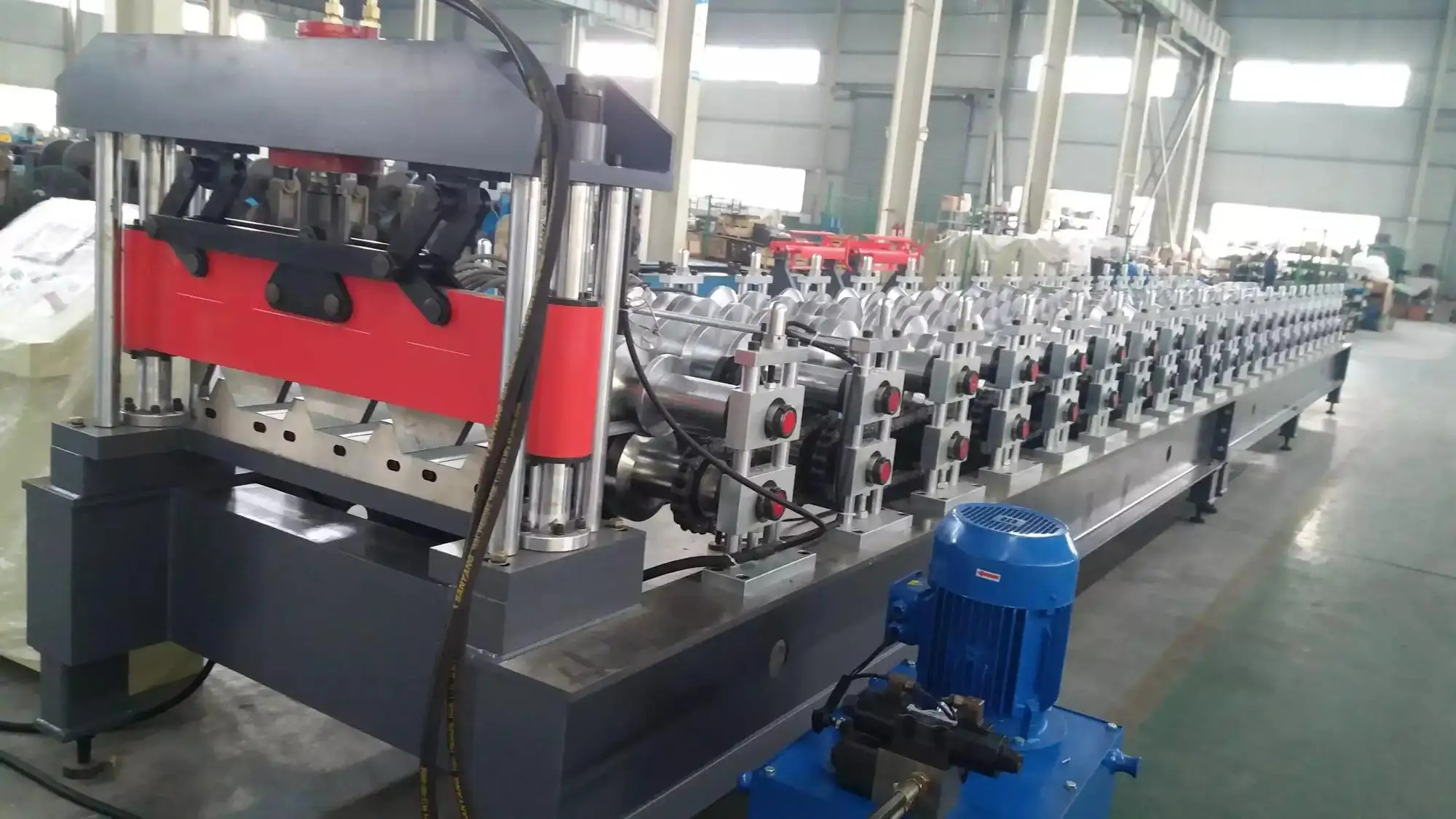

Automatic Hangzhou China Wall/Roof/Door Panel Roll Forming Machine
Inquire NowDescription

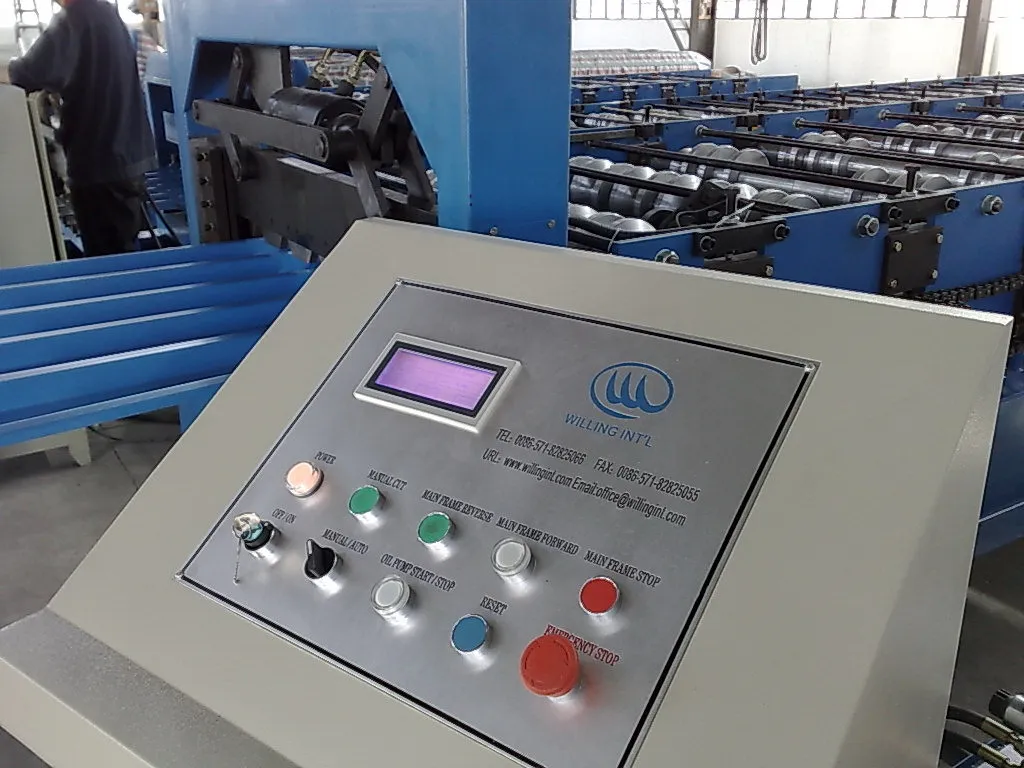

The Automatic Hangzhou China Wall/Roof/Door Panel Roll Forming Machine is a state-of-the-art solution for efficient and high-quality panel production. This machine is designed to cater to the building material industry, streamlining the manufacturing process with its advanced technology. With a production capacity of 12-15 meters per minute, it ensures a swift operation without compromising on quality. Built to last, this machine is suitable for creating wall and roofing accessories, utilizing colored glaze steel for durability and aesthetic appeal. Its user-friendly interface, featuring both touch screen and button controls, makes it accessible for operators of all skill levels.
Specifications
| Attribute | Details |
|---|---|
| Type | Wall and Roofing Accessories |
| Tile Type | Colored Glaze Steel |
| Voltage | 380V or as required |
| Dimension (L*W*H) | 6500 x 1300 x 1100 mm |
| Weight | About 1 Ton |
| Rolling Thickness | 0.2-1.0 mm |
| Feeding Width | 1220 mm, 915 mm, 900 mm, 1200 mm, 1000 mm, 1250 mm |
| Production Capacity | 12-15 m/min |
| Warranty | 1 Year |
| Certification | CE ISO |
| After-sales Service Provided | Online support, Field installation, commissioning and training, Video technical support |
Additional Information
This machine is equipped with a Mitsubishi PLC for superior control and operation, ensuring precision in the manufacturing process. The hydraulic system operates at a pressure of 12 Mpa, and the main motor power is rated at 4 KW, making it an energy-efficient choice for your production needs. The machine is designed for easy maintenance, with video technical support and field repair services available post-warranty.
