Automatic Hangzhou China Wall/Roof/Door Panel Roll Forming Machine
Inquire NowDescription
Introducing the Automatic Hangzhou China Wall/Roof/Door Panel Roll Forming Machine, designed for efficiency and precision in steel roof panel production. This robust machine excels in forming high-quality roofing tiles with both pre-painted and galvanized steel coils, ensuring durability and aesthetic appeal. With a maximum forming speed of up to 6 meters per minute and advanced PLC control, it streamlines operations while maintaining superior output quality. The machine is built to withstand rigorous usage, making it an ideal choice for manufacturers looking to enhance their production capabilities.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Steel roof tile forming machine |
| Material | Pre-painted & galvanized steel coil |
| Thickness (mm) | 0.3-0.6 mm |
| Tield Stress (Mpa) | Q235-345 |
| Max. Forming Speed (m/min) | 2-3; 5-6 |

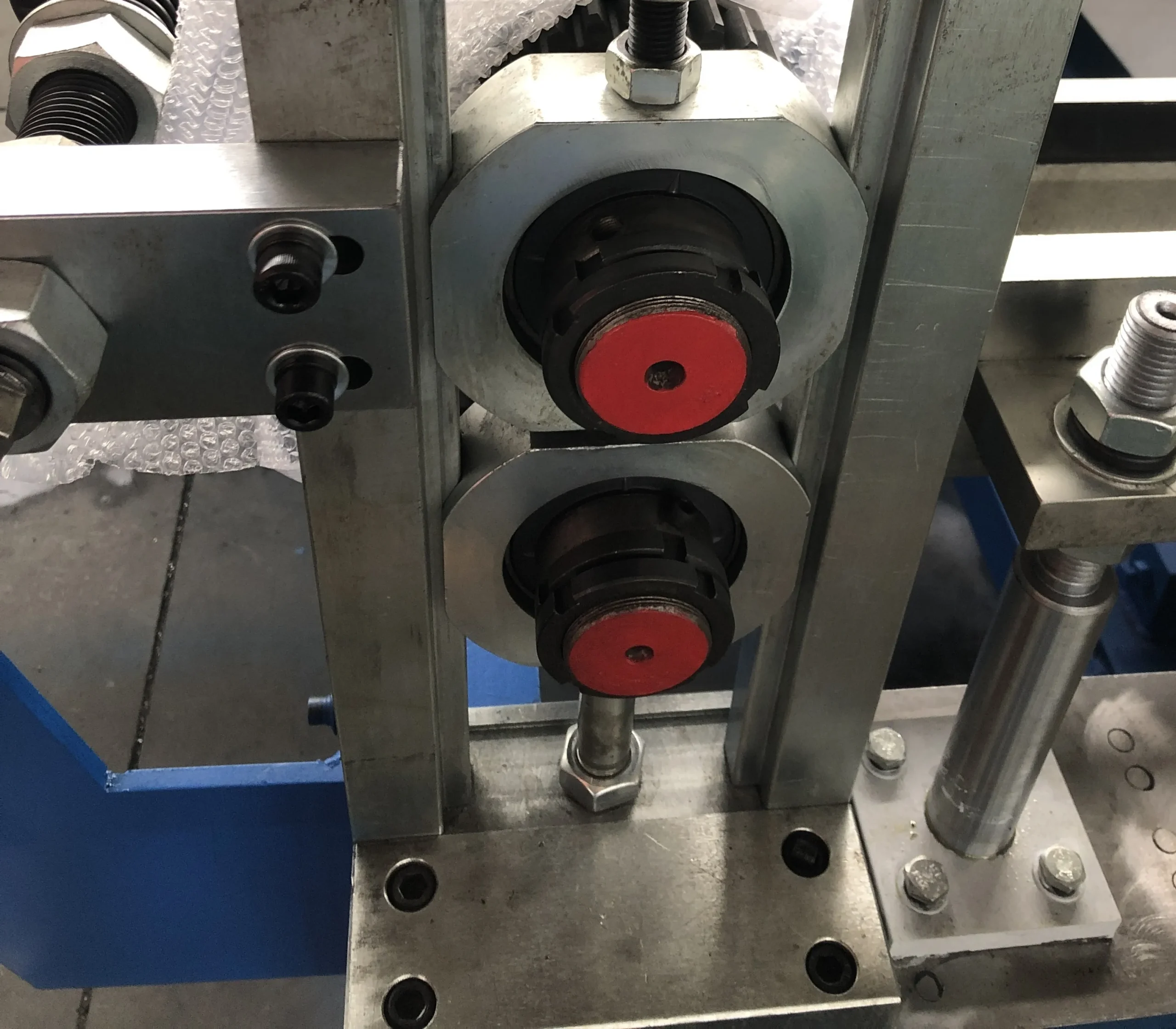

| Roller Material | #45 steel with hard chrome treatment |
| Roller Driven Type | Chain transmission |
| Controller | PLC |
| Operation | Touch screen and button |
| Hydraulic System Pressure (Mpa) | 12 |
| Main Motor Power (KW) | 5.5 |
| Hydraulic Station Motor Power | 5.5 |
| Dimension (L*W*H) | About 8000*1500*1500 mm |
| Weight (KG) | About 8000 |
Additional Information
Our Service:
- Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr x 7 days per week
- Give technical suggestions
- Test the machine before shipment
- Provide technical guidance related to using the machine
- Supply one-year warranty period for the machine
- Provide spare parts at cost price after warranty period
- Collect feedback for machine performance
- Provide long-term technical assistance
FAQ:
- Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer. - Q2: Do you have overseas engineers?
A2: Yes, we provide overseas engineers and technical training. - Q3: Do you provide customization?
A3: Sure, we can design equipment according to your request. - Q4: How does your factory ensure quality control?
A4: We comply with ISO 9001, and every machine is tested before shipment. - Q5: How can I trust you that machines passed testing before shipping?
A5: We record testing videos for your reference and welcome visits for personal testing. - Q6: Do you have after-sales support?
A6: Yes, we provide advice and skilled technicians for installation or maintenance. - Q7: Can I visit your factory to check machines on-site?
A7: Yes, we welcome customers to visit our factory. - Q8: What’s your payment terms and delivery time?
A8: We prefer 30% deposit, with the balance after inspection before delivery. Delivery takes about 60-70 days. - Q9: How to visit your company?
A9: We can pick you up from Hangzhou airport or railway station.
