Automatic Heat Sealer For Heavy-Duty Plastic Bags
Inquire NowDescription

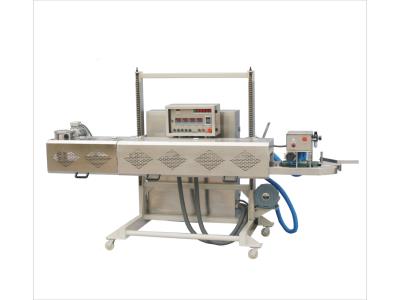

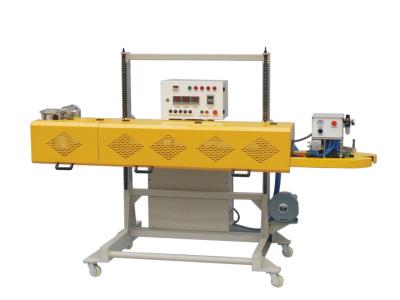

The FBH series Automatic Heat Sealer is designed for heavy-duty sealing of thick PE or PP plastic bags, as well as laminated bags made from paper/PE and AL/PE film. This high-performance machine is ideal for a variety of industries, including chemical, medical, food, and feed production. With its ability to continuously seal bags at impressive speeds, the FBH series ensures efficient packaging operations.
Different models, such as FBH-32 and FBH-42, are available to accommodate varying materials and bag thicknesses. The machines feature a Poly Tetra Fluoro Ethylene (TEFLON) sealing belt, allowing for rapid cooling of the bags after sealing, resulting in smooth and high-quality seals. Optional devices like bag edge trimmers and dedusters enhance the functionality of the heat sealers.
Specifications
| Parameter | FBH-42 | FBH-42D |
|---|---|---|
| Voltage (V/Hz) | (3PH) AC 380/50 | (3PH) AC 380/50 |
| Gross Power (KW) | 5 | 5.5 |
| Transmission Power (KW) | 0.75 | 0.75 |
| Heating Power (KW) | 0.5×8 | 0.5×8 |
| Deduster Power (KW) | – | 0.6 |
| Sealing Speed (m/min) | 0-12 | 0-12 |
| Film Material | PE, PP, film | PE, PP, film |
| Bag Thickness (mm) | ≤0.8 | ≤0.8 |
| Sealing Width (mm) | 8-10 | 8-10 |
| Height From Sealing Center to the Floor (mm) | 750-1450 | 750-1450 |
| Temperature Range (℃) | 0-400 | 0-400 |
| Air Source Pressure (Mpa) | 0.6 | 0.6 |
| Cooling Type | Air cooling | Air cooling |
| Deduster | × | √ |
| External Dimension (L×W×H) (mm) | 3015×950×1800 | 3015×950×1800 |
| Net Weight (kg) | 350 | 350 |
Additional Information
The FBH series machines are equipped with features that enhance sealing efficiency and quality, making them a reliable choice for various packaging needs. Optional accessories can further improve operational effectiveness.
