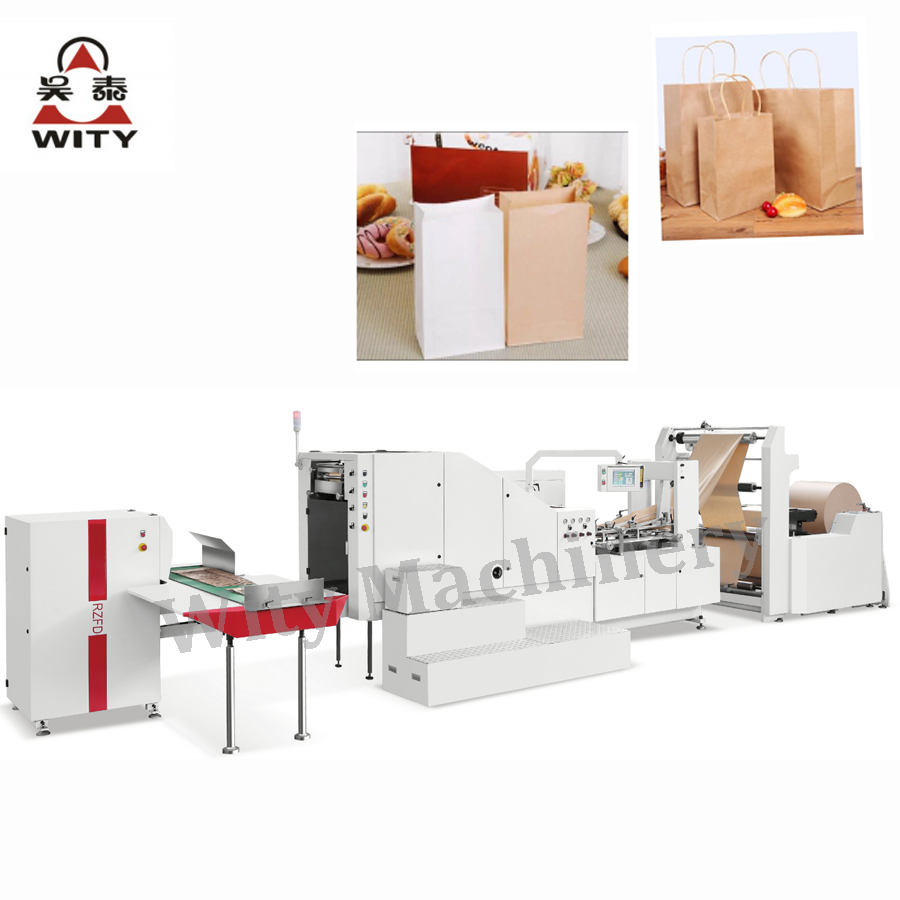

AUTOMATIC HIGH SPEED SQUARE BOTTOM PAPER BAG MACHINE

Inquire Now

Description

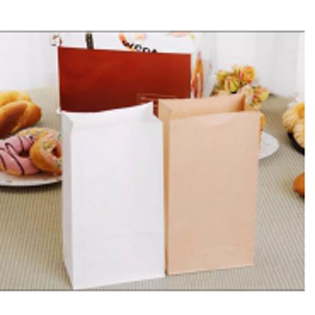

The Automatic High Speed Square Bottom Paper Bag Machine is a state-of-the-art equipment designed for efficient production of high-quality paper bags. This machine operates using paper rolls, either blank or printed, and integrates several advanced features including automatic center forward gluing, printing tracking, fixed length cutting, and bottom folding and gluing processes. With its capability to produce various types of paper bags such as leisure food bags, bread bags, and dried fruit bags, this environmentally friendly machine ensures convenience and stability while boosting operational efficiency.

Specifications

Model FD-450 FD-330
Paper Bag Length 270-530mm 270-530mm
Paper Bag Width 220-450mm 120-320mm
Paper Bag Bottom Width 80-180mm 60-180mm
Paper Thickness 80-160g/m2 60-150g/m2
Machine Speed 30-180 pcs/min 30-220 pcs/min
Paper Roll Width 660-1290mm 380-1050mm
Roll Paper Diameter 1200mm 1200mm
Inner Diameter of Paper ¢76mm ¢76mm
Machine Power 380V/3Phase; 15kw 380V/3Phase; 15kw
Machine Weight 9000kg 8500kg
Machine Size 10000*3800*1900mm 10000*3700*1900mm

Additional Information

  • The machine is capable of producing bags quickly and efficiently, ensuring high productivity.
  • Ideal for operations requiring environmentally friendly packaging solutions.
