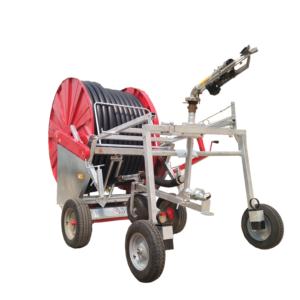

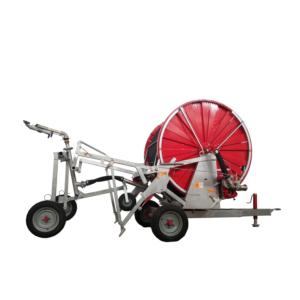

Automatic Hose Reel Sprinkler Machine 75/250
Inquire NowDescription
The Automatic Hose Reel Sprinkler Machine 75/250 is a cutting-edge irrigation solution designed for efficiency and ease of use. This advanced machine features a flow-distributor turbine with a built-in bypass, ensuring optimal water distribution for your garden or agricultural needs. Its robust 4-speed gearbox operates in an oil bath for enhanced durability, while the PTO allows for quick rewinding of the hose. The automatic braking system simplifies unwinding, and the speed compensator adjusts based on the winding diameter, making it user-friendly.
Safety is paramount, with an anti-slackening device and automatic stop feature if the hose winds unevenly. The electronic speed measuring device and digital clock provide precise control over your irrigation schedule. The machine is equipped with a worm screw hose turning system for micrometric regulation, ensuring accuracy in watering. Built with a hot-dip galvanized structure and a painted reel, it guarantees longevity and resistance against the elements.
Specifications
| Model | PE Pipe Diameter × Length (mm × m) | Effective Length (m) | Flow Rate of Sprinkler (m³/h) | Pressure of Inlet (MPa) | Weight of Machine (kg) | Weight (Without Water) (kg) |
|---|---|---|---|---|---|---|
| 75/250 | 75 × 250 | 250 | 14-34 | 0.55-1.0 | 1730 (With Water) | 1140 |
Additional Information
This machine includes a flexible rubber hose for supply, complete with necessary connections. Its adjustable trolley track and wheel height ensure compatibility with various terrains, making it a versatile choice for all users.
