large size
high precision
large power
fast cutting speed
long service life

Model: SH-G16100 LASER CUTTING ENGRAVING MACHINE
Applicable Materials

Applied materials:

Plastic,wood,jade,crystal,rubber,plexiglass,wooder board,resin,rubber,bamboo product and other non-metal materials
Applicable Industry :

Mainly used for the engraving and cutting of little artistic works,such as engraved portraits,badges,breast cards and vorious engraved packages etc..

Technical Parameters :

Laser Power 100w(reci brand is optional)

Laser Type Hermetic CO2 glass tube

Power Supply AC220±10% 50HZ/AC110±10% 60HZ

Working Area 1600*1000MM

Max Moving Speed 0-40000mm/min

Worktable Fixed/ up/down worktable

Locating Precision <0.01 mm

Min Shaping Character Character:3*3mm,letter:2*2mm

Resolution Ratio ≤4500 dpi

Control Configuration DSP

Data Transfer Interface USB (offline)

System Environment WINDOWS 2000/ XP/ Vista/ Win7

Cooling Way Water cooling

Graphic Format Supported Files which CoreDraw.Photoshop.AutoCAD can identify

Compatible Software CoreIDraw,AutoCAD

Cutting Thickness 0-10 mm (depends on different materials)

Color Separation Separation of cutting up to 256 colors

Sloping Engraving Yes,slop can be designed discretionarily

Cuts off the Water Supply the Protection Yes

Machine Dimension 1480*1000*1170 mm/1570*1000*1170mm

Package Dimension 1600*1080*1250 mm/1700*1180*1350mm

Net Weight 200 kg
Gross Weight 360 Kg

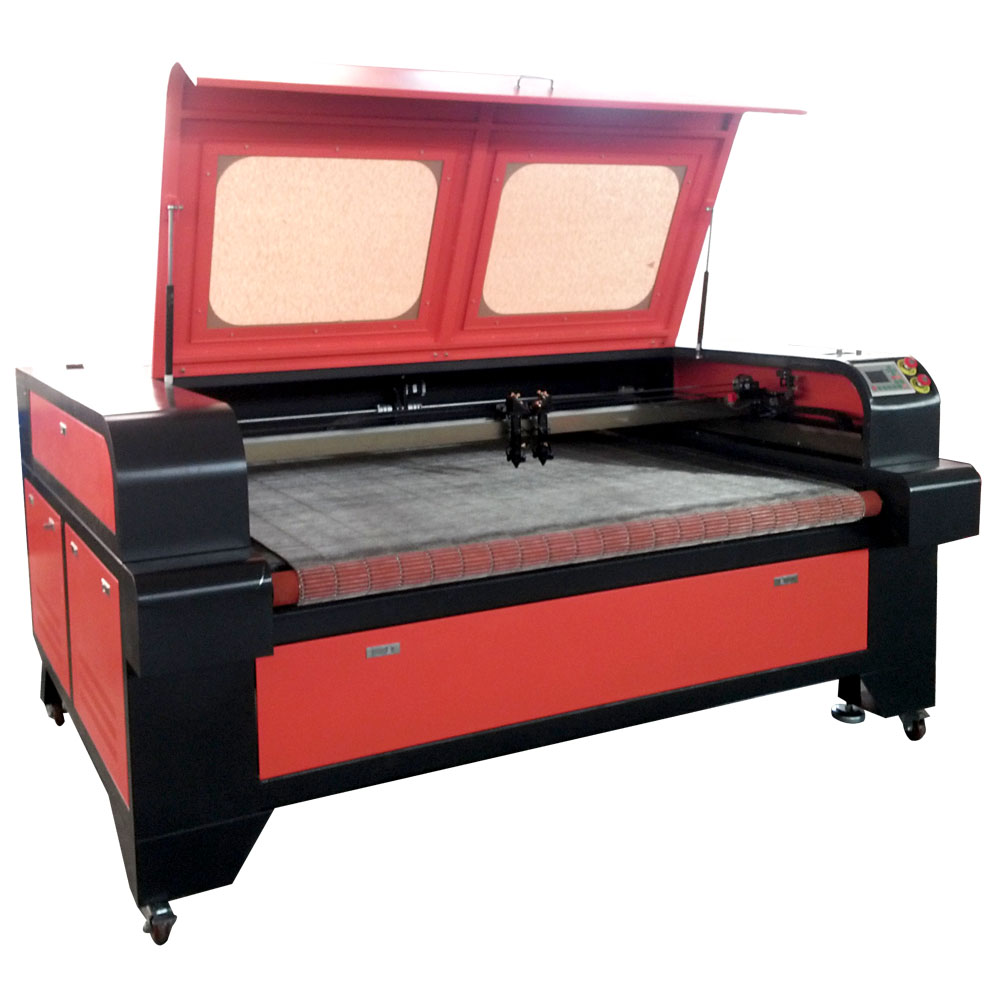

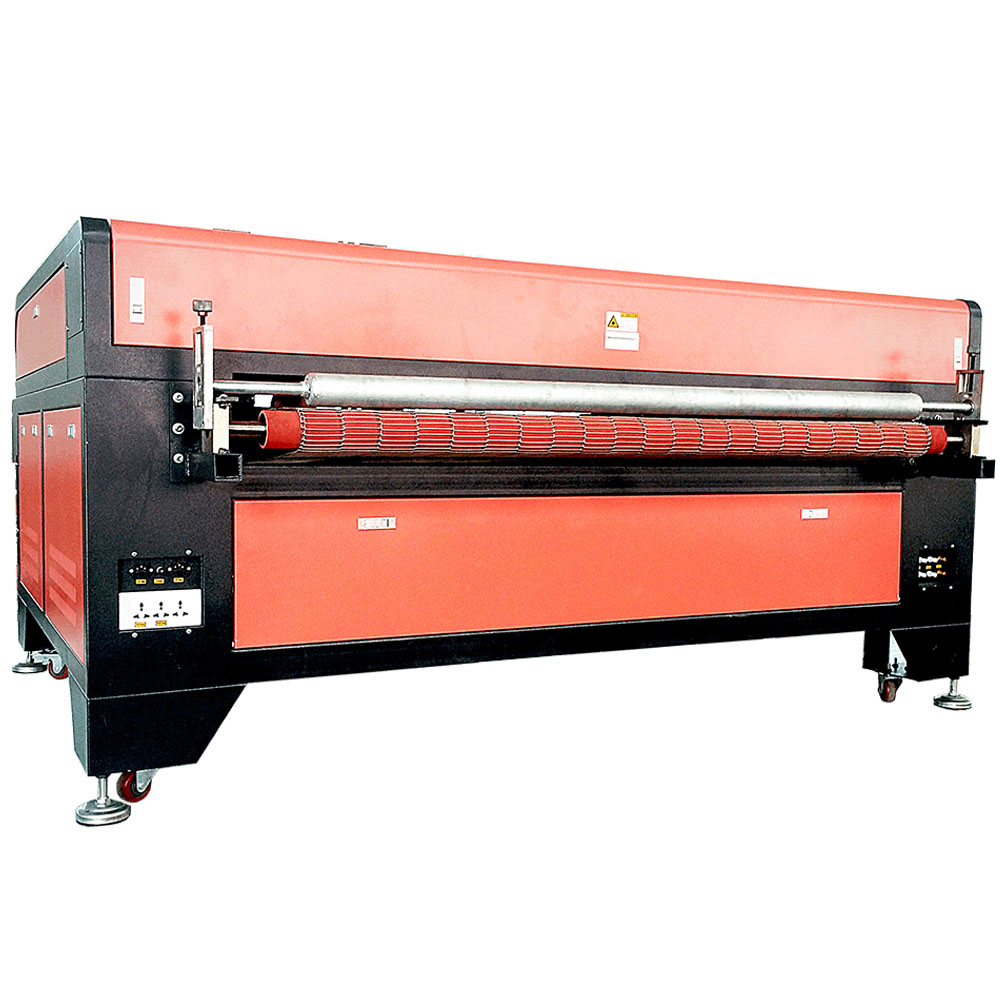

Machine pictures:
