Description

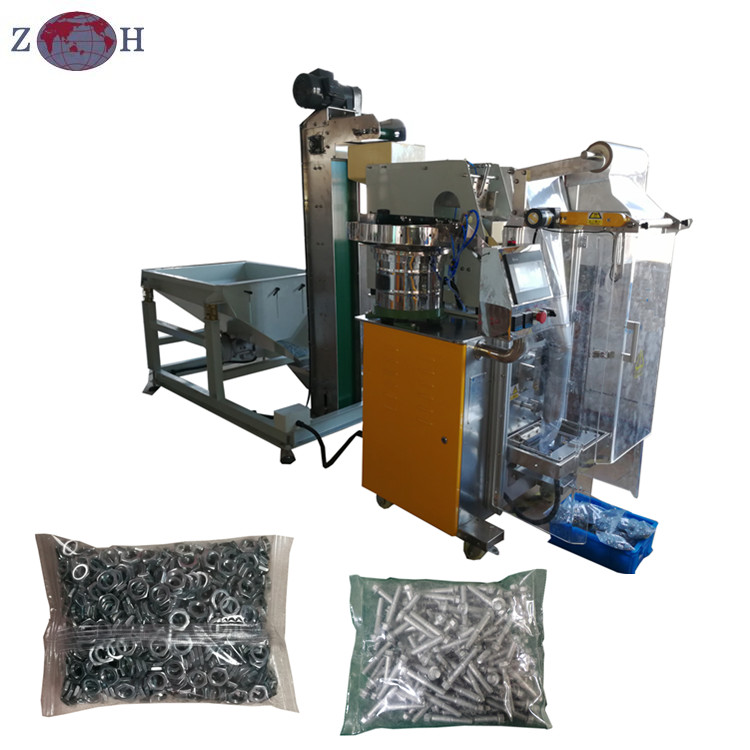

The Automatic Package Machine with Weighing Counting Function is designed for efficient and precise packaging of products such as nails, with lengths ranging from 50-100mm. This advanced machine streamlines the packing process by utilizing a PLC control system and a user-friendly touch screen for data input. Ideal for carton packing, it accommodates up to 5kg per carton, ensuring fast and reliable output.

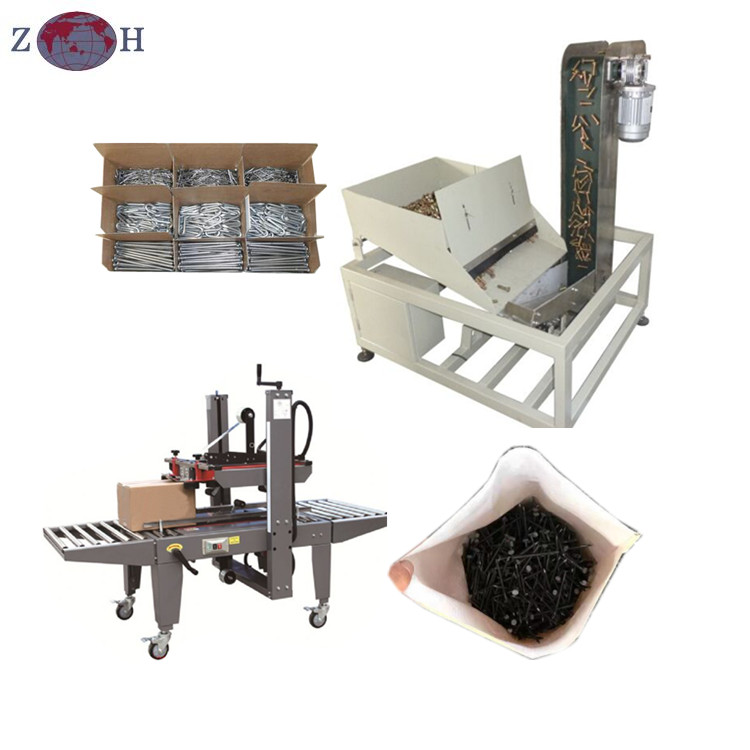

Its features include self-diagnosis for breakdowns, enhanced safety measures, and easy maintenance. The machine operates with a belt conveyor that supports manual loading and unloading, while optional automatic carton opening and sealing functions provide additional convenience.
Specifications
| Item | Data |
|---|---|
| Machine code | FY-B02 |
| Packing material | Carton |
| Range | 1-5kg/carton |
| Output | 3-8 cartons/minute |
| Total power | 4kW |
| Electrical supply | AC220V, 50Hz |
| Air source | Air pressure: 0.6-0.8MPa Air flow: 0.3m3/min |
| Machine dimension | 6000 x 1500 x 3000 mm |
Additional Information
The configuration of the machine includes high-quality components from renowned brands, ensuring durability and reliability. Key components include:
| Name | Brand |
|---|---|
| PLC | Taiwan |
| Touch screen | Taiwan |
| Temperature-controlled meter | Chinese |
| FOS (fiber optic sensor) | OPTEX |
| Cylinder | AirTAC/SNS |
| Magnetic valve | AirTAC/SNS |
| Triplet | AirTAC/SNS |
| Intermediate relay | Omron, Japan |
| Solid-state relay | Schneider |
| Power panel | Taiwan |
| Electric wire | Chinese |
| Emergency stop switch | Schneider, French |
| Button switch | Schneider, French |
| Proximity switch | Omron, Japan |
| Rotary switch | Schneider |
