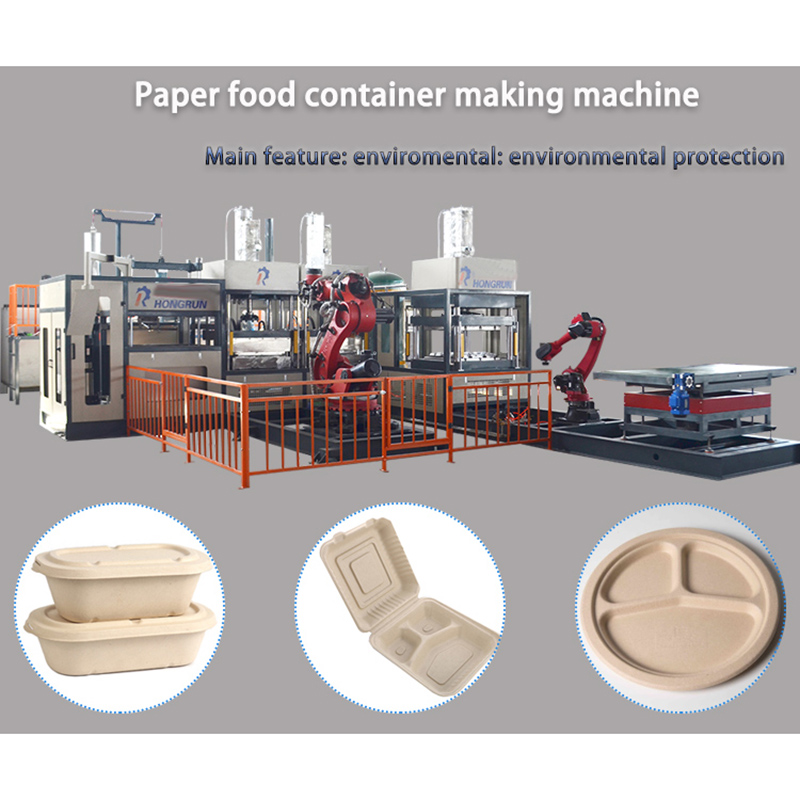

Automatic paper food container making machine
Inquire NowDescription

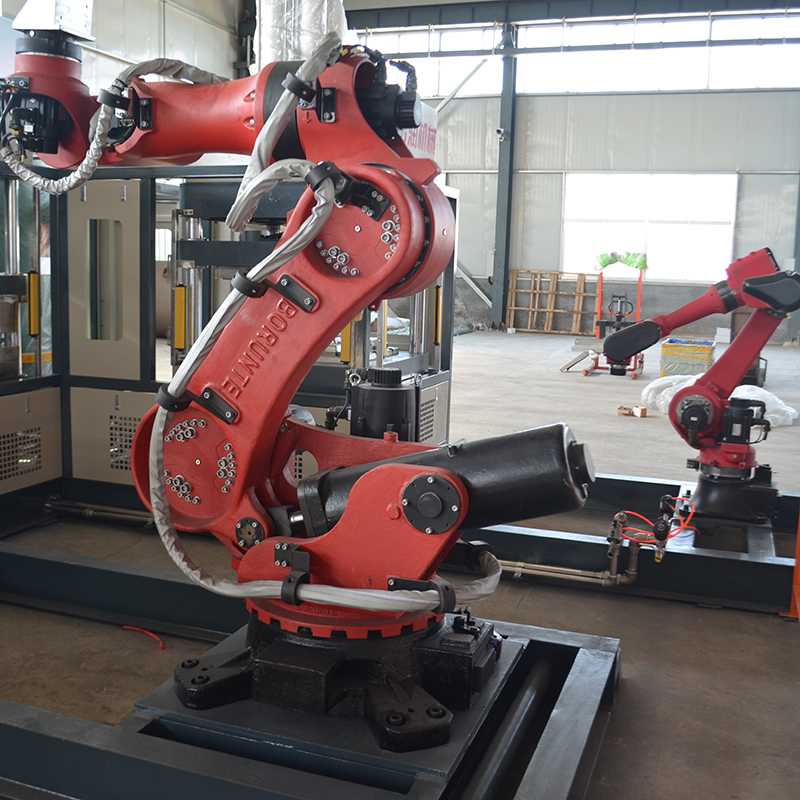

The Automatic Paper Food Container Making Machine is a state-of-the-art solution designed for the efficient production of paper food containers. This fully automatic machine integrates four crucial processes: forming, drying, shaping, and edge cutting, ensuring a streamlined and cost-effective manufacturing process. Equipped with robotic arms, it enhances operational efficiency by reducing labor costs while promoting environmental protection through sustainable practices.
The machine features a robust forming unit made of stainless steel, providing durability and reliability. Additionally, the drying and hot-press unit is equipped with advanced insulation and heating technologies, ensuring high-quality production results. The edge cutting unit utilizes a high-strength steel template and a precision stainless steel knife sourced from Japan, guaranteeing clean and accurate cuts for the final product.
Specifications
| Feature | Details |
|---|---|
| Forming Unit | Template Size: 880 x 880 mm, Minimum Closing Height: 120 mm, Lifting Stroke: 400 mm |
| Drying & Hot-Press Unit | Template Size: 820 x 820 mm, Maximum Pressure: 28T, Minimum Closing Height: 140 mm, Lifting Stroke: 450 mm |
| Edge Cutting Unit | Pressure Range: 40~73T, Stainless Steel Knife from Japan |
| Heating Method | Full Electric Heating (Power: 64 kW) |
| Control System | PLC + Touch Screen Control |
| Motor Power | 1.5 kW |
| Production Efficiency | 19-30 seconds/die (depending on the product) |
| Product Size Range | Height < 80 mm, Thickness < 1.5 mm |
Additional Information
Remarks:
- All working units are equipped with Light Curtain Sensors.
- All parts in contact with water, including slurry tanks and pipes, are made of stainless steel.
