Automatic piston filling machine
Inquire NowDescription

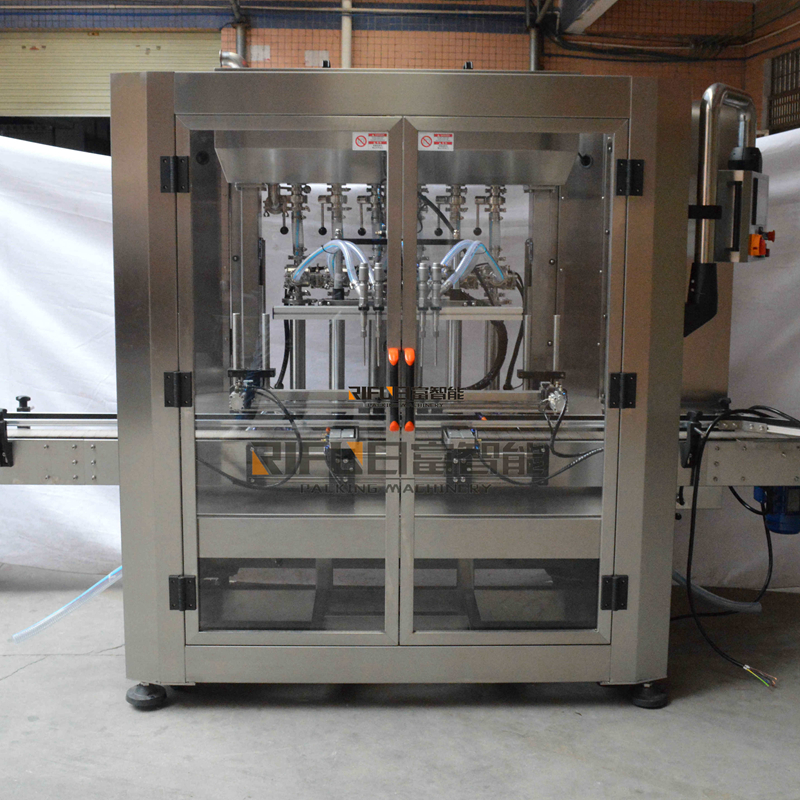

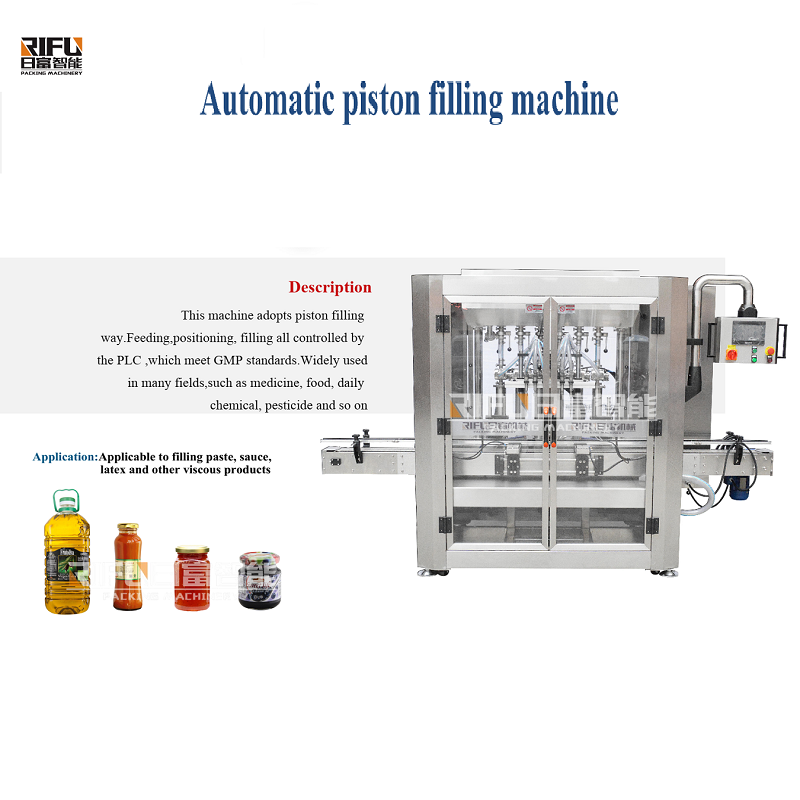

The Automatic Piston Filling Machine is designed for precision and efficiency in various industries, including pharmaceuticals, food production, daily chemicals, and pesticides. This innovative machine utilizes a piston filling method, with all operations—feeding, positioning, and filling—controlled by a PLC system, ensuring compliance with GMP standards. It is versatile enough to handle a wide range of viscous products such as pastes, sauces, and latex.
Specifications
| Model | Filling Range | Filling Speed (BPH) | Accuracy |
|---|---|---|---|
| RF-2L | 100-1000ML | 480-600 | ±1% |
| RF-4L | 200-2000ML | 960-1200 | |
| RF-6L | 300-3000ML | 1440-1800 | |
| Voltage/Power | Air Pressure | Hopper Capacity | Weight |
| 1.5KW/220V | 0.6-0.7KG/CM² | 80L | 350KG |
| 2.2KW/220V | 120L | 600KG | |
| 2.5KW/220V | 150L | 700KG | |
| Dimension (mm) | Bottle Height Range | Bottle Width Range | |
| 2000*1300*2100 | 80-180mm (Can be customized) | 60-100mm (Can be customized) |
Additional Information
With its robust design and customizable options, this machine is an ideal choice for manufacturers looking to optimize their filling processes. Considerations for air consumption and specific bottle dimensions can be tailored to meet individual production needs.
