Automatic roof panel stacker for roll forming machine roofing sheet making machine
Inquire NowDescription
The Automatic Roof Panel Stacker is an advanced solution designed for roll forming machines, specifically for roofing sheet and clay tile production. This machine simplifies the stacking process, enhancing efficiency and productivity in manufacturing environments. With a robust design and high-end features, it caters to the needs of modern roofing sheet manufacturers.
Key Advantages:
- Factory direct supply price.
- Over 10 years of export experience.
- Global customer base spanning 34 countries.
- Professional research team capable of custom machine designs.
- High-end and high-grade design.
- Free technical support and accessories supply.
Specifications
| Parameter | Details |
|---|---|
| Run-out Motor Power | 0.75KW |
| Max Speed | 36m/min |
| Max Stacking Length | 6m |
| Max Stacking Thickness | 300mm |
| Max Stacking Weight | 1 ton |
| Computer Control System | PLC |
| Pneumatic System | Air pump (active air source) user equipment |
| Delivery System | Reducer bearing delivers material automatically |
| Store Table | To store products |
| Movement Capability | Can move left to right by reducer |
| Electric Control System | Deliver and stack automatically |
Additional Information
Packaging & Shipping: The main machine is nude, while the computer control box is packed with a wooden frame.

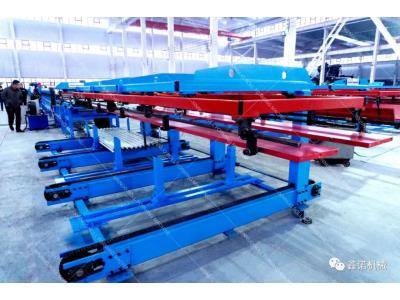

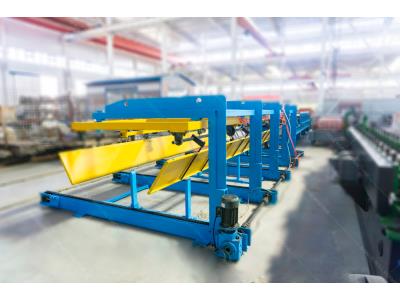

Product Pictures:
