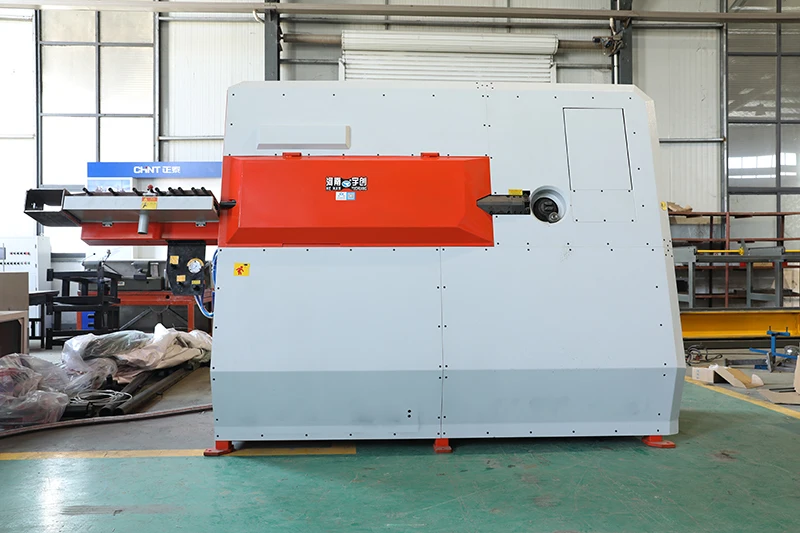

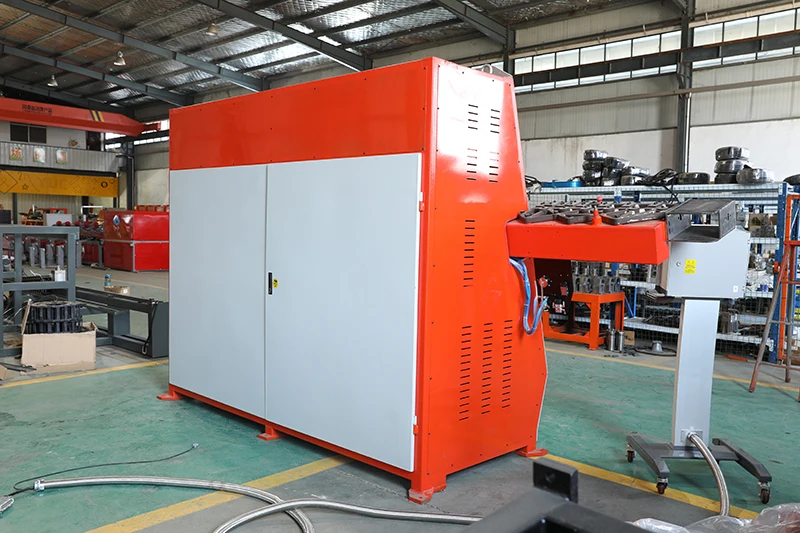

Automatic stirrup bender machine
Inquire NowDescription
The Automatic Stirrup Bender Machine is a cutting-edge CNC-controlled device designed for the construction industry and rebar manufacturing enterprises. This advanced machine utilizes a servo system to automate the processes of elastic straightening, stirrup bending, and cutting of steel wire rods, bars, and rebars, ensuring precision and efficiency. Its user-friendly interface and high degree of automation make it a vital tool for modern construction sites, enhancing productivity and reducing labor costs.
Application: This machine is widely used in the construction industry for processing steel wire rods, steel bars, and steel rebars, making it an essential asset for any rebar manufacturing facility.
Specifications
| Attribute | Details |
|---|---|
| Production Capacity | Single Wire Diameter: 8-16mm Double Wire Diameter: 8-12mm |
| Max Bending Angle | 180° |
| Central Mandrel Diameter | φ20-30mm |
| Max Pulling Speed | 110m/min |
| Max Bending Speed | 1100 pics/h |
| Average Electric Power Consumption | 5kw/h |
| Rated Power (3 Servo Motors) | 27kw + 16.5kw + 2.3kw |
| Brake Motor | 4kw |
| Air Pump Motor | 4kw |
| Voltage | 380V |
| Working Environment Temperature | -5~40°C |
| Overall Size | 3500*900*2150mm |
| Gross Weight | 2.89T |
Additional Information
This machine is equipped with an automatic wire feeding system and features a moveable air compressor design for better cooling and easy transportation. Its patented split multi-blade design reduces consumption costs, while the large storage capacity allows for the saving of up to 500 geometric graphics. The intelligent fault identification alarm system enhances maintenance convenience, ensuring high operational reliability.
