OEM ODM Automatic welder arc welding machine mig mag welding machine china
Description

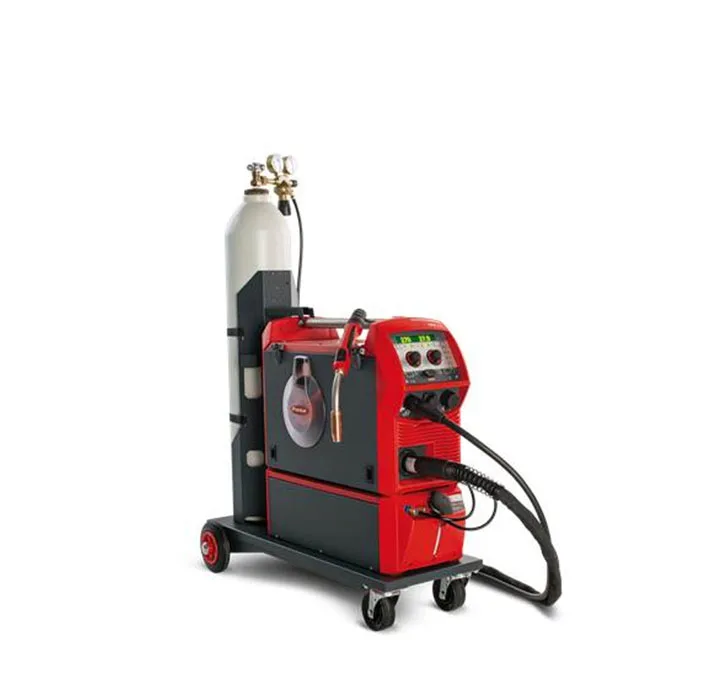

The Automatic Welder Arc Welding Machine is a state-of-the-art MIG/MAG welding solution designed for precision and efficiency. Engineered to perform at currents of 320A, 400A, 500A, and 600A, this machine embodies cutting-edge technology and innovative design principles, enhancing the user’s welding experience. Its advanced features include communication programming for seamless interaction with robotic systems, a central WELDCUBE server for monitoring production, and intelligent identification for safe component connectivity.
With the TPS/i Robotics system, this welder ensures rapid integration with various robotic components, making it adaptable for diverse welding applications. Whether you’re a professional welder or working in an industrial setting, this machine is engineered for the future of welding, boasting flexible processes and a user-friendly graphical interface.
Specifications
| Specification | Details |
|---|---|
| Voltage | 3x400V |
| Open Circuit Voltage | 57 V |
| Power Supply Voltage Tolerance | +15%/-15% |
| MIG/MAG Working Voltage | 14.2 – 27.5V |
| Power Frequency | 50/60Hz |
| TIG Working Voltage | 14.1 – 20.8 V |
| Power Fuse Protection | 16 A |
| Electrode Manual Welding Working Voltage | 20.4- 30.8 V |
| Maximum Effective Input Current | 9.7 A |
| Protection Level | IP 23 |
| Rated Maximum Input Current | 15.3 A |
| Cooling Type | AF |
| Power Factor | 0.99 |
| Size (L x W x H mm) | 687 x 276 x 445 |
| Size (L x W x H inch) | 27.0 x 10.9 x 17.5 |
| MIG/MAG Connection Current Range | 3- 270 A |
| Weight (kg) | 33.1 |
| TIG Splicing Current Range | 3- 270 A |
| Weight (lb) | 73 |
| Electrode Hand Soldering Current Range | 10- 270A |
| Standardity | CE |
| Duty Ratio | 10 min / 40 °C (104 °F) 40 % d.c. at 270A 60 % d.c. at 220A 100 % d.c. at 190A |
| Safety | S |
Additional Information
- Flexible and adjustable welding processes tailored to individual requirements.
- Centralized upgrade package for system enhancements without additional hardware.
- Improved operation and communication between users and the machine.
