Description

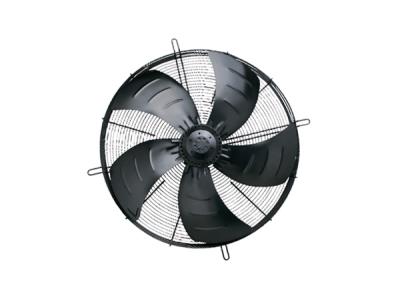

The Axial Flow Fan AC YWF500 is designed for efficiency and longevity, making it the ideal choice for various industrial and commercial applications. This compact axial fan features a professional design with fine process control, ensuring easy installation and low noise operation. With a remarkable service life, it is engineered to operate continuously, providing reliable airflow when you need it most.
Key Features:
- Compact structure for versatile installation
- Professional design enhances performance
- Easy installation process
- Efficient operation with low noise levels
- Long service life for durability
The fan blades are crafted from high-quality coated sheet steel and equipped with a robust external rotor motor. Suitable for a variety of environments, the fan is rated for protection against dust and water (IP54/IP44). It also meets UL, CE, and CCC approval standards, ensuring safety and reliability.
Specifications
| Attribute | Details |
|---|---|
| Diameter of Fan Blade | 500 mm |
| Material |
Guard Grille: Steel, phosphated and coated in black plastic Wall Ring: Sheet steel, re-galvanised and coated in black plastic Blades: Sheet steel Rotor: Coated in black plastic |
| Number of Blades | 5 |
| Direction of Rotation | Counter-clockwise (S), Clockwise (B) |
| Type of Protection | IP54 or IP44 |
| Approvals | UL, CE, CCC |
| Insulation Class | B or F |
| Mode of Operation | Continuous operation (S1) |
| Bearings | Maintenance-free ball bearings |
| Motor Protection | Without TOP, TOP wired internally |
| Cable Exit | Lateral |
| Protection Class | I |
Additional Information
For more details on installation methods, please refer to the provided documentation.
