B SERIES SEWAGE PUMP 0.75-1.5kW 2P
Inquire NowDescription
The B Series Sewage Pump is engineered with a robust channel impeller specifically designed to handle sewage efficiently. Its unique wide channel design minimizes the risk of clogging from solids, making it an ideal solution for various applications, including:
- Wastewater discharge in industries, shopping malls, hospitals, and hotels.
- Domestic sewage and storm-water drainage for urban areas, parking lots, and municipal engineering projects.
- Sewage discharge for sewage treatment plants and farms.
- Pumping muddy water and lye from construction sites and mines.
- Pumping clean water for agricultural and aquaculture uses.
With a robust construction, this pump is suitable for diverse environments, ensuring reliable operation even under tough conditions.

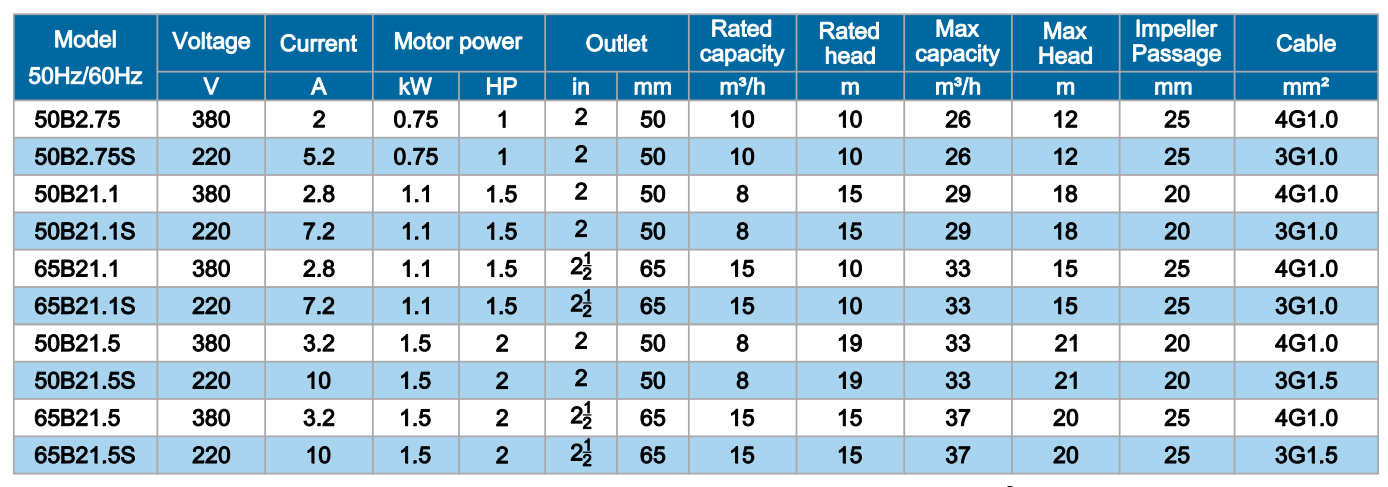

Specifications
| Attribute | Details |
|---|---|
| Insulation Class | F |
| Protection Class | IP68 |
| Starting Method | Reduced-voltage starting |
| Water Temperature | Up to 40℃ |
| pH Level | 6 – 10 |
| Density of Liquid | 1.3 g/cm³ |
| Power Supply |
|
| Capacity | Up to 860 m³/h |
| Head | Up to 44 m |
| Maximum Immersion Depth | 20 m |
| Cable Length | 8 m |
