Description

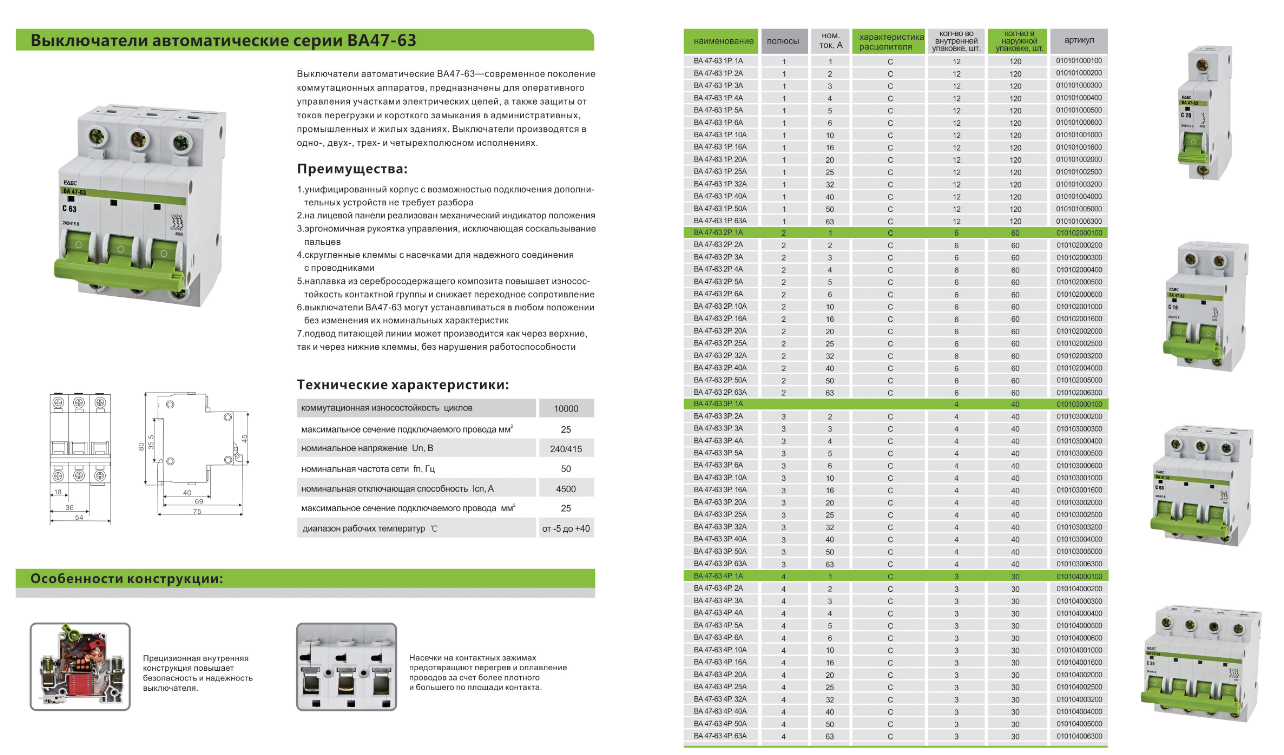

The BA47 MCB (Mini Circuit Breaker) is designed to safeguard lighting and motor distribution systems from overloads and short-circuits. With its robust 6kA breaking capacity, this circuit breaker ensures reliable protection in various electrical applications. Available in multiple configurations, including 1 pole, 2 pole, 3 pole, and 4 pole options, it caters to a wide range of installation needs. The BA47 series is engineered for rated voltages of 230V/415V and operates seamlessly at both 50Hz and 60Hz frequencies.
Specifications
| Model | BA47 Series |
|---|---|
| Rated Voltage | 230V/415V |
| Rated Frequency | 50/60Hz |
| Rated Current | 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A |
| Curve Type | B Type, C Type, D Type |
| Breaking Capacity | 6 kA |
Additional Information
- Ideal for both lighting and motor distribution systems.
- Provides essential protection against electrical faults.
