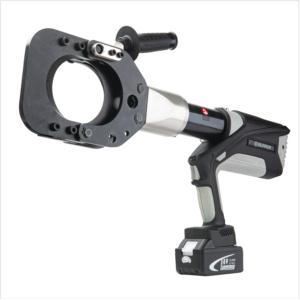

Battery cutting tool

Inquire Now

Description

The Battery Cutting Tool is an innovative and powerful device designed for precision cutting in various applications. Engineered with a microcomputer control system, it automatically detects pressure during operation, ensuring double safety protection. The tool features an OLED display that provides real-time feedback on working times, battery power, and pressure levels, enhancing user experience and efficiency.

With a dual piston pump mechanism, the blade approaches the cable rapidly, followed by a slow working motion for accurate cuts. Its head can rotate 180 degrees, allowing access to tight corners and hard-to-reach areas. The ergonomic design, complete with a non-slip rubber grip, optimizes center of gravity for ease of use, making it suitable for both professionals and DIY enthusiasts.

Additional safety features include automatic pressure release upon reaching maximum output, along with audible alerts for low battery and pressure deviations. A built-in temperature sensor prevents overheating, automatically halting operation if temperatures exceed 60°C, ensuring durability and reliability in demanding environments.

Specifications

Attribute Details
Rated Pressure 50KN
Cutting Range Prohibited to cut chilled steel and piano wire
Steel Rope φ20mm
Mild Iron Rod φ13mm
Rebar φ14mm
Cu/Al Cable φ20mm
Armored Cable φ20mm
ACSR φ21mm
Steel Wire φ20mm
Stroke 26mm
Hydraulic Oil Shell Tellus T15# S2V HV15 about 60ml
Ambient Temperature -10~40℃
Battery Voltage DC 18V, 1.5Ah
Charging Voltage AC 100V~240V; 50~60Hz
Charging Time Approx. 30 mins
Weight 3.1kg (with battery)
Size of Tool 119 x 408 x 75mm
Accessories
  • Battery: 2 pcs
  • Charger: 1 pc
  • Sealing Ring of Cylinder: 1 set
  • Sealing Ring of Safety Valve: 1 set

Additional Information

This Battery Cutting Tool is ideal for cutting various materials, making it a versatile addition to any toolkit. For optimal performance, ensure that the tool is used within the specified temperature range and that the battery is charged as needed. Always follow safety guidelines to prevent accidents and ensure longevity of the device.
