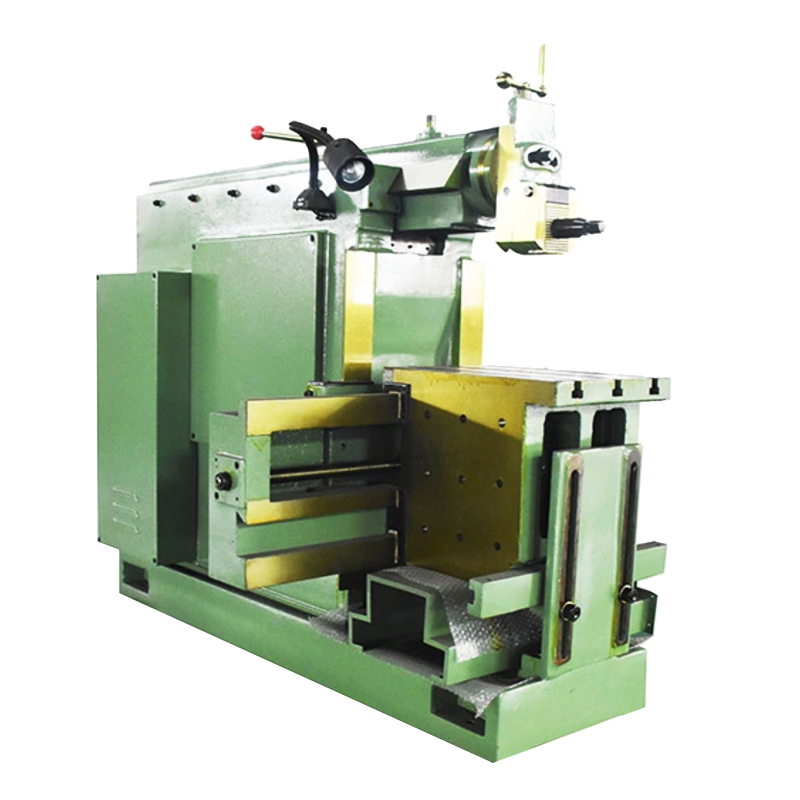

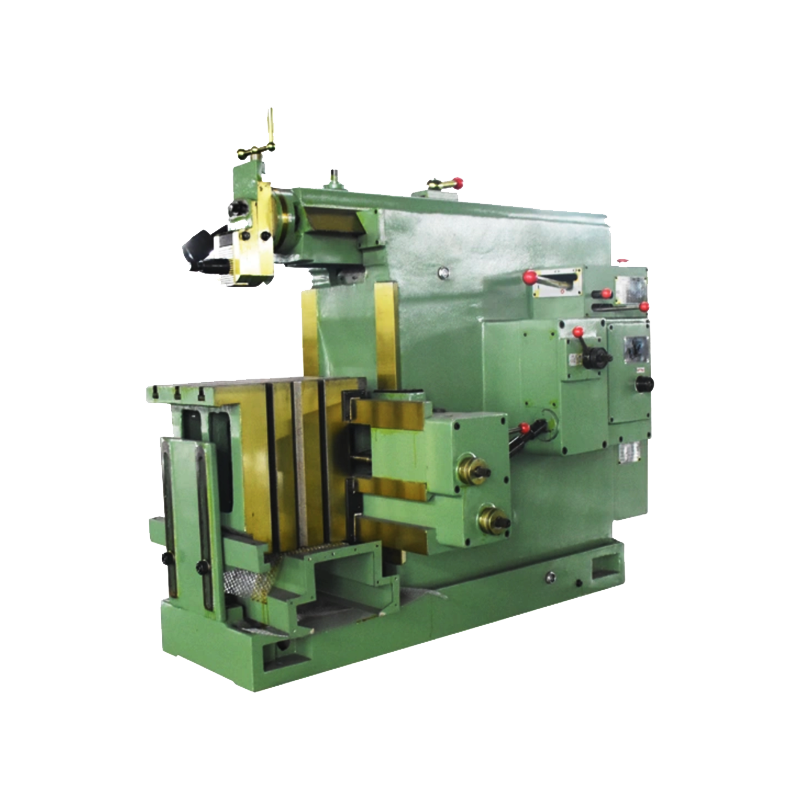

BC6050 Planer Horizontal Shaper Machine
Inquire NowDescription
The BC6050 Planer Horizontal Shaper Machine is a versatile mechanical shaping solution designed specifically for metal shaper planer tools. Engineered for efficiency, this machine features a highly adjustable tool post that allows for a wide range of angles in the vertical plane, enabling precise and controlled shaping. It offers manual feeding options for greater flexibility in tool operations, making it an economical choice for slotting and shaping tasks. The worktable supports both cross and vertical feeding, particularly suitable for swallow tail and channel machining. Ideal for single piece or small batch production, the BC6050 combines functionality with robust design to meet the needs of various machining applications.
Specifications
| Specification | BC6050 | BC6065 | |
|---|---|---|---|
| Max. Shaping Length (mm) | 500 | 650 | |
| Max. Horizontal Movement of the Table (mm) | 525 | 630 | |
| Max. Distance Between the Ram Bottom and Table (mm) | 370 | 380 | |
| Max. Vertical Movement of the Table (mm) | 270 | 315 | |
| Dimensions of Table Top (L×W) (mm) | 440×360 | 660×400 | |
| Max. Stroke Length of the Tool Head (mm) | 120 | 120 | |
| Max. Swivel Angle of the Tool Head (°) | ±60° | ±60° | |
| Max. Section of Tool (W×T) (mm) | 20×30 | 20×30 | |
| Number of Ram Reciprocation per Minute (NO/min) | 14-80 | 14-80 | |
| Range of Table Feed | Horizontal | 0.2-0.25, 0.08-1 | 0.2-0.25, 0.08-1 |
| Vertical (mm/rpm) | |||
| Speed of Rapid Travel of Table | Horizontal | 0.95, 0.38 | 0.95, 0.38 |
| Vertical | |||
| Width of T-Slot for Center Positioning (mm) | 18 | 18 | |
| Power of the Main Motor (kW) | 3 | 3 | |
| N.W/G.W (kg) | 1650 | 2200 | |
| Overall Dimensions (L×W×H) (mm) | 2160×1070×1194 | 2382×1210×1504 |
Additional Information
- Suitable for small batch production and single piece machining
- Economical machining solution for slotting and shaping
- Manual feeding option enhances operational flexibility
