Description
The Belt Conveyor Roller is a crucial component designed to enhance the efficiency of belt conveyor systems. With a commitment to high precision and steady performance, this return idler roller is engineered for long service life and optimal safety performance. It supports the weight of the conveyor belt and the materials being transported, ensuring smooth operations. Its robust design not only maximizes durability but also facilitates seamless transitions within conveyor systems.
Specifications
| Attribute | Details |
|---|---|
| Model NO. | Steel roller |
| Diameter | 89-159mm |
| Length | 190-1500mm |
| Material | Carbon steel |
| Seal | Multiple labyrinth seal |
| Bearing type | Deep Groove ball bearing |
| Guarantee | 12 months |
| Color | Customized |
| Certificate | ISO, CE |
| Advantages | Waterproof, dustproof, smooth running, no noise, rotational resistance, axial float, shaft radial play |

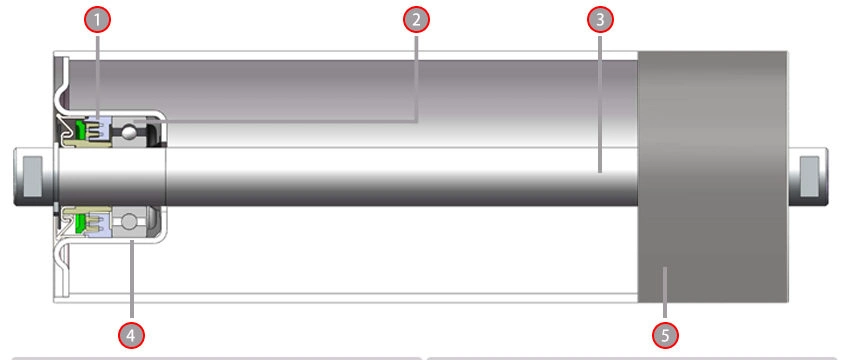

Additional Information
- Seal Assembly: Made of nylon with a non-contact labyrinth seal structure for effective waterproof and dustproof performance.
- Bearing: Features a special C3 clearance grade deep groove ball bearing, permanently sealed with lithium base grease for maintenance-free operation.
- Shaft: Precision-engineered from cold drawn round steel, ensuring minimal axial displacement.
- Bearing Housing: Constructed with multi-stage precision automatic pressing for high accuracy in bearing and sealing positions.
- Shell: Utilizes special ratio-frequency welded pipe for reduced bending and ellipticity, ensuring concentricity and minimized rotation resistance.
