Best Selling Electric Air Conditioner/Fan refrigerator Solid State Relay CUL Certification
Inquire NowDescription

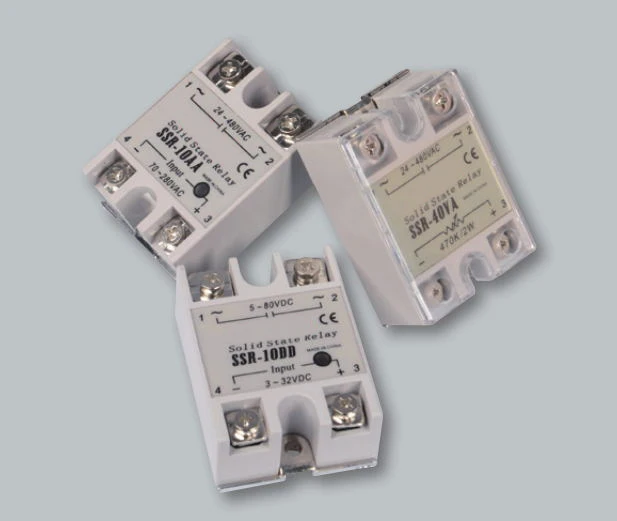

Best Selling Electric Air Conditioner/Fan Refrigerator Solid State Relay is designed for reliable and efficient control of air conditioning and fan systems. This high-performance relay features a CUL certification, ensuring safety and quality. With its capability to handle load currents ranging from 10A to 100A and voltage levels between 24VAC and 480VAC, this solid-state relay is versatile for various applications. The SSR-90DA model incorporates advanced features such as a control voltage range of 3-32VDC, low on voltage, and minimal off leakage current, making it an essential component for any modern cooling system.

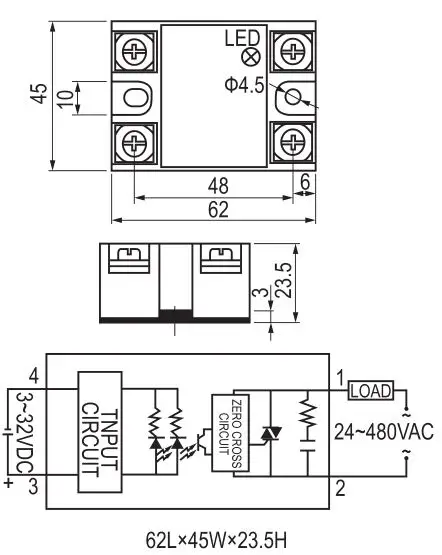

Specifications
| Attribute | Details |
|---|---|
| Load Current | 10A, 15A, 20A, 25A, 30A, 40A, 60A, 75A, 80A, 90A, 100A |
| Load Voltage | 24~480VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC4-25mA |
| On Voltage | ≤1.5V |
| Off Leakage Current | ≤2mA |
| On-off Time | ≤10ms |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000MΩ/500VDC |
| Ambient Temperature | -30℃~+75℃ |
| Mounting Methods | Bolting |
| Weight | 132g |
Additional Information
This solid-state relay is equipped with an LED indicator for operational status, which provides visual assurance during use. It is ideal for applications requiring robust performance and reliability. Additionally, the relay undergoes strict self-inspection and testing procedures to ensure quality before packing.
