BH-600-305 Arch Roof Span Forming Machine
Inquire NowDescription
The BH-600-305 Arch Roof Span Forming Machine is a versatile and efficient solution designed for direct production on construction sites. This machine minimizes costs while maximizing productivity, making it ideal for mid-scale and small-scale projects such as factories, warehouses, garages, gymnasiums, exhibition centers, cinemas, and theatres. Featuring a robust trailer design equipped with high-quality axles akin to car axles, the BH-600-305 ensures durability and longevity compared to competitors’ straight shaft models.
Specifications
| Attribute | Details |
|---|---|
| Production Type | BH-914-610 |
| Dimension | 8900mm X 2230mm X 2300mm (Single Axles & 4 Tires) |
| Total Weight | About 10 Ton |
| Feeding Width | 600mm |
| Effective Width | 305mm |
| Using Rate | 50.8% |
| Thickness | 0.5-1.5mm |
| Groove Depth | 109mm |
| Bending Leaf | 10mm Thickness, Processed By CNC |
| Cutting Blade | 12CrMov Material, Heat Treatment |
| Cutting Type | Mechanical/Hydraulic Cutting |
| Forming Type | Roll-Formed and Length-Set Cutting |
| Controlling System | PLC |
| Power | Total Motor Power: 15.2KW Roll Forming Main Motor Power: 5.5KW Bending Power: 3.0KW+1.5KW Cutting Power: 3.0KW |
| Seaming Power | 1.1KW+1.1KW |
| Roller Material | 45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating |
| Shaft Material | 45# High-Quality Steel, Galvanized |
| Stand of Molding | 13+1 Steps |
| Working Speed | Forming Part: 15m/min Bending Part: 13m/min Seaming Part: 6m/min |
| Suitable Project | 4~28m |
| De-Coiler | Inner-Diameter of Coil: 450mm ~ 650mm Max Width of Coil: 600mm ~ 620mm Load: 10Ton |
Additional Information

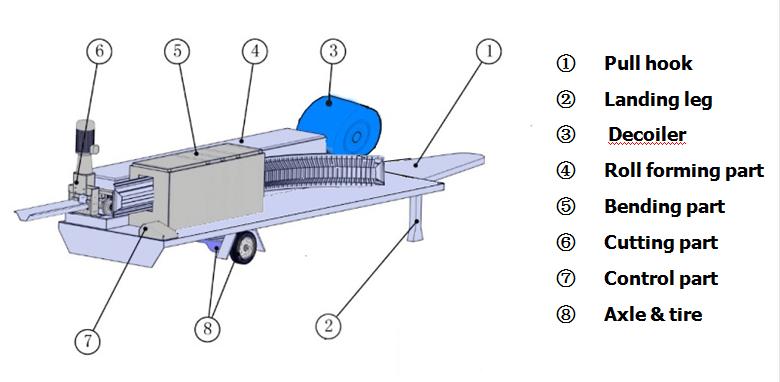

Equipment composition

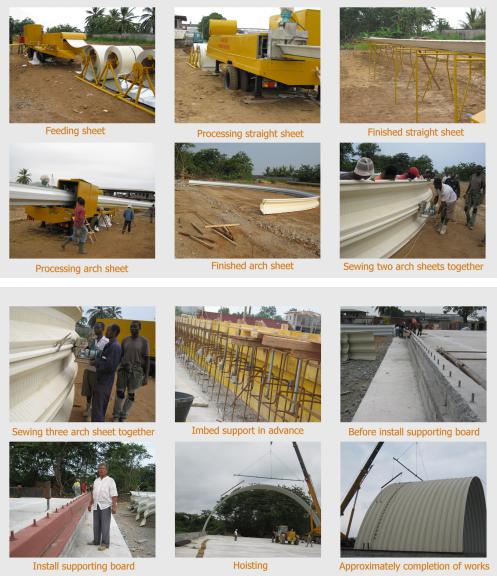

Project pictures:

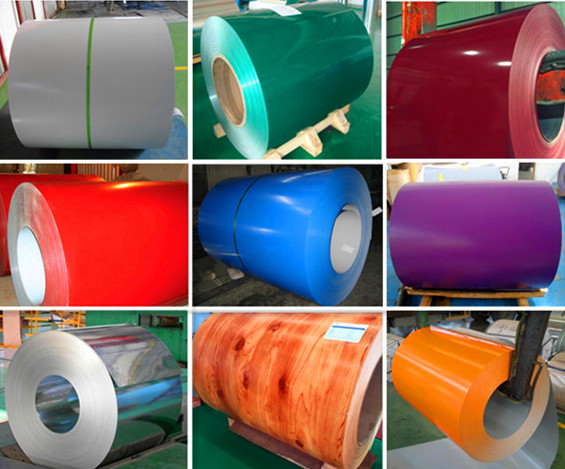

Raw material
