Description

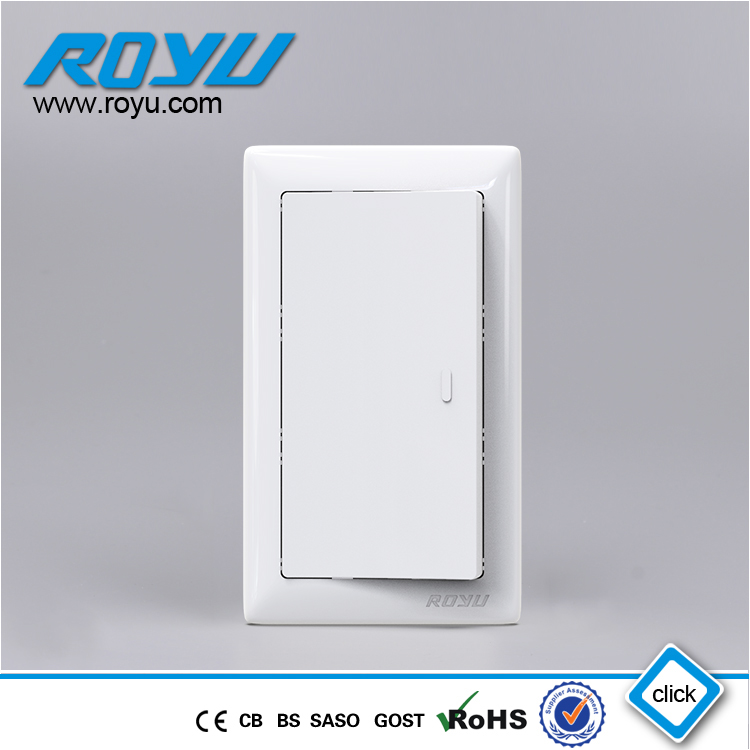

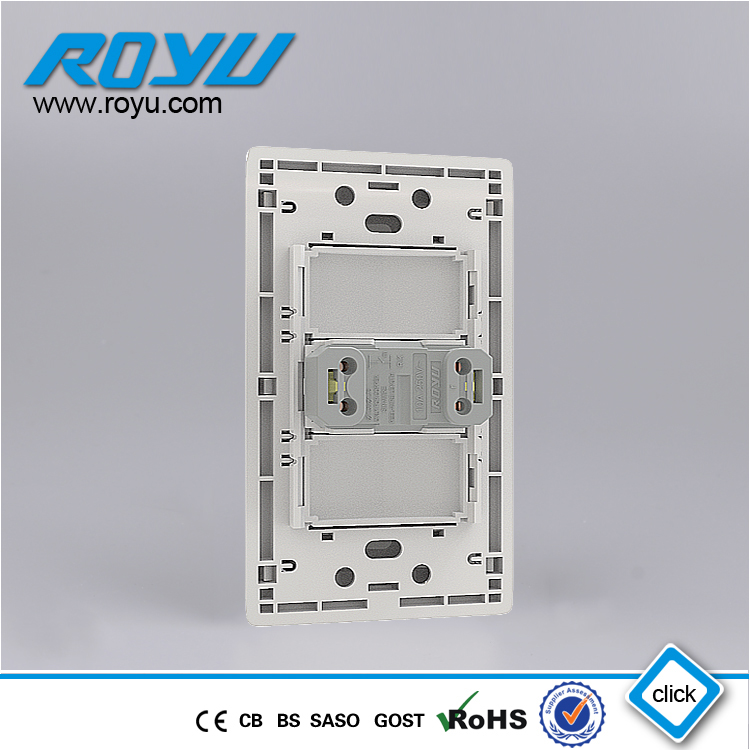

The Big Button Switch is designed for efficiency and ease of use, featuring contacts made from high-quality silver alloy material. This ensures excellent performance against electric arc and melt weld, enabling over 40,000 on-off operations. The socket is crafted from phosphor bronze, known for its exceptional electrical conductivity and lasting elasticity, making it a durable choice for various electrical applications.
Specifications
| Attribute | Details |
|---|---|
| Outline size | 120 x 74 x 32 mm |
| Installation size | 60 mm |
| Material | PC POM PA66 |
| Copper | QSn5.6-0.1 H62 Hpb59 |
Additional Information
Switch Specification
| Specification | Value |
|---|---|
| Lifetime | ≥40,000 |
| Heat-resistant | 100 °C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
Socket Specification
| Specification | Value |
|---|---|
| Lifetime | ≥5,000 |
| Heat-resistant | 100 °C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
| Electric Strength | 2000 V ~1 min |
